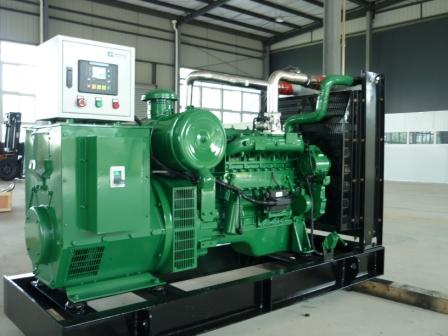

Model Number: 400GF-ZC-AMD
Output Type AC Three Phase
Speed 1500 or 1800
Frequency 50 Hz or 60Hz
Rated Power 400kw
Rated Voltage 220V or 380V
Rated Current 721.7
Engine Model: TBG620V8
Rated Power: 400KW
Rated Speed: 1500r/min or 1800r/min
Rated Frequency: 50Hz or 60Hz
Rated Voltage: 220/380 or 110/220
Rated Current: 721.7
Rated Power Factor: 0.8
Supply Connection: 3Phases 4 Lines
Start Method: 24VDC Electric Start
Fuel Control: Oxygen sensor closed loop control
Ignition Control: Electronically controlled independent cylinder high-energy ignition
Speed Control: Electronic Speed governing
Fuel Consumption: 0.53 Nm3/Kw. H
Cooling: Water cooling
Net Weight: 3780 Kg
Size: 4600mm× 1900mm× 2650mm
More Technology specifications please inquiry us with out any hesitates.
AMICO is professional maunfactory of Gas Generating Set.
The products can use the CNG, LNG, LPG and Biogas.
AMICO Technologies option the Vehicular gas engines on the generator set with the ECI control system for the fuel and air.
The noise as the same as the gas truck and bus, and the Emission get the standard of Euro 4.
The powers are strong for long time service.
The generator control system is by automatic, only need the operator one key to run or stop the machine, completed to control the engines and alternator.
The LED display could monitor the running status of the engine and alternator, if the machine was at fault, the control system will provide the Fault Code and Solutions on LED display.
