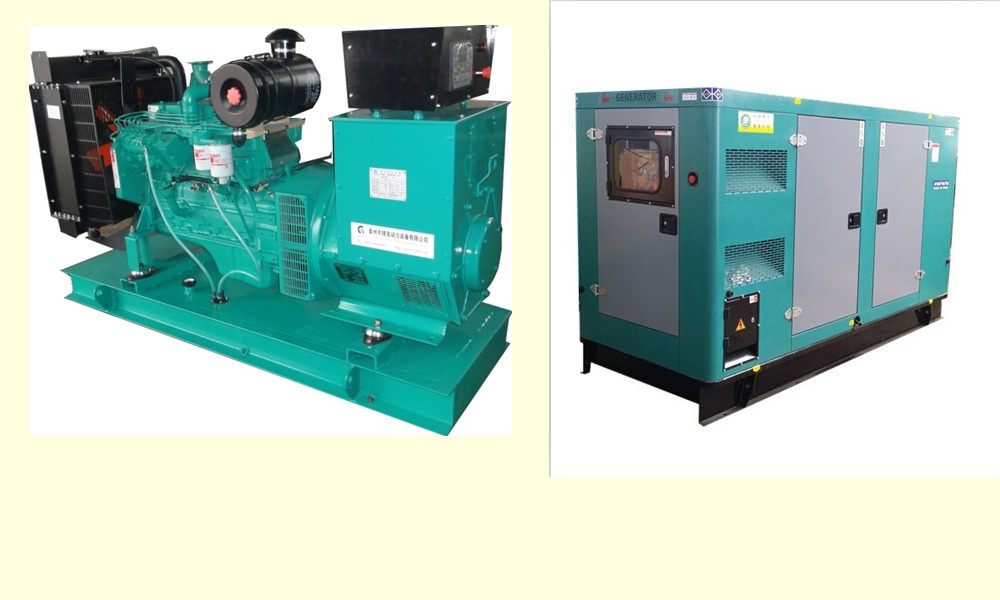

1, 400kw 50hz Open Type Diesel Generator
Series 135 Diesel Engine is the most widely used type in domestic market .It is mature in technology ,excellent in quality ,reliable in performance and easy for spare pares purchase ,wide range of power as well. Our company select national famous recommend products, such as Wan Ni Brand Engine of Wuxi Power Machine Factory ,coupling with KAIJIELI altermatic will be an ideal and reliable power
Diesel Generator Set Specification |
Generator Set Model | FF-500GF |
Rated Power | 400kw/500KVA |
Rated Voltage | 400/230V |
Output Frequency | 50Hz |
Power Facts | 0.8 |
Starter Motor | DC 24V |
Voltage Method | AVR |
Size (Silent type) | 4700*2100*2450mm |
Weight(kg) | 2300kg |
GB/T2820,GB/T12786-1991 |
Engine Specification |
Manufacture | Shangchai |
Engine Model | 12V135BZLD |
Rated Rpm | 1500 rpm |
Cylinder arrangement | 12in line ,Turbo |
Cooling System | Water-cooled, 40°C Radiator As Standard, 50°C Is Optional |
Governor Type | Electronic |
Starter Motor | DC 24V |
Bore * Stock | 135*150mm |
Displacement | 26.61L |
Max Back Pressure- | 1OkPa |
Fuel System |
100%( Prime Power) Load: | 208g/kw.h |
Oil System |
Total Oil Capacity | 58L |
Alternator Specification |
Model | HJI-400KW(Stamford made in China) |
Exciter Type | Brush less, Self-excited |
Rated Power | 400kw |
Rated Frequency | 50HZ |
Voltage(V) | 400/230 |
Phase | 3 phase 4 wires |
Insulation Grade | H |
Protection Grade | IP23 |
Voltage Regulation, Stead State | ≤±1% |
Frequency Regulation, Stead State | ≤5% |
Sudden Voltage Warp (100% Sudden Reduce) | -15%~+20% |
2,Warranty
a, One year after installation; b, 1000 running hours (accumulated); subject to the earlier one.c,The Spare parts can be provided free within one year .
c, The spare parts can be provided free within one year
3,Alternator Brand:Stamford ,Marathon ,MECC, Copy Stamford ,Faraday,and other brand .
4,Controller:DSE ,SMARTGEN
1)Automatic control panel: use Smartgen or DSE controller: with automatic start, automatic stop; disply current , voltage, frequency, power, power factor, oil temperature, water temperature, oil pressure. Automatic protection function: overload, short circuit, high water temperature, low oil pressure, oil temperature and overspeed protection function;
2)Switch: the French model high beauty technology, small size, impact resistance, large current, high sensitivity, short trnsition time, etc.
3)Function: after the power grid, the controller signal launch, 10 seconds to start the generator set (time can be adjusted 3 to 30 seconds) switch switch to power generation side. After the mains calls, controller signal downtime, delay 3 minuts downtime generator speed down.
Taizhou Fengfa Power Equipment Co., Ltd. Was founded in 2008, integrating the R&D and sale. Our company covers an area of above 2000 square meters. With our abundant experience and industrious and hardworking staff members, we can meet various requirements from different types of customers. Our production capacity amounts to 1, 000 sets per year. We are mainly engaged in diesel generator, Cummins generator, Volvo generator and our products sell well in Southwest Asia, the Middle East and Africa. We conduct strict quality inspections over each batch / product. We will try our best to serve you and hope to become one of your friends and business partners.
