Home Generator Products 400kw/500kVA Open Diesel Generator by Perkins Engine (2506C-E15TAG2)

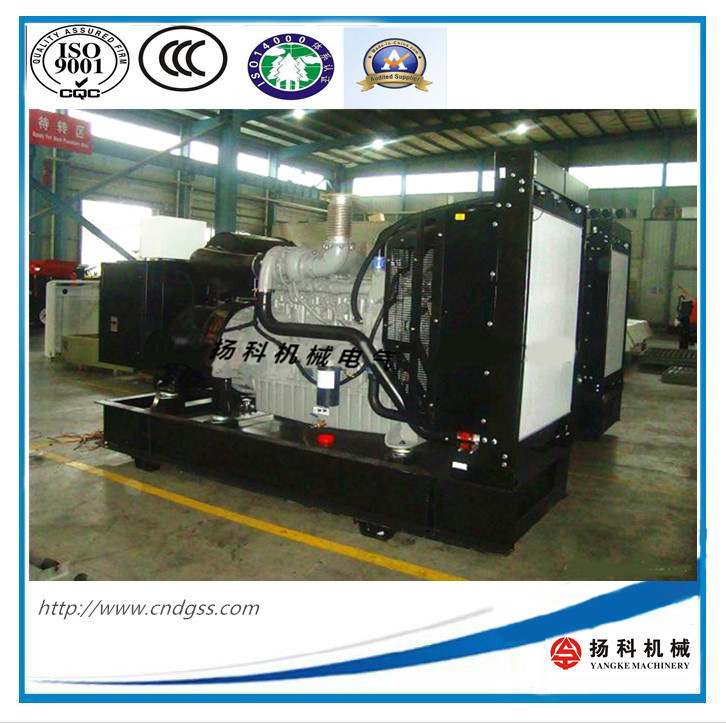

400kw/500kVA Open Diesel Generator by Perkins Engine (2506C-E15TAG2)

400kw/500kVA Open Diesel Generator by Perkins Engine (2506C-E15TAG2)
Price: US $ 10000-20000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
1.Small overall dimension
2.Energy saving & environment-friend
3.CE

1. Specification of genset
Gensets modelQSP-400GF
Rated  power(KW/KVA)412/514
Rated voltage(V)400
Rated current(A)577
Rated frequency(Hz)50
Rated Speed1500rpm
Power Factor0.8(lagging)
Silent Dimensions(mm) (L×W×H)5200*1380*2300
Net Weight(kg)5360

2. Specification of diesel engine
Engine brandPerkins
Engine model2506C-E15TAG2
Number of Cylinders6
Cylinder arrangementVertical in-line
CycleFour stroke
Air Intake SystemTurbocharged/ Air to Air
Fuel SystemDirect injection
Bore×Stroke (mm×mm)137*171
Displacement (Liter)15.2
Compression Ratio16:1
Speed GovernorElectronic
Cooling SystemForced Water Cooling Cycle
Total lubrication system capacity (L)62
Fuel Consumption at 100% Load (L/h)106
Starting MethodDC24V electrical starting




3. Specification of alternator
Alternator brandStamford
Alternator modelHCI444FS
Number of Phase3
Connecting Type3 Phase and 4 Wires
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation ClassH
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%


 Specification of control Panel(with Deepsea controller)
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of Deepsea controller:
Text based LCD display (supporting multiple languages).
True RMS Voltage, Current and Power monitoring.
Engine parameter monitoring.
Fully configurable inputs for use as alarms or a range of different functions.
Engine ECU interface to electronic engines.


Packaging & Delivery
Packaging Detail:generator standard exporting package
Delivery Detail:within 5-25working days after the deposit



 Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.


We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.



 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.





Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618952721120
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com








Prod Model: QSP-400GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 50Hz
Rated Rpm: 1500
Power: 400kw/500kVA
Cylinder No.: 6
Bore/Stroke: 137*171mm
Displacement: 15.2L
Lubricating Capacity: 62L
Fuel Consumption: 212L
Size(L*W*H Mm): 3900*1150*2080
Weight(Kg): 3690
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.

With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000kVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).

Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and ISO14001-2004.

We can provide a variety of specifications automated, automatic cut over, soundproof and mobile on high quality. The low energy consumption power set satisfies the customer's all electric power demand. We also can satisfy the user with different voltage and different frequency request, as well as networking power supply system.

Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
