Home Generator Products 400kVA Silent Diesel Generator Powered by Cummins Engine

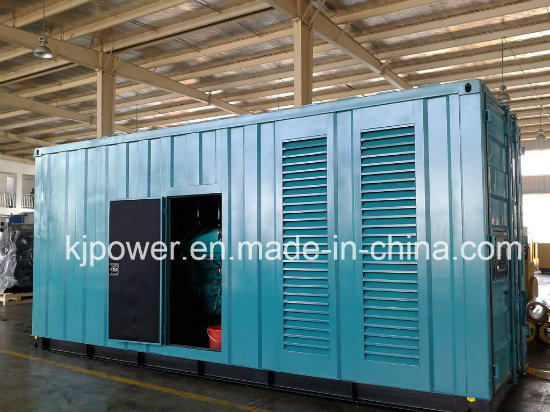

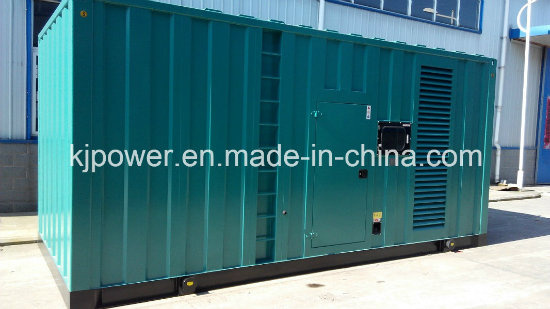

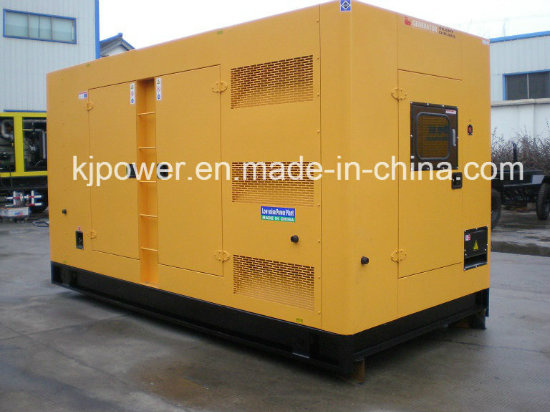

400kVA Silent Diesel Generator Powered by Cummins Engine

400kVA Silent Diesel Generator Powered by Cummins Engine
Price: US $ 20000-50000/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T

Product Description-250KVA to 1500KVA Soundproof Cummins Diesel Generator

1.Powered by Cummins Engine
2. With Stamford / Leroy Somer / Marathon Alternator
3. With CHINT / ABB MCCB & Electronic Components
4. Electric Start with Battery
5. Base Integrated Fuel Tank
6. ATS, Deepsea / ComAp / Smartgen Controller
7. Comply with ISO9001/CE
8. After-sale Services

Cummins Diesel Generators Power From 20kVA up to 1500kVA, with compacted structure and best configuration.

OEM CUMMINS Powered Diesel Generator Sets with its high reliability, low use and maintenance cost win the loyalty of many customers in the field of Army, transportation engineering system and mine industries. Established in 1919, headquartered in Columbus, Indiana, (USA) Cummins Inc. Serves customers in more than 160 countries and territories through its network of 680 Company owned and independent distributor locations and more than 5, 000 dealer locations. As the largest foreign engine investors of China, Cummins possess Chongqing Cummins Engine Co., Ltd (produce M, N, K series engine) and Dongfeng Cummins Engine Co., Ltd (produce B, C, L series engine ) and produce CUMMINS engines with globally uniform quality standards.

Control Systems

Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.

LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.

AMF Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.

ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.

Engine
*Heavy duty diesel engine
*Four stroke, water cooled
*12V and 24V stater and charge alternator
*Cooling radiator and fan
*Maintenance free battery including ract and cable
*Flexible fuel connection hoses and manual oil sump drain valve
*Exhaust silencer
Alternator
*Brushless, single bearing, flexible disc
*Insulation class: H
*Protection class: IP23
*Self-exciting and Self-regulation
Canopy
*All canopy designed with modular principles
*All metal canopy parts painted by electrostatic polyester power paint
*Soundproof design ensure that the noise level be controlled in small scope
*Convenient to lift and move
*Easy to maintenance and operate

Base Frame
*Base frame including position for forklift and crane
*Integral fuel tank
*Daily fuel tank continuously supply for 8-24 hours
*Fuel tank easy to maintain and clean
*Anti-vibration pads are flexed between engine and alternator.

Control System
*Control, monitor and protect the Generator Set including:
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge fail
*Emergency stop


Genset
Model
Prime PowerStandby PowerEngine ModelCylinderBore×Stroke         AspirationDisp.            Alternator      DimensionWeight
    KVA/KW    KVA/KW       mmL      KaiJieStamford     L×W×H(mm)kg
KJC300         275 / 220     300 / 240NT855-GA6L140×152Turbo.&Intercooled14KTFW220HCI444D2750×1100×16502400
KJ-C330   300 / 240     330 / 264NTA855-G1A6L140×152Turbo.&Intercooled14KTFW240   HCI444D2750×1100×16502500
KJ-C360   313 / 250     350 / 280NTA855-G1B 6L140×152Turbo.&Intercooled14K-TFW250HCI444ES2750×1100×16502600
KJ-C390   350 / 280     387.5 / 310NTA855-G2A6L140×152Turbo.&Intercooled14K-TFW280HCI444E2800×1100×17002900
KJ-C400   375 / 300     412.5 / 330NTA855-G46L140×152Turbo.&Intercooled14K-TFW300HCI444FS2800×1100×17003000
KJ-C420   400 / 320     450 / 360NTAA855G7A 6L140×152Turbo.&air to air cooled14K-TFW320HCI444F2900×1100×17003350
KJ-C500   450 / 360     500 / 400KTA19-G36L159×159Turbo.&Intercooled19K-TFW360HCI544C3000×1200×17503500
KJ-C550    500 / 400     550 / 440KTA19-G46L159×159Turbo.&Intercooled19K-TFW400HCI544C3200×1200×17503600
KJ-C600    563 / 450     625 / 500KTAA19-G56L159×159Turbo.&air to air cooled19K-TFW450HCI544D3200×1200×18003800
KJ-C680    600 / 480     660 / 528KTA19-G86L159×159Turbo.&Intercooled19K-TFW480HCI544E3500×1500×20004000
KJ-C688    625 / 500     688 / 550KTAA19-G6A6L159×159Turbo.&air to air cooled19K-TFW500HCI544FS 3500×1500×20004550
KJ-C825    750 / 600     825 / 660KTA38-G212V159×159Turbo.&Intercooled38K-TFW600LVI634B4200×2100×24006000
KJ-C880    825 / 660     900 / 720KTA38-G2B12V159×159Turbo.&Intercooled38K-TFW660LVI634C4500×2200×25006500
KJ-C1000    900 / 720    1000 / 800KTA38-G2A12V159×159Turbo.&Intercooled38K-TFW720LVI634D4500×2200×25007000
KJ-C1100   1000 / 800    1100 / 880KTA38-G512V159×159Turbo.&Intercooled38K-TFW800LVI634E4800×2300×25007500
KJ-C1238   1125 / 900   1237.5 / 990KTA38-G912V159×159Turbo.&Intercooled38K-TFW900LVI634F4850×2300×25008000
KJ-C1400  1250 / 1000    1375 / 1100KTA50-G316V159×159Turbo.&Intercooled50KTFW1000    LVI634G5000×2300×250012000
KJ-C1650  1400 / 1120    1500 / 1200KTA50-G816V159×159Turbo.&Intercooled50K-TFW1200PI734B5000×2300×250012500




Prod Model: KJ-C440
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine: Cummins
Alternator: Marathon, Leroy Somer, Stamford and Kaijie
Frequency: 50Hz, 60Hz for Option
Rated Voltage: 400/230V, Various Voltage Available
Controller: Deepsea, Comap, Smartgen
Function Option: ATS, AMS, Synchronization
Generator Type: Open Type/Silent Type /Container Type/Trailer Type
Quality Standard: ISO9001.CE.Soncap
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
