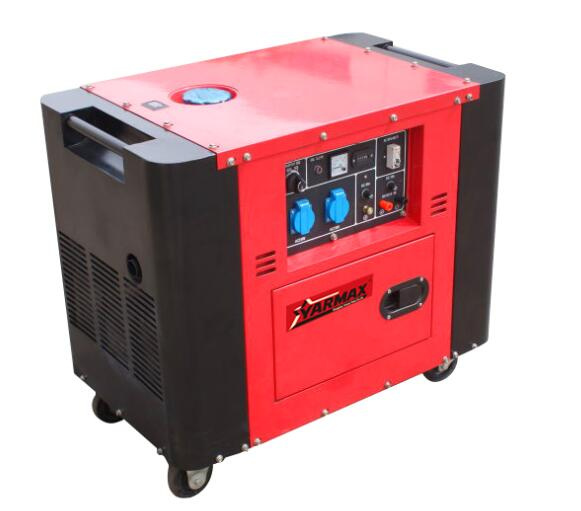

4.6kw Single Cylinder Super Silent Electric Start Diesel Generator
| Price: |
US $ 520-580piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1piece |
| Pay Type: |
L/C,T/T,D/P |
| Model | YM7000T |
| Rated frequency | 50 60 |
| Rated output(kVA) | 4.5 5.0 |
| Max. output(kVA) | 5.0 5.5 |
| Rated Voltage(V) | 230 or as requested |
| Rated current (A) | 19.6 |
| Rated rotation speed(r/min) | 3000 3600 |
| Phase NO. | Single phase or Three phase |
| Power factor(Cos Φ) | 1 |
| Insulation Grade | B |
| Pole number | 2 |
| Excitation mode | Self-excitation & constant voltage (AVR) |
| Panel Type | General Panel |
| Voltage(V) | 230 or as requested |
| Receptacle | Two receptacles |
| Connection pole | Without |
| DC12V output | Connection pole output |
| Overall dimension(L×W×H)mm | 930×530×740 |
| Dry weight(kg) | 170 |
| Working assorting weight | 185 |
| Noise level(7m)dB(A) | 62~64dB |
| Structure type | Silent type |
| Engine Model | YM186FAG |
| Engine Type | Single cylinder, vertical, four-stroke, direct injection |
| Cylinder NO.-bore×stroke(mm) | 1-86×72 |
| Displacement(ml) | 418 |
| Rated power[KW/(r/min)] | 5.7/3000 |
| Compression ratio | 19:01 |
| Rated rotation speed(r/min) | 3000 |
| Cooling system | Air cooled |
| Combustion system | Direct injection |
| Starting system | Electric starter |
| Fuel type | 0#(summer)-10#(winter)-35#(chillness)diesel |
| Lube oil brand | CD grade or SAE10W-30,15W-40 |
| Lube capacity(L) | 1.65 |
| Starting motor capacity( V-kW) | 12V 0.8kW |
| Charging generator capacity ( V-A) | 12V 3A |
| Battery capacity(v-Ah) | 12V 30-36Ah |
| Fuel consumption(g/kw.h) | ≤360 |
| Fuel tank capacity(L) | 15 |
| Continuous running time(hr) | 6 |
Changzhou Yarmax Power Co. Ltd. China established in 2007, is a professional manufacturer and exporter that is concerned with the design , development and production of generator, water pump, engine etc. We are located in Changzhou, Jiangsu Province, China , with convenient transportation access. All of our products comply with International quality standards such as ISO9001:2000 and CE, etc.
| Prod Model: |
YM6700T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Noise Level: |
62~64dB |
| Color: |
as Requested |
| Rated Frequency: |
50Hz/60Hz |
| Rated Output: |
4.5~5kw |
| Rated Voltage: |
as Requested |
| Structrure Type: |
Silent Type |
| Engine Model: |
Ym186FAG |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
AC Single Phase or AC Three Phase |
| Speed: |
3000/3600rpm |
| Excitation Mode: |
Self-Excitation & Constant Voltage (AVR) |
Yarmax Power (Changzhou) Co., Ltd. is one of the leading worldwide suppliers of Air-cooled diesel engines, Gasoline engines, Diesel generators, Gasoline generators, water pumps, Air compressors, High Pressure washers and engine powered construction machines. Our factory is located in Changzhou City, Jiangsu Province, which is easily accessible with a two-hour drive from Shanghai.
As a professional genset manufacturer and facilitator, Yarmax Power keeps improving the quality of products in controlling noise, improving fuel efficiency and lowering emissions for environmental protection. Our company is in compliance with ISO9001: 2000 standards and our products have gained CE approval issued by European Community. We have got the EPA approval from the United States.
To better serve our customers, we provide complete technical support and any other information on our engine and gensets. Additionally, we offer a 12 month or 1000 working-hour warranty. This warranty covers any product deficiency caused by raw materials or any quality problem. The warranty does not cover wearing part problems or damage caused by improper operation or maintenance.
Yarmax Power is also an OEM service provider. If you have any need for engines or generator sets, please don't hesitate to contact us. We would like to establish long-term business relationships with you.
Yarmax Power - your ideal choice
