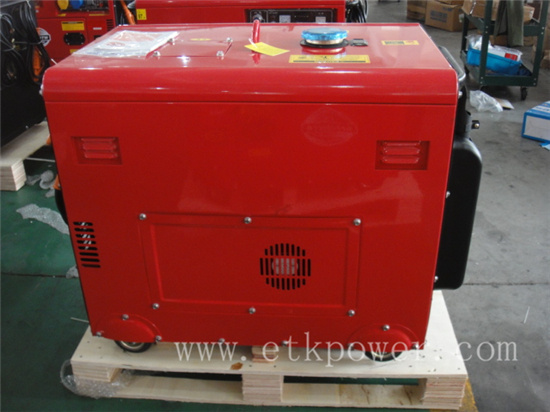

DIESEL WELDER GENERATOR SET --DWG6LN
DIESEL WELDER GENERATOR: Diesel generator and welder set DWG6LN with ETK186F(E) diesel engine, portable open type diesel generator and welder set with 4 wheels, diesel generator and welder set professional export manufacturer. Diesel engine, diesel water pump, diesel generator set, gasoline engine, gasoline generator set are also our best-selling products.
Introduction
Good quallity of diesel welder generator, Single-cylinder, vertical, 4-stroke, direct injection, air-cooled diesel engine 3000/3600rpm, max welding electric current 200A. Our factory can produce portable diesel welder generator which power is 5KW. This product can not only be used at welding work, but also can be used as a diesel generator. We have open type, semi-open type. We can supply this kind of products with steady quality and competitive price.
Advantages:
1. Diesel generator and welder set with CE
2. Skilled technicians and professional engineers
3. Every spart part supplier is chosen strictly based on excellent quality
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Standard operation / technical maintenance /manual/tool kits
7. Any questions. Pls do not hesitate to contact our salesperson
|
Model |
silent type |
open type |
|
DWG6LN |
DWG6LE |
|
Frequency(Hz) |
50/60 |
50/60 |
|
Voltage(AC)(V) |
120/240;220;230;240 |
120/240;220;230;240 |
|
Rated Power(Kw) |
2.5(4.6) / 2.7(5.0) |
2.5(4.6) / 2.7(5.0) |
|
Current(A) |
11 |
11 |
|
Power facotr(cosφ) |
1 |
1 |
|
Electric welding voltage in idle(V) |
55-65 |
55-65 |
|
Rated current for electric welding(A) |
160-180 |
160-180 |
|
Working voltage for electric welding(V) |
25-30 |
25-30 |
|
Electric welding load lasting rate |
50% |
50% |
|
Regulating rang of electric welding current(A) |
80-180 |
80-180 |
|
Engine Speed(rpm) |
3000/3600 |
3000/3600 |
|
Net weight(kg) |
165 |
116 |
|
Starting system |
Recoil manual start/optional electric start |
|
Engine model |
ETK186F(A)(E) |
ETK186F(A)(E) |
|
Type |
Single cylinder,vertical,direct injection,4-stroke,air cooled diesel engine |
|
Continuous Output(Kw) |
5.7/6.6 |
5.7/6.6 |
|
Maximum Output(Kw) |
6.3/7.34 |
6.3/7.34 |
|
Bore × Stroke(mm) |
86*70/86*72 |
86*70/86*72 |
|
Displacement(cc) |
406/418 |
406/418 |
|
Fuel Tank Capacity(L) |
15 |
15 |
|
Packing dimensions(L×W×H)mm |
950*550*770 |
785*550*635 |
|
Lube-oil Capacity(L) |
1.65 |
1.65 |
|
20FT container (pcs) |
72 |
99 |
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
Welcome to contact us
