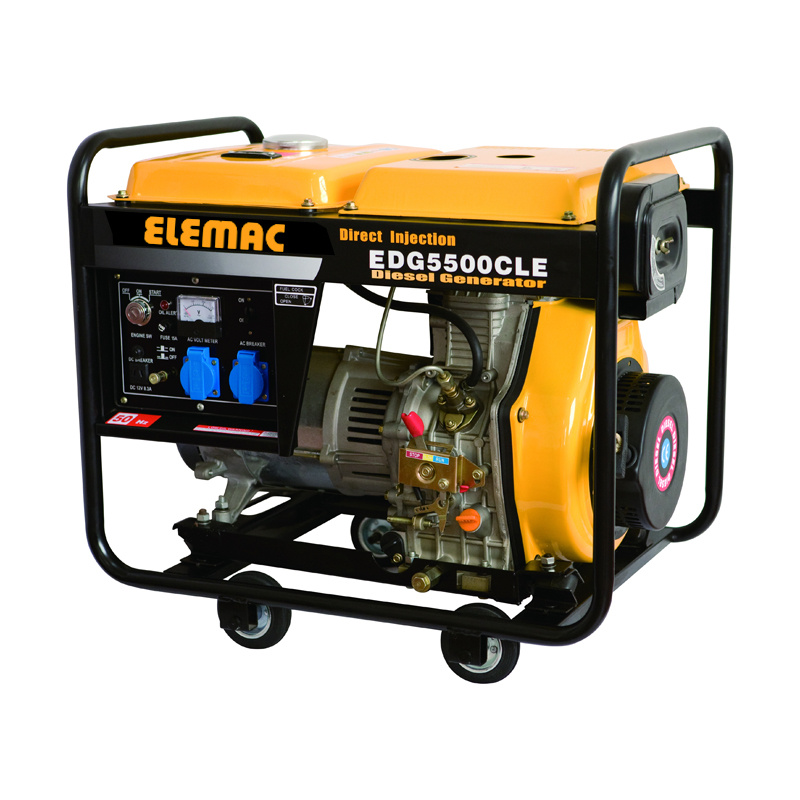

4.5kw Open Frame Type Diesel Generator
| Price: |
US $ 370-445/Box |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Box |
| Pay Type: |
L/C,T/T |
Power on Demand To Live, To Work, To Play
ELEMAC provides security during loss of power along with a wide range of features, supporting activities at work, outdoors and home. Our generators are built with strict quality control measures and the best components so that when you need your generator most, you're getting the security and performance you deserve. ELEMAC generators are sold in over 30 countries worldwide, tough enough to survive the most extreme elements.
Powering huge watts of energy globally from the deserts of Africa to the tundra of Siberia to the tropical rain forests of Brazil, our generators are not just backup power, but sometimes the only power. ELEMAC is also an expert in remote and electric start option generators, enabling you to receive Power on Demand. Our simple-to-operate designs mean anyone can use ELEMAC Generators in any setting:
to live, to work and to play.
Brush type alternator with AVR
Direct injection engine
Large fuel tank for long time running
Fuel meter
AC circuit breaker to protect unit from being overloaded
Low oil warning system
Large muffler to reduce noise
Strong frame to protect the unitOne year limited warranty
USA Standard, 100% Copper, Over 110% Ouput
| Model No | EDG6700 / EDG6700E |
| Rated Frequency(Hz) | 50 | 60 |
| Rated Rotation Speed(rpm) | 3000 | 3600 |
| DC Output(V.A) | 12V,8.3A |
| Rated Voltage(V) | 220,230,240,110/220,115/230,120/240,220/380,230/400,240/415 |
| Rated Output Power(KVA) | 4.5 | 5.0 |
| Max Output Power(KVA) | 5.0 | 5.5 |
| Power Factor cosΦ | 1/0.8 |
| Phase Number | Single /Three |
| Excitation Transistorized | AVR Type OR Self-Excitation,brushless |
| Structure Type | Open frame |
| Fuel Consumption(g/KW.h) | 340 |
| Fuel Tank Capacity(L) | 12.5 |
| Continuous Runing Time(hr)(at Rated Power) | 7 |
| Noise Level(Dba@7m)(Zero Load~Full Load) | 75~79 |
| Starting System | EDG6700: Recoil Starter; EDG6700E:Electric Starter |
| Fuel Type | 0#(Summer),-10#(Winter),-35#(Chill Cold) Diesel Oil |
| Lube | SAE10W30(Above CD Grade) |
| Engine model | EDG6700: EDE186FA |
| EDG6700E: EDE186FAE |
| Engine Type | 1-Cylinder,4-Stroke,Air Cooled, Vertical, Diesel Engine |
| BorexStroke(mm) | 86x72 |
| Displacement(cc) | 418 |
| Compression ratio | 19:1 |
| Rated Power(KW/rpm) | 5.8/3000 | 6.3/3600 |
| Optional Standard | ATS |
| Remote Control |
| Three Phase |
| Wheel and Handle |
| Net Weight(Kg) | EDG6700:95 | EDG6700E:100 |
| Overall Dimension(mm)(LxWxH) | 710x495x620 |
| Prod Model: |
EDG6700 / EDG6700E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
AC Single Phase |
| Starting: |
Recoil Starter or Electric Starter |
| Power: |
4.5kw |
| Standard: |
CE, GS, EPA, Soncap Approvals |
