I.Our Advantages:
1.Easily operating
2.Quickly starting
3.Competitive price
4.Stable stock
II.Products description:
Requirement for biomass gas
Within 1m to the intake valve of gas generator set
1.Generator temperature≤40ºC
2.Pressure 3-10kpa ,pressure changing rate≤1kpa/min
3.H2S≤200mg/Nm3
4.NH3≤20 mg/Nm3
5.Tar content ≤20 mg/Nm3
6.Impurity particle size≤5um .impurity content≤30 mg/Nm3
7.Moisture content≤40 g/Nm3
8.Heat value≥4.2mj/Nm3
Noted : If there are too much sulfur and ammonia in the gas ,it will not only corrode the
electrode of sparking plug heavily but also increase the acid value of engine oil which will
corrode the parts inside of genset ,easy to generate precipitate and increase the attrition
corrosion to the engine.
| Genset mode | Engine No. | Rated power | Rated rotation | Size(L*W*H)mm | Weight (KG) |
| CW-20GFJ | CW4105 | 20KW | 1500 | 2200×850×1300 | 900 |
| CW-30GFJ | CW4105 | 30KW | 1500 | 2200×850×1300 | 900 |
| CW-40GFJ | CW6105 | 40KW | 1500 | 2700×850×1350 | 1200 |
| CW-50GFJ | CW6105 | 50KW | 1500 | 2700×850×1350 | 1200 |
| CW-60GFJ | CW4135 | 60KW | 1500 | 2300×850×1350 | 1300 |
| CW-80GFJ | CW6135 | 80KW | 1500 | 4000×120×1750 | 2300 |
| CW-100GFJ | CW6135 | 100KW | 1500 | 4000×120×1750 | 2300 |
| CW-120GFJ | CW12V135 | 120KW | 1500 | 4000×120×1750 | 4000 |
| CW-150GFJ | CW12V135 | 150KW | 1500 | 4000×120×1750 | 4000 |
| CW-200GFJ | CW12V135 | 200KW | 1500 | 4000×120×1750 | 4000 |
| CW-300GFJ | 6190ZLDT-2 | 300KW | 1000 | 5600×1970×2170 | 9000 |
| CW-400GFJ | 12V190DT-2 | 400KW | 1000 | 5600×1970×2235 | 11000 |
| CW-500GFJ | 12V190ZLDT-2 | 500KW | 1000 | 5600×1970×2670 | 11500 |
| CW-600GFJ | 12V190ZLT | 600KW | 1000 | 5600×1970×2670 | 11500 |

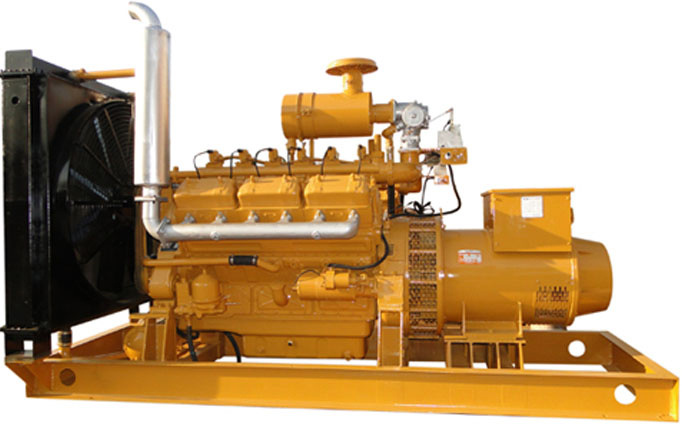

| Genset No. | CW-400GFJ |
| Engine No. | 12V190ZLDT-2 |
| Gas mix type | outside |
| Rated power | 400kw |
| Continuous power | 320kw |
| Rated voltage | 400V/230V |
| Phase | 3phase4wire |
| Rated frequency | 50Hz |
| Rated rotation | 1000r/min |
| Rated power factor | 0.8 |
| Rated current | 720A |
| Frequency steady state regulation rate | ≤0.5% |
| Voltage regulating range | 95-105% |
| Heat consumption | ≤11.5mj/kw.h |
| Lubricant consumption | ≤1.5g/kw.h |
| Gas pressure | 80-200kpa |
| Cylinder number | 12V |
| Cylinder diameter | 190mm |
| Stroke | 210mm |
| Compression ratio | 9:1 |
| Starting mode | 24V electric motor |
| Overhaul time | ≥25000h |
| Noise | ≤105 |
| Intake mode | Supercharging,inter- cooled |
| Sparking mode | Sparking plug |
| Voltage regulation mode | automatic |
| Speed regulation mode | Electric speed regulate |
| Lubrication mode | Pressure and splash |
| Cooling mode | Closed/open cooled |
| Exhaust temperature | ≤650ºC |
| Displacement | 71.45L |
| Size (mm) | 6000*1970*2735 |
III.Contact details:
Nancy Wu
Welcome to have a visitand your enquiry would be highly appreciated!

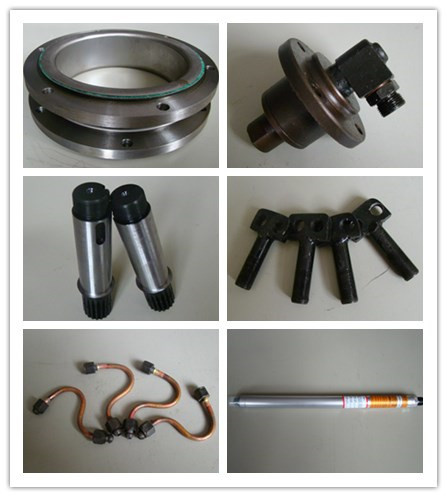

Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
