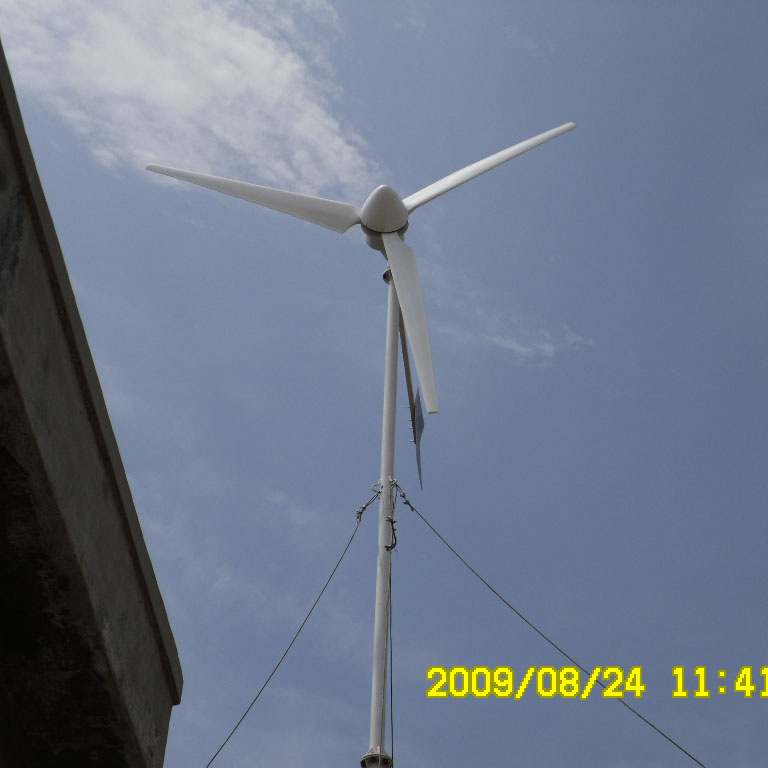

3KW wind turbine generator
Model | FZY3K | Rotor diameter | 4.5m |
Blades quantity | 3 pcs | Blades material | FRP (composite material) |
Rated speed | 260r/min | Rated output power | 3KW |
Max output power | 4500W | Output voltage | DC240V/AC220V |
Start wind speed | 3m/s | Rated wind speed | 10m/s |
Working wind speed | 3-25m/s | Security wind speed | 40m/s |
Speed regulation | yaw& magnetic resistance | Charge control | AIC (automatic intelligent control) |
Wind turbine type | PMG (onconstantmagnets) | Working temperature | from -40 to +60 C |
Annual average energy production | 7500kWh | Recommended accumulators | 12V100AH20PCS( 2000Ah ) |
Accumulators full charge time | about 10 hours | Tower type | pull wire tubular tower or cone tower(optinal) |
Tower height | 8m (optional) | Weight | 120kgs (without tower) |
CAN SUPPLY POWER FOR | Air-condition. Refrigerator water pump. electric cooker.TV.washer. Illumine. Fanner. Charge |
5KW wind turbine generator
Model | FZY5K | Rotor diameter | 5.5m |
Blades quantity | 3 pcs | Blades material | FRP (composite material) |
Rated speed | 260r/min | Rated output power | 5KW |
Max output power | 6KW | Output voltage | DC240V/AC220V |
Start wind speed | 3m/s | Rated wind speed | 10m/s |
Working wind speed | 4-20m/s | Security wind speed | 40m/s |
Speed regulation | yaw& magnetic resistance | Charge control | AIC (automatic intelligent control) |
Wind turbine type | PMG (onconstantmagnets) | Working temperature | from -40 to +60 C |
Annual average energy production | 12500kWh | Recommended accumulators | 12V200AH20PCS(4000Ah ) |
Accumulators full charge time | about 12 hours | Tower type | pull wire tubular tower or cone tower(optinal) |
Tower height | 9m (optional) | Weight | 300kgs (without tower) |
CAN SUPPLY POWER FOR | Refrigerator. water pump. electric cooker.TV.washer. Illumine. Fanner. Charge |
Qingdao RuiLan Trading Co., Ltd is specialized in Railway bogie casting parts, like bogie18-100 to Russia, bogie1750 to Ukraine, both bogie18-100 and bogie1750 with certificate can make sure products enter into your market.
Bogie18-578, bogie18-194 and bogie 18-7020 will be ok soon.
We have been cooperated with many big companies and manufactures in Russia and Ukraine. Our experienced engineers offer a wealth of design and application expertise. We can offer you more than 20 years of experience in designing and manufacturing to satisfy your particular needs. Our company has advanced equipment, professional staff. Our raily way parts productions obtained CRCC certification, AAR, Ukrsepro and ISO9001: 2000 quality system certification, which guarantees high quality railway products for domestic and foreign manufactures.
Our International trade department is responsible for the product export, and undertakes the train design, manufacture, maintenance, and production of major cast steel parts and bogie parts.
"Quality Products, Excellent Service, Competitive Prices and Prompt Delivery" is our principle. We have built up good relationships with customers all over the world. We are advancing into global market drastically. Additionally, we have put considerable efforts on development and design, which can enable us to better satisfy customers' changing needs in a positive manner.
We are pleased to be your stable railway parts, components any products such as casting parts, bogies we can make them according to your drawings.
We sincerely welcome you to visit our company for cooperation and mutual development.
