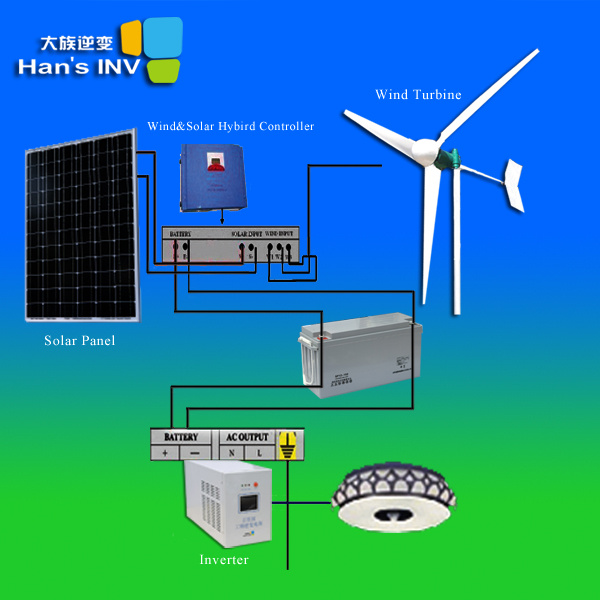

HKFD-H-2KW+1KW Wind Turbine&Solar Panel Hybrid Power System
Structure:
1. Wind Turbine Type: Horizontal wind turbine 2kw
2. Hybrid inverter input for solar panel and wind turbine
3. Polysilicon solar panel: 1KW
4. Blade Type: Propeller
5. Blade Qty: 3PCS
6. Blade material: Glass fiber reinforced plastic
7. Type of generator: Permanent-magnet
8. Type of tower: Guy wire or free standing
High Lights:
1, Strong wind protection: Auto-brake & Manual-brake protection
2, Maintenance free, low Speed permanent magnet AC drive genereator
3, Low Starting torque, high efficiency
4, Neodymium magnets and bearing with high performance
5, long life with FRP material
Wind Turbine Specification:
Rated power: 2KW
Max power: 3KW
Blade diameter (m): 4
Rated Rotated speed(r/min): 300
Rated wind speed (m/s): 8
Output voltage (v): 96
Start up wind speed (m/s): 3
Working speed (m/s): 3-30
Security wind speed(m/s): 50
Speed regulation: Mechanical manual + electric brake
Supply power for: Refrigerators, Water pumps, Color TV sets, Washing machines, Lighting, Electric fans, Charge
Life: 25years+;
Blade:
Qty of blades: 3PCS
Material: Glass fiber reinforced plastic
Type: Propeller
Surface: Decaying-free Painting(White)
Guy Wire Tower:
Height: 6m
Material: Q235 Steel Pipe
Surface treatment: Decaying-free Painting
Solar Panel:
250W Pm(W)
43.2 Voc(V)
8.06 Isc(A)
34.4 Vm(V)
7.26 Im(A)
26 Kg/PC
4PCS/BOX
Hybrid Inverter & Controller Box:
Input Rated wind power: 2KW
Input Max wind power: 2.5KW
Input Solar Panel Power: 1000W
Rated Battery Voltage: 96V
Rated Output Voltage: 110/120/220/230/240 V
Output Frequency: 50/60 Hz± 0.05Hz
Working environment temperature: -20~50 degrees centigrade (-4~122F)
Overload Capability: 120% 1min
Protection of overload: 150% 10 seconds
Voltage of resuming power supply: 96VDC
Stop charge DC Voltage: 134V
Voltage of resuming charges: 132V
Stop voltage protection: 84V
Optional: Capacity and quantity of battery: 12V100AH 8 PCS or more
Han's INV, committed to be one of the world-class experts for inverter and grid-connected technology, collects all the excellent experts and technology-based professors in the industry from R&D, design and manufacture to sale and provides all kinds of inverters to our customers, including on-grid inverters and off-grid inverters, covering the power from 1kw~500kw. Moreover, Han's INV can do the tailored design and production of the special function according to the customers' requirements.
Han's INV's excellent qualities and reliabilities based upon: Reliable project design; Top-class laboratory; Complete testing equipments; Well-known R&D experts and skilled workers in the industry; Quality management system through IS09001; Check point setting on every link and parameters testing; The application of famous domestic and international brand electric parts etc.
Regarding to the product ranging from 1kW to 500kW and the related price, Han's INV can provide the optimized individual business solution according to customer's requirements and affordable price.
Han's INV, with an area of 5, 000 square meters in Shenzhen city, Guangdong province, China, is welcoming your visit and business cooperation.
