TYPE | Output | Current(A) | Pole Number | Sychronous Speed(r.p.m) |
KVA | KW |
Single phase 230V 50Hz/1500r/min |
ST-2 | 2 | 2 | 8.7 | 4 | 1500 |
ST-3 | 3 | 3 | 13 | 4 | 1500 |
ST-5 | 5 | 5 | 21.8 | 4 | 1500 |
ST-7.5 | 7.5 | 7.5 | 32.6 | 4 | 1500 |
ST-10 | 10 | 10 | 43.3 | 4 | 1500 |
ST-12 | 12 | 12 | 52.2 | 4 | 1500 |
ST-15 | 15 | 15 | 65.3 | 4 | 1500 |
ST-20 | 20 | 20 | 87 | 4 | 1500 |
Three phase 400V 50Hz/1500r/min |
STC-3 | 3 | 3.8 | 5.4 | 4 | 1500 |
STC-5 | 5 | 6.3 | 9 | 4 | 1500 |
STC-7.5 | 7.5 | 9.4 | 13.5 | 4 | 1500 |
STC-10 | 10 | 12.5 | 18.1 | 4 | 1500 |
STC-12 | 12 | 15 | 21.7 | 4 | 1500 |
STC-15 | 15 | 18.8 | 27.1 | 4 | 1500 |
STC-20 | 20 | 25 | 36.1 | 4 | 1500 |
STC-30 | 30 | 37.5 | 54.1 | 4 | 1500 |
STC-40 | 40 | 50 | 72.2 | 4 | 1500 |
STC-50 | 50 | 62.5 | 90.2 | 4 | 1500 |
Place of Origin: Fujian, China (Mainland)

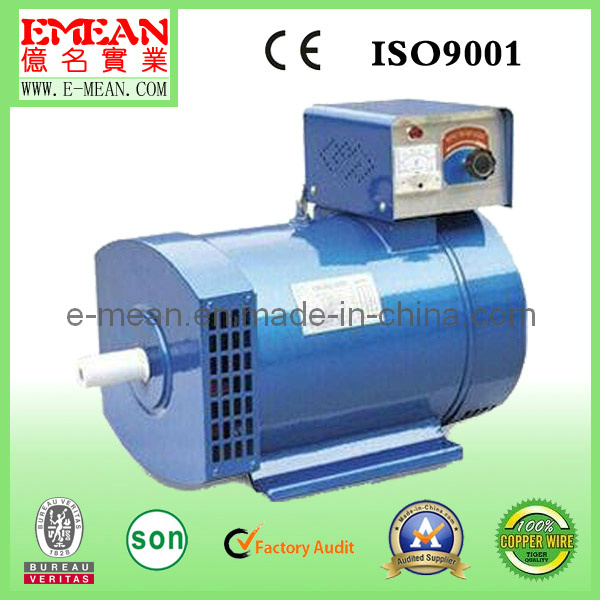

Brand Name: AC Alternator kw
Model Number: ST-3
Output Type: AC Single Phase
Speed: 1500/1800RPM
Frequency: 50/60Hz
Rated Power: 3KW
Rated Voltage: 400/230V
Rated Current: 13A
AC alternator 3kw Color: GREEN
Power factor: 0.8lagging
Insurance Class: B or C
Protection Class: IP21
Fan material: Plastic or Aluminum
Wire winding: 100% copper
OEM Service: Acceptable
Certificate: CE/ISO9001
Warranty: 1500hours or 1year
Copper wire three phase Generator/ Alternator (STC)
1. OEM, Factory Price
2. ISO9001, CE, SGS, CCC Certificate
3. Quality first, Service first
(1)Copper STC Generators/ Alternators are to be used in town, the countryside, work sites, mountains and pasture lands as a electric power source for lighting purpose. It can also be used as a reserved power source for emergent case.
(2)Copper STC Generator/ Alternator is of drip-proof with rotary field type and harmonic excitation system, making use of the star connection with neutral point.
(3)The rated line voltage is 400V; Phase voltage is 230V; Frequency is 50Hz; Power factor is 0.8(lag). We can provide the generator with 60Hz and the other voltage according to request.
(4)Copper STC Generator/ Alternator can be coupled with a prime mover directly or through V-belt, rotating right or reverse continuously at the rated speed.
(5)When the revolution slip of prime mover is 3% and the load varies in the range of 0-100%, the power facter is 1.0-0.8, the constant voltage keeps excellent. After a sudden change (increase or decrease) of load, the generators will soon return to their normal working state.
(6) Copper STC Generator/ Alternator can directly start an unloaded squirrel cage induction motor without any starting devices.
1)ST STC Series AC Synchronous Generator
2)single phase or three phase
3)CE, ISO9001 certification
