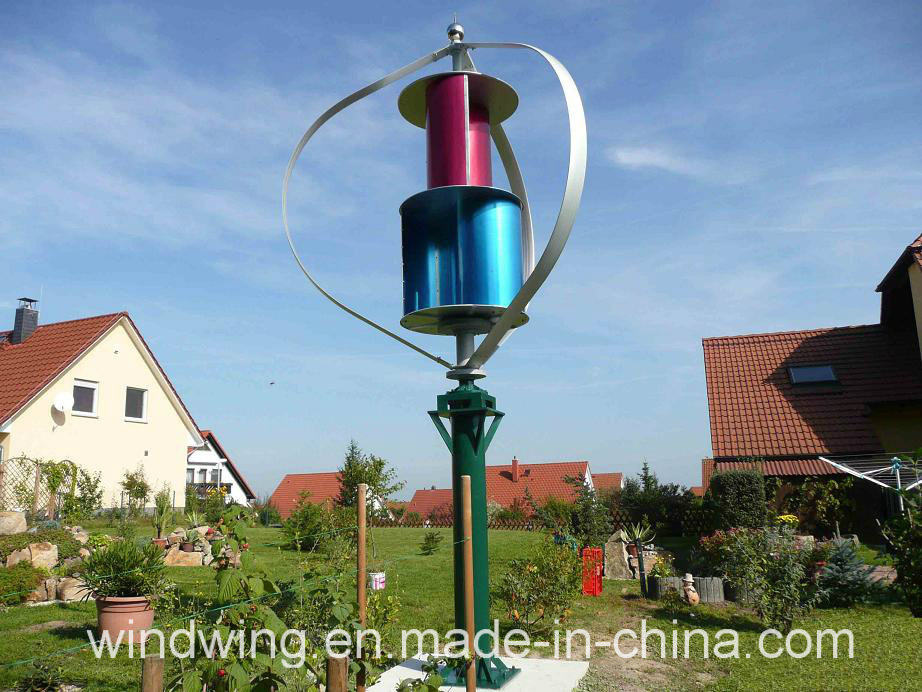

3kw Permanent Magnet Wind Turbine Generator
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Lowest cut-in wind speed
1 m/s for power production
No noise, no vibrations
(sound level< 25 dB at 7 m/s from 10 m distance)
Adaptable for hybrid solutions
with solar and other sources of energy
Permanent power supply
from wind/solar and continuous battery charging
Technically advanced Maglev generator
No mechanical friction
Best price-performance ratio All weather resistant
(rain, ice, heat, salt, sand)
Independent of wind direction
Suitable for roof fixation
Maintenance-free
Safety for people and nature
Useage
· Household, Garden, farm eolic vertical wind turbine generator, Off grid and on grid power system
· Telecom sites.
· Rural electrification programs. Island, sentry, island, sight lighting
· Make wind -solar hybrid power system
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed
4. Solved the problem with you during using our products
| PARAMETER | VERTICAL WIND TURBINE MODEL NUMBER |
| | WKV-3000 |
| Rated Power | 3KW |
| Size(Height / Diameter) | 3.5/3.2(M) |
| Blades Material | aluminum alloy |
| Start-up Wind Speed | 1.5m/s |
| Minimum Power Generation Wind Speed | 2.5m/s |
| Cut-in wind speed | 3.5m/s |
| Rated Wind Speed | 13m/s |
| Cut out Wind Speed | 15m/s |
| Survival Wind Speed | 60m/s |
| Generator Type | AC, 3 phases |
| Controller Output Voltage | 48/96V |
| Controller Braking System | 3-Phase short circuit by NFB brake |
| Ambient Temperature | .-30~50 °C |

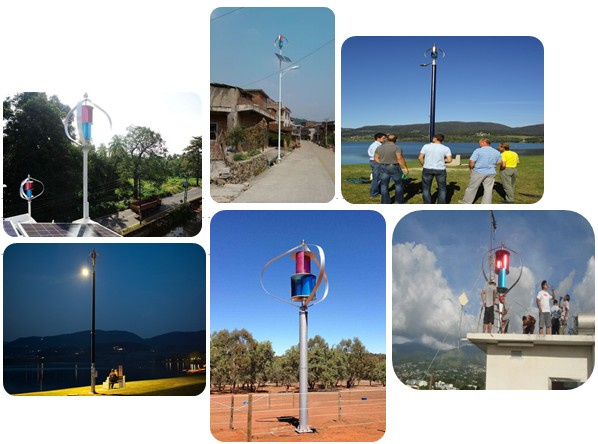

Project
| HAWT VS VAWT |
| Item | Horizontal axis (HAWT) | Vertical axis |
| Start wind speed | High(≥3m/s) | Low(1m/s) |
| Wind conditions required | Require stable wind direction | Any wind direction |
| Encountered turbulence | Reduce the efficiency | Efficiency is not affected |
| Power stability | Change by wind direction | Without any wind effect |
| Noise | Large(45 decibels or more) | Low noisy(because there is no mechanical friction) |
| Product appearance | Normal | Beautiful |
| Installation height | High(need to avoid the terrain turbulence) | Low(not afraid of turbulence) |
| Installation location | Just in open area like suburb | Any location |
| Generator material | Plastic or composite | metal |
| Structure strength | Poor (easy to broken) | High(double strengthen arm) |
| Resistance of wind speed | Poor(about 40 m/s) | High |
More Model | Model No. | Output Power(W) |
| WKV-200 | 200W |
| WKV-300 | 300W |
| WKV-400 | 400W |
| WKV-600 | 600W |
| WKV-1000 | 1KW |
| WKV-2000 | 2KW |
| WKV-3000 | 3KW |
| WKV-5000 | 5KW |
| Prod Model: |
WKV-3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Wkv-3000 |
| Export Markets: |
Global |
| Rated Power: |
3kw |
| Controller Output Voltage: |
48/96V |
| Controller Braking System: |
3-Phase Short Circuit by NFB Brake |
| Ambient Temperature: |
-30~50 °c |
| Start-up Wind Speed: |
1.5m/S |
| Rated Wind Speed: |
13m/S |
| Blades Material: |
Aluminum Alloy |
| Generator Type: |
AC, 3 Phases, Maglev Generator |
| Number Of Blade: |
Multiple-Blade |
| Rotating Shaft: |
Vertical |
| Stress Way Of Blade: |
Resistance |
