1. The stator uses cold-rolled silicon steel sheet, The slides using skewed slots-Y2
Advertages:
A: Improve the efficiency of the generator, Magnetic effect is good.
B: When the skewed slots cutting magnetic field lines, torque reduced and low wind speed can start the generator easily.
C: The stator of stamping and density are good can enhance generating efficiency
2. Rotor select high quality ND-Fe-B rare earth magnetic steel and cone slope, changed the formerly way that fixed drilling hole so the magnetic field is more stable.
Advantages:
A. Maintain the magnetic integrity of the magnetic steel
B. The material of magnetic steel select 38SH and have high remanence
3. Copper wire adopt Famous Trademark of China Henan Huayang Varnished wire, the class of insulation is F, Diameter of line is uniformity and less impurity
4\The bearing adopts the high quality bearing from Harbin military bearing plant Fine workmanship, long service life, not easy to wear
5\The blades material adopts strengthened fiberglass blades model made in German, advantage is low start up wind speed, steady rotor speed, improve the utilization of wind energy, Long service life.
|

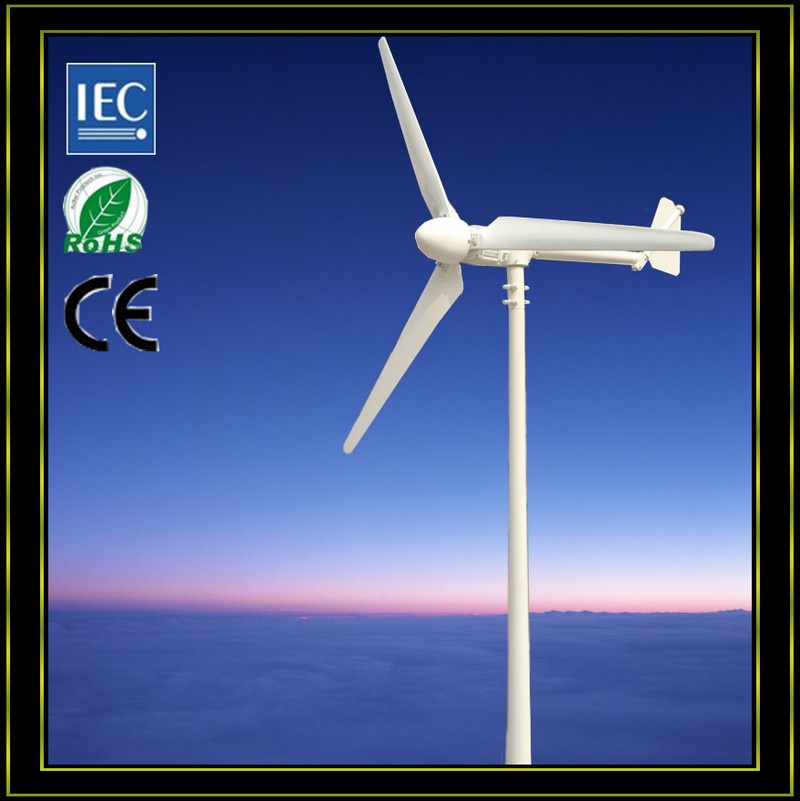

CAT-3KW Wind Generator Technical Parameter |
|
Item |
Parameter |
|
Blades diameter(m) |
5 |
|
Blade material and quantity |
3 Pcs Strengthened form in one piece made by hand |
|
Rated power(w) |
3000 |
|
Max power(w) |
3500 |
|
Annual power generation(kwh) |
4500-13500 |
|
Rated rotor speed(r/min) |
260 |
|
Start up wind speed(m/s) |
3 |
|
Working wind speed(m/s) |
4-25 |
|
Rated wind speed(m/s) |
8 |
|
Security wind speed (m/s) |
50 |
|
Working Voltage(v) |
AC160 |
|
Batteries Voltage(v)/Capacity(Ah) |
220V150AH |
|
Speedgoverning method |
Electromagnetic damping adjusting speed |
|
Brake method |
Manual brade, security protection system |
|
Generator Type |
Three phase and permanent magnet generator |
|
Generator class of insulation |
F |
Zibo CAT Wind Generator Co., Ltd. is a National high-tech enterprise specialized in research, development, marketing and sales of renewable energy products especially for wind power. The main products including Small and Medium wind generators, inverter & controller for photovoltaic system &wind system, solar and wind hybrid generators, solar and wind hybrid street light, wind-diesel hybrid system, wind-solar-diesel hybrid system.
We provide project consulting, system design, technical support, and other services to the whole project process.
Company Located in Zibo City, China, Near 1 hour from Jinan airport, 3 hours from Qingdao port. Covering an area of 4000 square meters. CE certified, the company has a complete series of strict testing and quality guarantee methods for all of the products. The products has exported to numerous oversea markets: North America, UK, Ireland, India, Italy, France, etc; There is also a wide range of domestic application of these product on oil field, farmland, industry park, military camp, fishing farm and port warehouse as well.
As a leading specialist in wind generators, CAT is committed to research, development, Manufacturing and marketing of innovative and superb renewable energy products that meet and surpass international standards and customer demands worldwide. Customer uppermost, Quality, Service are always frist, CAT will provide products which is the most suitable for you.
