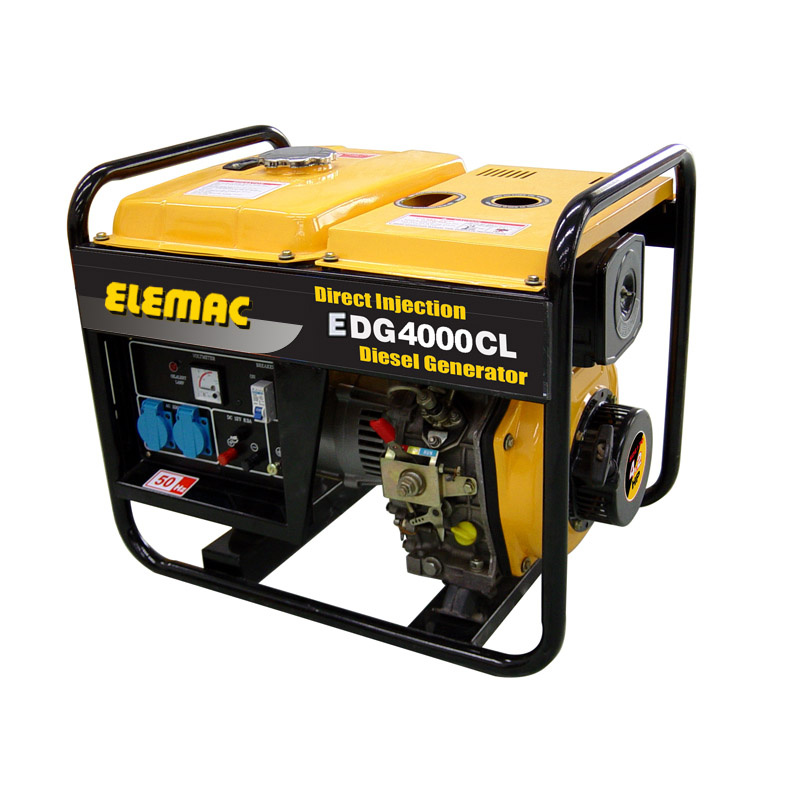

3kw Open Frame Type Diesel Generator

3kw Open Frame Type Diesel Generator
Price: US $ 315-395/Box
Trade Terms: FOB,CFR,CIF
Min Order: 50/Box
Pay Type: L/C,T/T
Power on Demand To Live, To Work, To Play
ELEMAC provides security during loss of power along with a wide range of features, supporting activities at work, outdoors and home. Our generators are built with strict quality control measures and the best components so that when you need your generator most, you're getting the security and performance you deserve. ELEMAC generators are sold in over 30 countries worldwide, tough enough to survive the most extreme elements.
Powering huge watts of energy globally from the deserts of Africa to the tundra of Siberia to the tropical rain forests of Brazil, our generators are not just backup power, but sometimes the only power. ELEMAC is also an expert in remote and electric start option generators, enabling you to receive Power on Demand. Our simple-to-operate designs mean anyone can use ELEMAC Generators in any setting:
 to live, to work and to play.


Products Features:

Brush type alternator with AVR
Direct injection engine
Large fuel tank for long time running
Fuel meter
AC circuit breaker to protect unit from being overloaded
Low oil warning system
Large muffler to reduce noise
Strong frame to protect the unit

One year limited warranty
USA Standard, 100% Copper, Over 110% Ouput

Model NoEDG4000 / EDG4000E
Rated Frequency(Hz)5060
Rated Rotation Speed(rpm)30003600
DC Output(V.A)12V,8.3A
Rated Voltage(V)220,230,240,110/220,115/230,120/240,220/380,230/400,240/415
Rated Output Power(KVA)2.83.0
Max Output Power(KVA)3.03.3
Power Factor cosΦ1/0.8
Phase NumberSingle /Three
Excitation TransistorizedAVR Type OR Self-Excitation,brushless
Structure TypeOpen frame
Fuel Consumption(g/KW.h)370
Fuel Tank Capacity(L)12.5
Continuous Runing Time(hr)(at Rated Power)14
Noise Level(Dba@7m)(Zero Load~Full Load)72~77
Starting SystemEDG4000: Recoil Starter;EDG4000E:Electric Starter
Fuel Type0#(Summer),-10#(Winter),-35#(Chill Cold) Diesel Oil
LubeSAE10W30(Above CD Grade)
Engine modelEDG4000: EDE178F
EDG4000E: EDE178FE
Engine Type1-Cylinder,4-Stroke,Air Cooled, Vertical, Diesel Engine
BorexStroke(mm)78x62
Displacement(cc)296
Compression ratio20:1
Rated Power(KW/rpm)3.7/30004.0/3600
Optional StandardATS
Remote Control
Three Phase
Wheel and Handle
Net Weight(Kg)EDG4000:65EDG4000E:70
Overall Dimension(mm)(LxWxH)670x470x560

Prod Model: EDG4000 / EDG4000E
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: AC Single Phase
Starting: Recoil Starter or Electric Starter
Power: 3kw
Standard: CE, GS, EPA, Soncap Approvals
Bodlong Technology Co., Ltd., a professional power machinery supplier, specialized in R & D, manufacturing, import & export of various portable petrol & diesel generators, big size diesel /gas generating sets up to 3000kVA, engines, water pumps, welders, high pressure washers, lawn movers and construction machineries etc. With continuous generating portable & industrial power globally, Bodlong always focus on performance, reliability and security. Our systematic manufacturing process and accessories exceed customer expectations and surpass the industry standards around the globe.

ELEMAC has been an established brand of Bodlong. Through innovative research and development, state-of-the-art industry technology and constant investment in market development, ELEMAC has raised the bar delivering portable power in over 30 countries under various conditions, assisting customers with their power needs.
