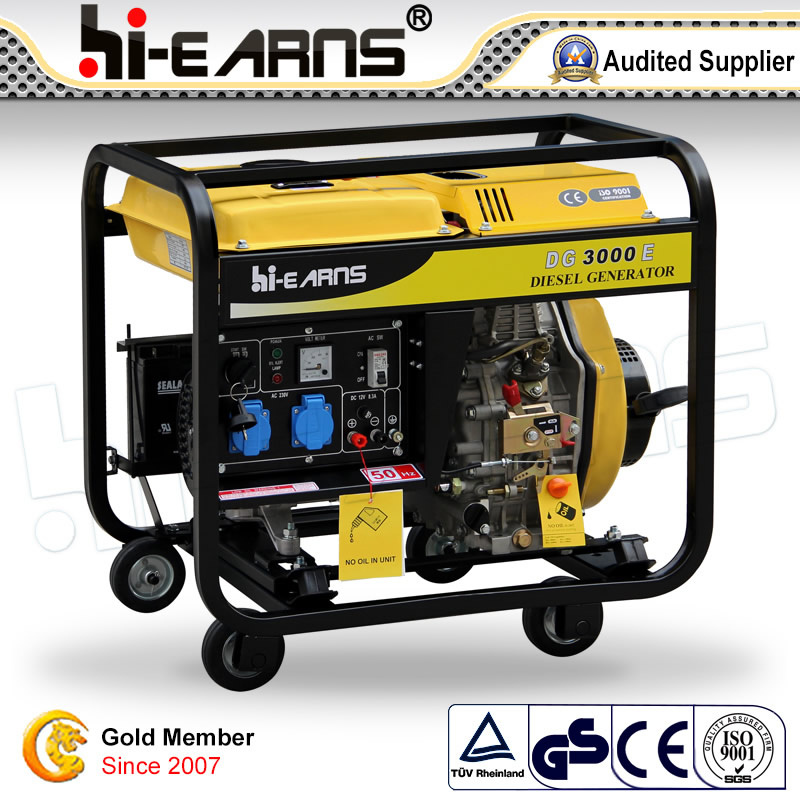

3kw Open Frame Portable Power Diesel Generator (DG3000E)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
* Generator model: 5kw Open Frame Diesel Generator DG6000E (CE, EPA)* With 10HP HR186FA diesel engine, ensure the rated output reach 4.6KW and max. Output can reach 5KW; Portable model applied by several families!
* All spare parts pass Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard;
* Warranty: Running 500 hours or one year. Can support free spare parts for repairing during warranty time also low than market price spare parts out of warranty time!

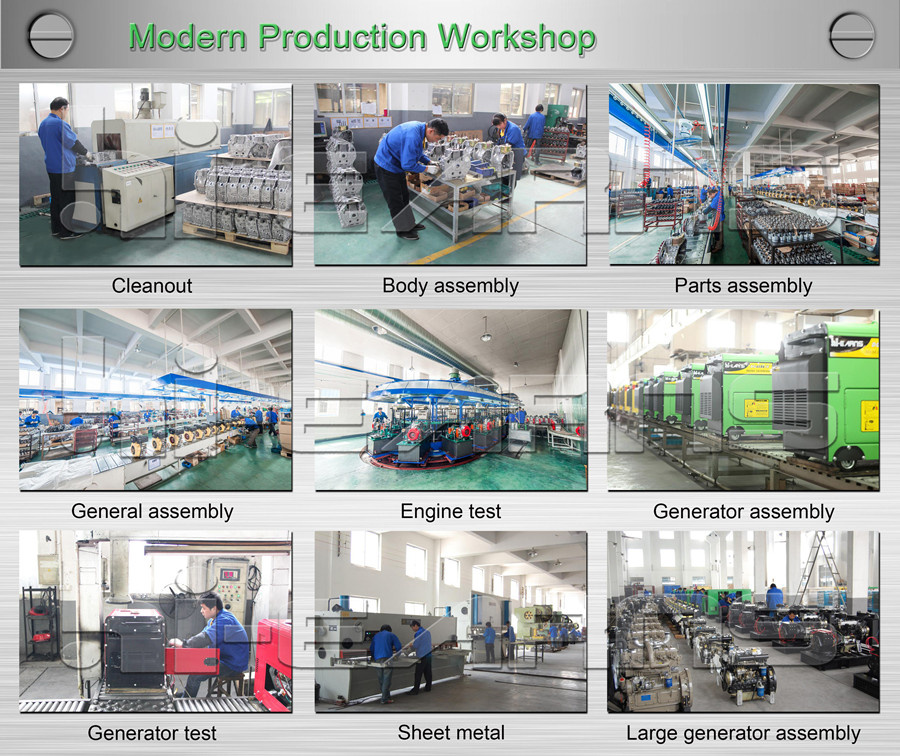

* Modern Production Workshop, strict producing process, ensure a Fast and High-quality products output
* 100% copper good brand alternator, every spare parts suppliers are choosed extremely strict, to control the quality well.Modern Production Workshop, strict producing process, ensure a Fast and High-quality products output:

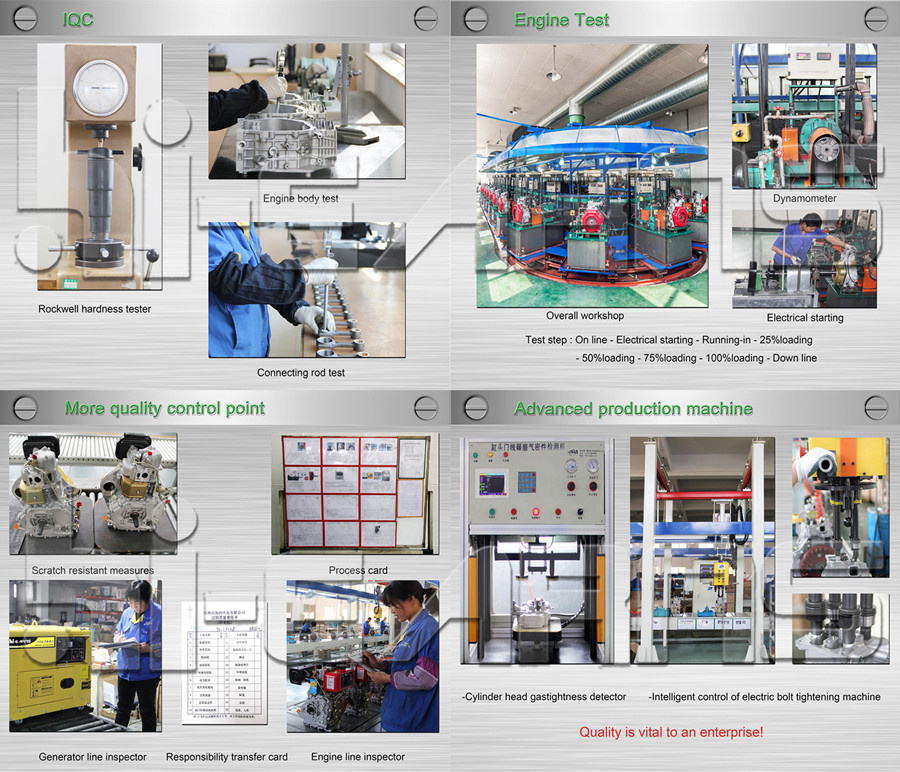

Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard:
We are professional generator manufacture, I think we must have one type even more can match what you need!Just send us your inquiry, we will highly appreciate it!
| Generator Sets | Frequency (HZ) | 50HZ / 60HZ |
| Max. output (KW) | 3 / 3.5 |
| Rated output (KW) | 2.8 / 3 |
| Rated AC Voltage (V) | 120, 220, 230, 120/240, 220/380 |
| Power Factor | 1 |
| DC output | 12V/8.3A |
| Phase | Single Phase/three phase |
| Alternator Type | Self-excited, 2-pole, Single/three phase alternator(brush or brushless) |
| Starting System | Electric/manual |
| Noise Level (Dba/7m) | 72-77Dba |
| Fuel Tank Capacity (L) | 12.5L |
| Continues Running Time (hr) | 9hr |
| Engine | Engine Model | HR178F |
| Engine Type | single-cylinder, vertical, 4-stroke air-cooled diesel engine |
| Max output of engine: | 5.1HP/3000rpm / 5.6HP/3600rpm |
| Bore X Stroke (mm) | 78× 62 |
| Displacement Capacity(cc) | 296cc |
| Fuel Consumption rate(g/kw. h) | ≤ 283 |
| Fuel | 0# or -10# light diesel oil |
| Lubrication Oil Volume (L) | 1.1L |
| Combustion System | Direct Injection |
| Standard Features | Voltmeter, AC Circuit Breaker, Oil warning Light | Yes |
| AC Output Socket | 2 |
| Oil Alert | (electric start with Oil Alert, manual start without Oil Alert) |
| Optional Features | DC circuit breaker, Hour Meter, Wheel and Handle, Three Phase Voltage, Current Meter, Remote Control, Half Canopy Type | Optional |
| Dimensions | LxWxH (mm) | 680*470*550 |
| 20FT | 125PCS |
| Prod Model: |
DG3000E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Model: |
178f |
| Engine Power: |
6HP |
| Generatpor Power: |
2.8kw |
| Start System: |
Electric Start |
| Stroke: |
Four Stroke |
| Type: |
Basic Diesel Generator |
| Cooling Method: |
Wind Cooling |
| Installation Method: |
Portable |
| Output Type: |
AC Single Phase |

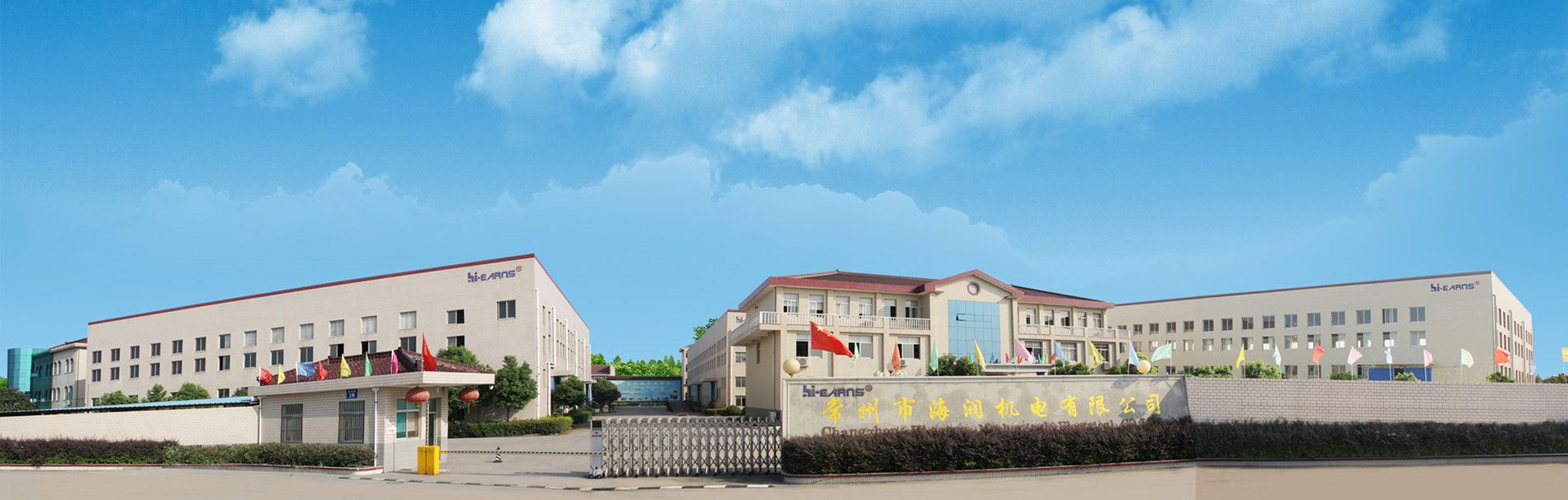

Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.
Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
