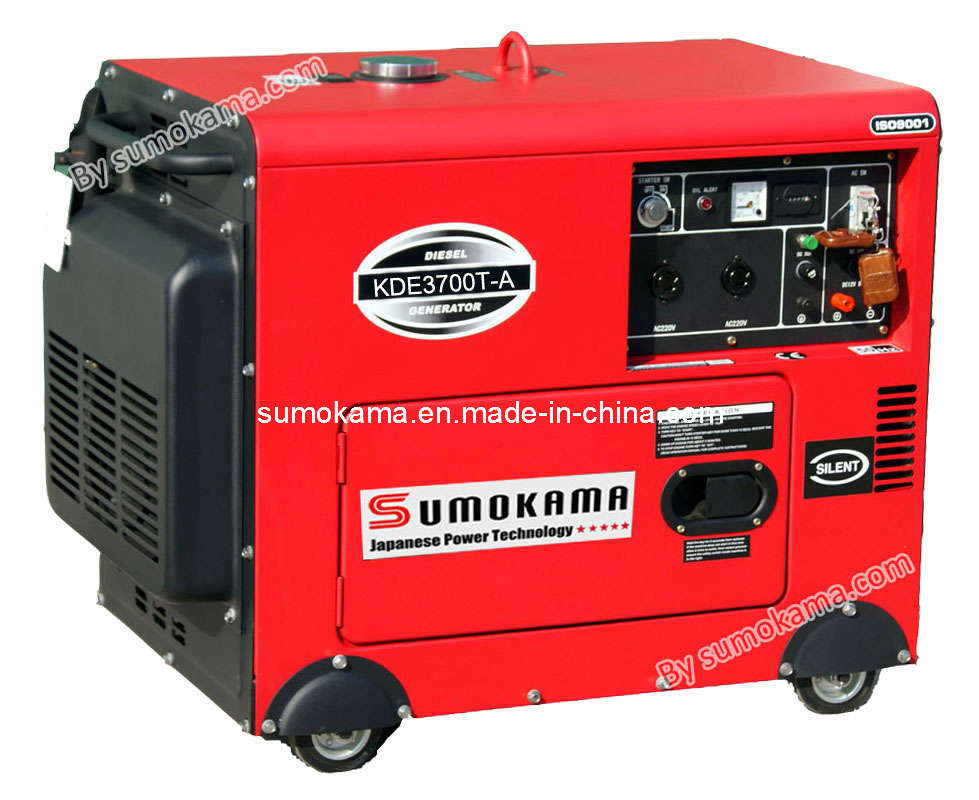

3kw Diesel Generator (KDE3700T-A)
| Price: |
US $ 460/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
1. CE approved diesel generator by sumokama advanced air-cooled diesel engine.
2. Electric start system ensures generator rapid start of the set.
3. Large fuel tank, ensuring hours of continuous output.
4. Low oil pressure alarm system, which can shut down the engine automatically.
5. Integrated cabinet ensures the set running silently.
6. A variety of specially-designed control panels available for different markets.
Model |
KDE3700TA |
Frequency (HZ) |
50 |
60 |
Rated Output (KVA) |
2.8 |
3.0 |
|
Maximum Output (KVA) |
3.0 |
3.2 |
Rated Voltage (V) |
115/230 |
120/240 |
Rated current (A) |
24.4/12.2 |
25/12.5 |
|
Rated rotation speed (rpm) |
3000 |
3600 |
|
Phase No. |
Single phase |
|
Power Factor |
1.0 |
|
Excitation Mode |
Self-excitation, 2 pole and constant voltage (AVR) |
|
DC Output |
12V. /8.3A , Terminal Post |
|
Structure Type |
Soundproof |
|
Noise Level (7m) dB(A) |
72 |
|
Engine Model |
KM178F |
|
Engine type |
Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel |
Bore × Stroke(mm) |
78 x 62 |
|
Displacement (L) |
0.296 |
|
Rated Power KW |
3.68/3000 |
4.0/3600 |
Fuel comsumption Rate(g. kw/h) |
276.1 |
285.6 |
|
Compression Ratio |
20: 1 |
|
Lubrication System |
Pressure Splashed |
|
Starting System |
Electric Start with 30Ah MF battery |
|
Fuel Type |
0#(summer)-10#(winter), diesel |
|
Lube Oil Brand |
SAE10W30 (above CD Grade) |
|
Lube Capacity (L) |
1.1 |
|
Fuel Tank Capacity (L) |
15 |
|
Continuous Running Time (hr) |
12 |
|
Overall Dimension: LxWxH (mm) |
955 x 560 x 780 |
|
Dry Weight (Kg) |
140 |
Quantity in 20FT |
72 Pcs |
|
| Prod Model: |
KDE3700T-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
AC Three Phase |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
National Machinery Group Co., Ltd. It is a professional supplier of Air-Cooled Diesel Engine (Model: KM170F, KM178F, KM186F, KM186FA, KM188F-A, KM188F-B), Water-Cooled Diesel Engine (Model: ZS195, ZS1100, ZS1105, ZS1110, ZS1115, ZS1125, ZS1130), Portable Generator (KDE2500E, KDE3500E, KDE6500E, KDE3700T, KDE6700T, KDE6700TA), Industrial Generator Set (Powered by Cummins, Perkins, Deutz, Yanmar, Kubota, Lovol, Weichai, Ricardo, Shangchai, Wudong, Quanchai etc), Power Tiller(Model: KDT-105, KDT-135), Welding Generator, Water pump set (Model: KDP20, KDP30, KDP40, KDP80T) etc, with 10 yers of experience in research, development and selling, we can supply you products with good quality and reasonable price.
