Home Generator Products 3kw CE Approved Maglev Wind Generator (200W-5kw)

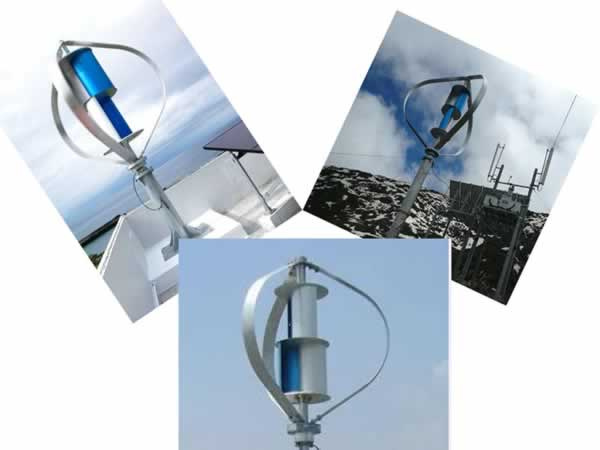

3kw CE Approved Maglev Wind Generator (200W-5kw)

3kw CE Approved Maglev Wind Generator (200W-5kw)
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Professional Manufacture for Vertical Axis Wind Turbine
1. High Quality
2. Competitive Price
3. OEM
4. Fast Delivery Time(We suggest only buy Wind Turbine+Generator+Controller from us)

Such as Inverter, battery, tower, you can buy it in your local.

Application:

Suitable for any Application; Urban to Rural, Residential to Commercial, Industrial to Institutional

Advantages of VAWT:

Nearly Quiet
More Safety
Captures Wind From Any Direction
Birds Friendly
Longer Working Life
Less Maintenance
Less Requirements on Foundation
Lower Supporting Tower


Useage

· Household, Garden, farm eolic vertical wind turbine generator, Off grid and on grid power system
· Telecom sites.
· Rural electrification programs. Island, sentry, island, sight lighting
· Make wind -solar hybrid power system

Our Service

1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed
4. Solved the problem with you during using our products
HAWT  VS  VAWT
ItemHorizontal axis (HAWT)Vertical axis
Start wind speedHigh(≥3m/s)Low(1m/s)
Wind conditions requiredRequire stable wind directionAny wind direction
Encountered turbulenceReduce the efficiencyEfficiency is not affected
Power stabilityChange by wind directionWithout any wind effect
NoiseLarge(45 decibels or more)Low noisy(because there is no mechanical friction)
Product appearanceNormalBeautiful
Installation heightHigh(need to avoid the terrain turbulence)Low(not afraid of  turbulence)
Installation locationJust in open area like suburbAny location
Generator materialPlastic or compositemetal
Structure strengthPoor (easy to broken)High(double strengthen arm)
Resistance of wind speedPoor(about 40 m/s)High


PARAMETERVERTICAL WIND TURBINE MODEL NUMBER


WKV-3000
Rated Power3KW
Size(Height / Diameter)3.5/3.2(M)
Blades Materialaluminum alloy
Start-up Wind Speed1.5m/s
Minimum Power Generation Wind Speed2.5m/s
Cut-in wind speed3.5m/s
Rated Wind Speed13m/s
Cut out Wind Speed15m/s
Survival Wind Speed60m/s
Generator TypeAC, 3 phases
Controller Output Voltage48/96V
Controller Braking System3-Phase short circuit  by NFB brake
Ambient Temperature.-30~50 °C
Prod Model: WKV-3000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size(Height / Diameter): 3.5/3.2(M)
Controller Braking System: 3-Phase Short Circuit by NFB Brake
Survival Wind Speed: 60m/S
Start-up Wind Speed: 1.5m/S
Rated Power: 3000W
Rated Wind Speed: 13m/S
Controller Output Voltage: 48/96V
Certificate: CE
Working Temperature: -30~50
Generator Type: AC, 3 Phases
Number Of Blade: Three Blade
Rotating Shaft: Vertical
Stress Way Of Blade: Resistance
Phase: 3
Hefei Wind Wing Energy Technology Co., Ltd. is the earliest one of the R & D wind energy generation equipment in China. Our company develops under the support of Chinese Wind Power Association, depends on Chinese Academy of Sciences Institute of Automation the long-term technical guidance and the close cooperation. We take the "the national initiative energy crisis subject" as our development goal. Now we have a strong R&D group, and researched and developed a profession leading WIND AND SOLAR SUPPLEMENT new energy generating system.

People are paying attention to our products, for the features: Green energy, environmental protection, regenerative and natural energy, etc. Our systems have widely applied in so many fields: City view, communication station, military army, science & education, weather department, fishing vessel, irrigation, oil well, seawater desalination, open country inspection, and so on.

As the first domestic enterprise developing the WIND AND SOLAR SUPPLEMENT new energy, we have passed ISO9001: 2000 quality and management system certification and EU CE certification. Our WIND AND SOLAR SUPPLEMENT new energy range systems are faithful and popular in the domestic and foreign clients, becoming the profession leading enterprise.

We always persist in the enterprise culture of "being a creditable person, live a worth while life", we insist on providing vast customers with the first-class goods, the top-notch technology heart and soul. We heartedly wish to intensively co-operate with old and new customers for greeting together with the challenge WIND AND SOLAR SUPPLEMENT new energy spring arrival!
