Model No.: TR028
Type: Vertical type

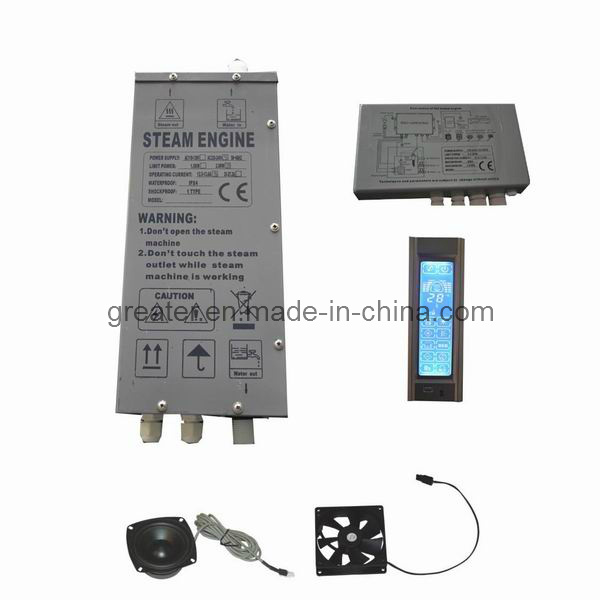

The steam generator kit is including computer panel, control box and steam generator.
Features: Light, fan, FM radio, phone receiver, ozone generator, steam, remote.
Working and programs:
A. Steam time and temperature setting: Time setting range from 1 to 99 minutes(default 45minutes), temperature setting range 25 to 60 degree(default 45 degree).
B. The steamer boiler tank will be drain after 3 minutes after system is off.
C. Steam boiler tank is made from stainless steel and insulation and fireproofing material around tank. The outside cover is made from rust proof iron sheet.
D. The tank has over heat protection. If happen to danger, the system will be shut down automatically.
E. If there is no water in tank, it will be shut down immediately.
Model No. | TR028 veritical type steam generator kit, including computer panel,control box and steam generator. |
Specification
| Functions | Parameters |
Operation interface | Touch screen |
Light | AC12V/10W |
Fan | DC12V/0.29A |
FM radio | Loudspeaker 8Ω/10w |
Ozone | Ozone generator AC12/8W |
Phone receiver | --- |
Steam | Steam generator AC220V/1-3KW |
Remote | Remote controller |
Rated voltage | AC220V/50Hz or AC110V/60Hz |
Rated Power | 2.5-3.2KW |
Waterproof | IPX5 |
Hole size | 55x165mm |
Package size | 390x265x245mm |
Packing volume | 0.025 CBM |
Gross weight | 8 KG |
