TYPE | Output | Current(A) | Pole Number | Sychronous Speed(r.p.m) |
KVA | KW |
Single phase 230V 50Hz/1500r/min |
ST-2 | 2 | 2 | 8.7 | 4 | 1500 |
ST-3 | 3 | 3 | 13 | 4 | 1500 |
ST-5 | 5 | 5 | 21.8 | 4 | 1500 |
ST-7.5 | 7.5 | 7.5 | 32.6 | 4 | 1500 |
ST-10 | 10 | 10 | 43.3 | 4 | 1500 |
ST-12 | 12 | 12 | 52.2 | 4 | 1500 |
ST-15 | 15 | 15 | 65.3 | 4 | 1500 |
ST-20 | 20 | 20 | 87 | 4 | 1500 |
Three phase 400V 50Hz/1500r/min |
STC-3 | 3 | 3.8 | 5.4 | 4 | 1500 |
STC-5 | 5 | 6.3 | 9 | 4 | 1500 |
STC-7.5 | 7.5 | 9.4 | 13.5 | 4 | 1500 |
STC-10 | 10 | 12.5 | 18.1 | 4 | 1500 |
STC-12 | 12 | 15 | 21.7 | 4 | 1500 |
STC-15 | 15 | 18.8 | 27.1 | 4 | 1500 |
STC-20 | 20 | 25 | 36.1 | 4 | 1500 |
STC-30 | 30 | 37.5 | 54.1 | 4 | 1500 |
STC-40 | 40 | 50 | 72.2 | 4 | 1500 |
STC-50 | 50 | 62.5 | 90.2 | 4 | 1500 |
3kw-60kw ST & STC alternators prices
1. Competitive quality and price.
2. Materials 100% copper wire.
3. CE, CCC, ISO9001
4. Shipping within timely

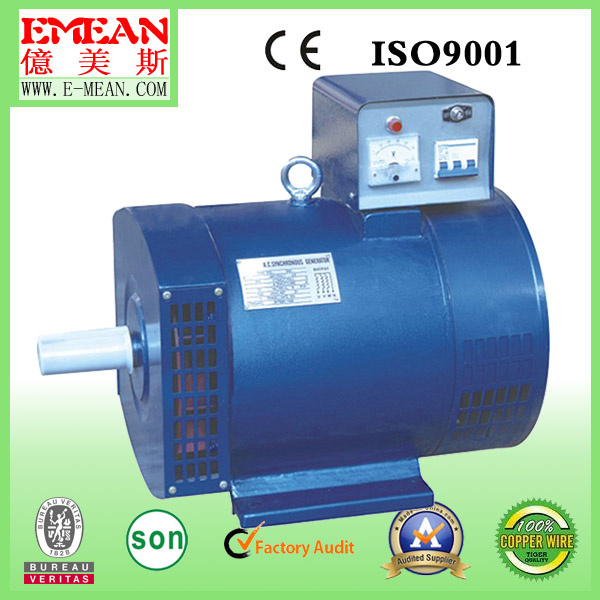

ST Series Single phase A. C. Synchronous Generator
Detailed Product Description
The ST series single phase A. C. Synchronous generator is mainly made for the domestic electric in town or villiage, and also used as lignting in the boat.
The construction of the generator is of drip-proof, salient pole rotating field self excitation and constant voltage type. The generator interior adopts with high quality magnetic and electric materials. Insulation for stator is class B. This series generator is elegant in appearance, tight in construction and easy to maintenance. And the appearance is designed according to the IEC dimension standard, which is suitable for using in Australia, Europe, America and other countries or regions.
The generator adopts harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system, both have excellent dynamic charactistic performance, are convenient and reliable operation.
Operating Conditions:
Under the following environment condions, the generator could run normally and continuously:
1. Altitude: Not exceed 1000m.
2. Cooling air temperature: 258~313K (-15 ~40 ).
3. Relative air humidity: Not exceed 90%.
The ST series generators are mainly designed to serve as power source of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages. The generators are excellent in appearance, consolidate in construction and easy to maintain. Dimensions adopt IEC standard. They are suitable for Australia, Europe, America and other countries if the end covers are mabel B.
The generator adopt harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system, both of them have excellent dynamic characteristic performance, convenient and reliable in operation
Fuzhou Emean Electric Machinery Co., Ltd. is one of the biggest enterprises, lies in "China Electrical Machinery and Appliances City"--Fuan. EMEAN is a private enterprise established in 2003, which is a comprehensive electrical machinery manufacturing company integrating product designs, production, marketing and service.
Rely on scientific and technological development, we continue to provide users high-tech products, which is our consistent pursuit. On the basis of absorbing the foreign advanced technology, we have already fetched in 10 lines advanced international machinery production. The main products manufactured by our company consist of more than 10 series, over 100 types, involving generators, diesel generating sets, gasoline generating sets and concrete cutter, of which all of our products have been passed the national attestation CCC, CE certificate, Nigeria Soncap and EPA certificate.
EMEAN is a young enterprise, but she owns the fresh and great-hearted blood, which make her more charmful. "Quality assurance, user first" is the agreement of EMEAN executives. Communicate with the domestic industry, scientific research institutions exchange and cooperation so as to improving the quality, such as: Design and production, commissioning and maintenance. Then occupy the market, and expand the scale of the company. We have been moving forward to a more prosperous achievement under the fierce competition.
Today, EMEAN staff pursue the guidelines--"aggressive, realistic, strict and unity" to blaze new trails. We make technology as the core, quality as life and users to God, dedicated to provide you with the highest & cost-effective products and meticulous after-sales service in order to shape a bright future.
