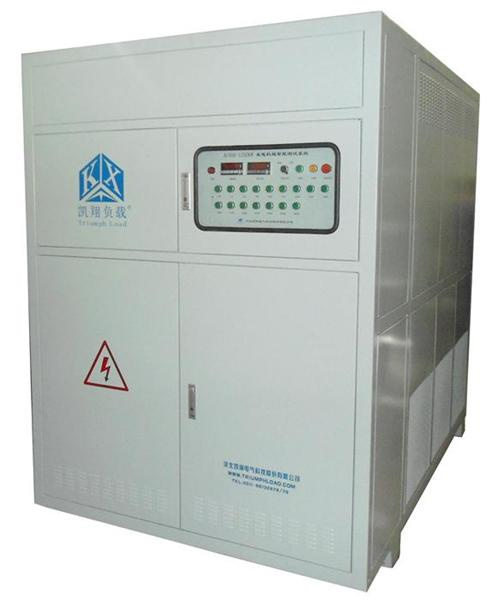

AC Load Bank
PF=1; Resistive load; Power 800kW; 415VAC, 50Hz, 3 P 4W; Phase voltage 240V
Main functions:
1. Users can set adjustable load power within rated power.
2. Current, voltage, frequency, power factor, and active power, reactive power, and apparent power can be displayed.
3. With software programmable control, graphs of current, voltage, frequency, power factor, power can be displayed, saved and printed.
Control mode: Manual control (control panel) with remote control or PC intelligent control.
Display meters: Multi-function digital meter or generator tester.
Protection: Over load protection, over heat protection, short circuit protection, Emergency stop switch, etc
Cooling: Force air cooling.
Why Choosing Us?
1. Hebei Kaixiang Electrical Technology Co., Ltd is the largest and earliest load bank manufacturer in China, we have 20 years experience. Our factory has 25, 000 square meters. We are the leader in domestic market.
2. The sole company that draft the enterprise standard "dry-type load bank".
3. China Power Industry Top Ten Famous Products.
4. China Power Supply Recommend Products.
5. Our Intelligent High Power Marine Use Gensets Dry Type Load Bank wins International advanced level by Science and Technology Department of Hebei Province.
6. Certified with China Classification Society (CCS) and ISO9001: 2008 Quality Certificate.
7. Certified by SGS.
Company Information
Hebei Kaixiang Electrical Technology Co., Ltd is the largest and earliest load bank manufacturer in China, we have 20 years experience. Our factory has 25, 000 square meters.
| Way of Working | Continuous Working |
| Cooling | Forced air cooling,Horizontal inlet air,Vertical cooling |
| Casing Structure | Container, with a ladder, air inlet and outlet with mesh enclosure and protection door |
| Transportation | Hoisting, there are lifting lug in top of casing |
| Casing Color | Grey(RAL7035)or as per customer's requirement |
