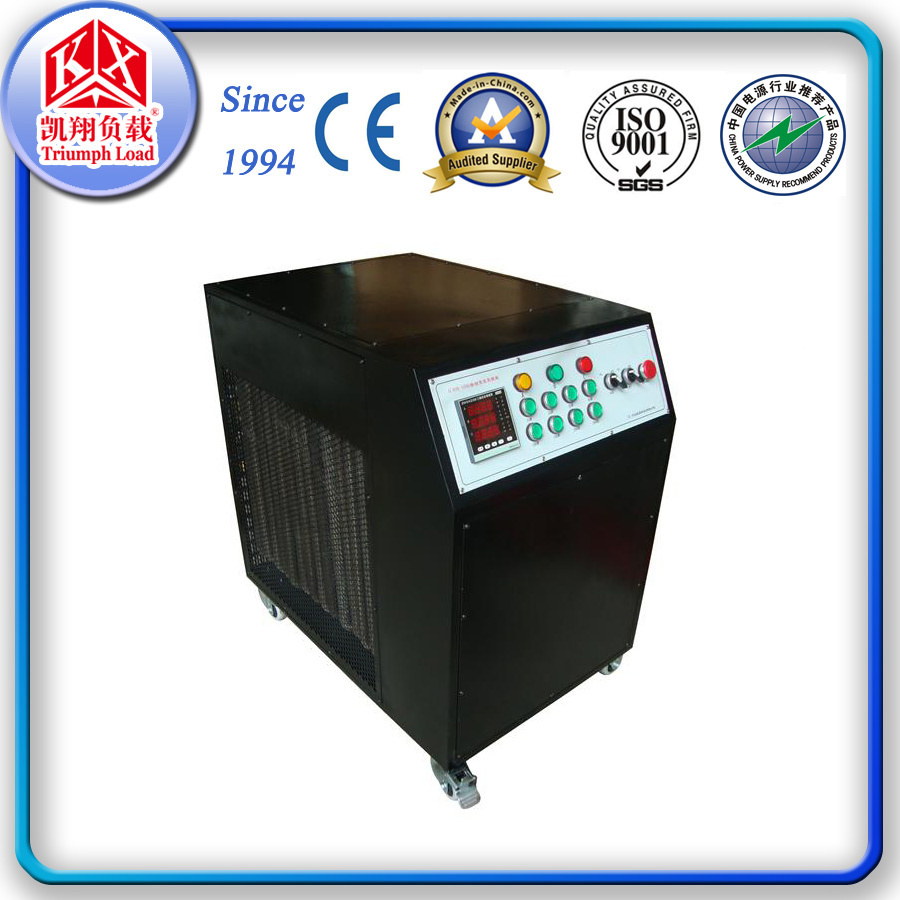

Up to 100kW electrical dummy load
PF=1; Resistive load: 100kW, 400VAC, 50Hz, 3phase 4wire.
Main functions
1. Users can set adjustable load power within rated power.
2. Current, voltage, frequency can be displayed.
Control mode: Manual control (control panel)
Display meters: Current and voltage meter
Protection: Over load protection, over heat protection, short circuit protection, Emergency stop switch, etc
Force air cooling.
Way of Working | Continuous Working |
Cooling | Forced air cooling,Horizontal inlet air,Vertical cooling |
Casing Structure | Container, with a ladder, air inlet and outlet with mesh enclosure and protection door |
Transportation | Hoisting, there are lifting lug in top of casing |
Casing Color | Grey(RAL7035)or as per customer's requirement |
