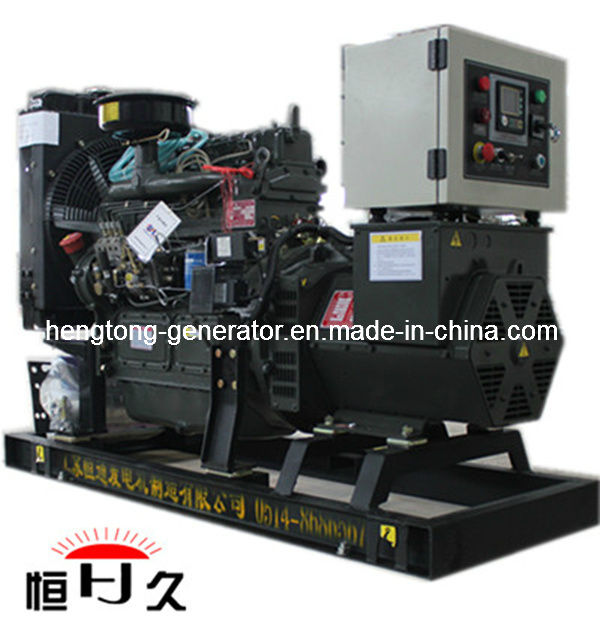

37.5kVA Weichai Engine Diesel Electric Generator (GF30)

37.5kVA Weichai Engine Diesel Electric Generator (GF30)
Price: US $ 2825.00-9330.00/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Our products have got CE, ISO, CQC. Hengtong has professional sales and after-sales service team for domestic and overseas markets.

The components of the genset:
(1) Weichai Diesel Engine; (2)Hengjiu Stamford Alternator; (3) Control Panel

Technical parameters of diesel generator sets:

Generator Set:
Generator Model: GF30
Prime Power(KW): 30KW
Rated Voltage(V): 400/220V
Frequency(Hz): 50Hz
Power Factor: 0.8(lagging)
Rated Current (A): 54A
Dimension (L× W× H) (mm): 1680*720*1070mm
Genset weight (KG): 650KG
Diesel Engine:
Brand: Weichai
Type: K4100D
Power(KW): 30KW
Number of Cylinders: 4
Rotating Speed: 1500RPM
Aspiration: Turbocharged after water-cooled
Bore× Stroke(mm): 100*115mm
Displacement(L): 3.61L
Compression Ratio: 19: 1
Speed Governor: Electrical
Cooling System: Water-cooled
Fuel Consumption at 100% Load: ≤ 258g/kwh
Starting Method: 24V Electrical starting

Alternator:
Brand: Hengjiu Stamford Brushless
Model: HJI30
Rated Voltage(V): 120V-600V
Rated Volumn(kVA): 37.5kVA
Rated Power(KW): 30KW
Connecting Type: 3hase and 4 Wires
Frequency: 50/ 60Hz 3000RPM/3600RPM
Number of Bearing: Single/Double
Protection Grade: IP23/IP44
Altitude: Within the limits of 1000m, temperature of 40ºC or OEM
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class: H/F
Telephone Influence Factor (TIF): 50
THF: <2%
Voltage Regulation, Steady State: ≤ ± 0.5%
Transient State Voltage: ≤ -15%~+20%

NOTES. Powerful Robust and Universal Brushless Alternator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee.

The parameters listed above are for reference only and should not be taken as the basis for orders.

Test before shippment
1, Each Generator Set shall be put into commission more than 4 hours totally, tested on idleload, fully load and 10% overload.
2, Noise level shall be tested.
3, All of the meters on the control panel shall be tested.
4, The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

Packing & Warranty
Packing: Wooden, Plywood or Metal Case.
Delivery Time: Less than 25 working days after receiving prepayment.

Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.

Control System:

Basic control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.

Optional AST & ATS Control System:

AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided with a 101A control module or a DACT704 module with LCD display. When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage, current, frequency and rotation speed parameters.

ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
 Parameters of Hengjiu Weichai Diesel Generator Set
Type of set Parameters of set(400V-3-phase4-line 50Hz COSΦ0.8)
Power of output(KW/KVA) Rated current(A) Weight of set(Kg) Dimensions of set(mm)
Main Standby Length Width Height
GF24 24/30 26/32.5 43 600 1650 720 1070
GF30 / 30/37.5 54 650 1680 720 1070
GF30 30/37.5 33/41.2 54 690 1680 720 1070
GF40 / 40/50 72 800 2000 780 1270
GF40 / 40/50 72 800 2000 780 1270
GF50 50/62.5 55/68.8 90 850 2000 780 1300
GF50 50/62.5 55/68.8 90 850 2000 780 1300
GF60 60/75 66/82.5 108 950 2000 800 1550
GF75 75/93.8 84/105 135 1100 2200 780 1460
GF100 100/125 110/137.5 181 1200 2350 800 1500
GF120 120/150 132/165 217 1300 2400 800 1500
GF150 / 150/187.5 270 1700 2800 1000 1500
Parameters of engine(1500RPM 24V Electric start)
Type of set Type Power(KW) Cylinders Bore × stroke (mm) Compression ratio Displacement(L) Consumption of fuel(100% load g/kwh)
GF24 495D 26 4 95*115 19.0:1 3.26 ≤258
GF30 K4100D 30 4 100*115 19.0:1 3.61 ≤258
GF30 K4102D 33 4 102*115 19.0:1 3.76 ≤258
GF40 R4105D 42 4 105*125 17.0:1 4.23 ≤231
GF40 4100ZD 42 4 100*115 17.0:1 3.62 ≤258
GF50 R4105ZD 56 4 105*125 16.0:1 4.33 ≤231
GF50 R4110D 53 4 110*135 17.0:1 5.13 ≤231
GF60 R4110IZLD 66 4 110*135 17.0:1 5.13 ≤231
GF75 R6105ZD 84 6 105*125 16.0:1 6.49 ≤224
GF100 6105AZLD 110 6 105*130 16.0:1 6.75 ≤218
GF120 6105IZLD 132 6 105*135 16.0:1 7.01 ≤218
GF150 6113ZLD 155 6 113*125 17.0:1 7.518 ≤218
The parameters listed above are for reference only and should not be taken as the basis for orders.

Prod Model: GF30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power (Kw): 30kw
Standby Power Of Output(kVA): 37.5kVA
Rated Current(a): 54A
Weight Of Set(Kg): 650kg
Type Of Engine: K4100d
Dimensions Of Set(Mm): 1680*720*1070mm
Electric: 24V Electric Start
Displacement (L): 3.61L
Output Type: AC Three Phase
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic or Ast or Ats
Jiangsu Hengtong Generator Manufacture Co., Ltd.Is located in Yangzhou city, (3 hours distance by car from Shanghai) which is established in 1986.As a manufacturer, we offer quality Brushless Alternator and Generator Set for Domestic and Overseas Market for more than 20 years.Up to now the total area of factories and offices is almost to 80, 000 M2 and 180 staffs work in our company.

Hengtong started the research and manufacture of 6.5-1760KW brushless AC Synchronous Alternator at 2004 and we've already developed the annual production to 10, 000 sets.Hengtong also produces quality Generator Sets with world class diesel engine such as Cummins, Volvo, Perkins, Daewoo, Styer, Deutz, Shangchai, Wudong, Paou, Jichai, Weichai and so on.Because of stronger research and engineers' hard working, Our Generator sets are applicable as normal and backup power source to communication project, oil industry, airport, air defense, highway and real estate industry.

Our brand "Hengjiu" has been awarded as a Yangzhou famous brand at 2006 which encourages all Hengtong people to offer a better service for our worldwide customers.

For advantaged equipment, standard workshop and high skilled workers, our company has got CE, ISO, CQC, CCS Certificates and other honors.Furthermore, Hengtong has professional sales and after-sales service team for Domestic and Overseas Markets.Under the guidance of the core philosophy "Customer and Service First", Hengtong Generator does provide top quality products and perfect service for all customers.
