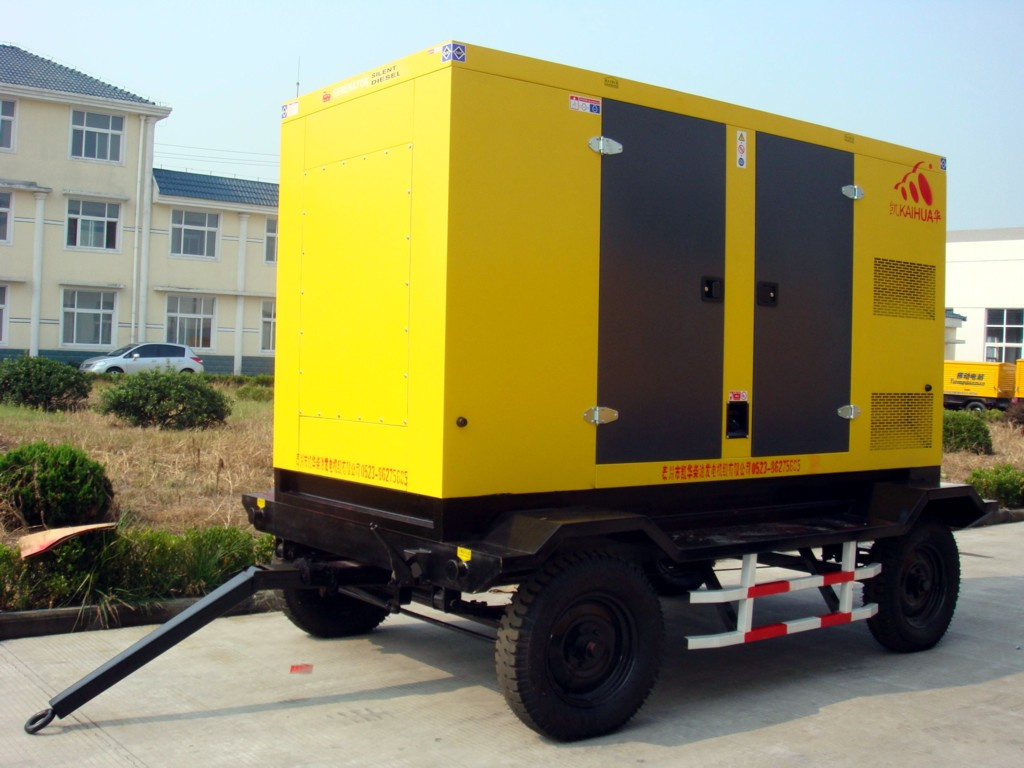

37.5kVA/30kw Trailer Mounted Silent Diesel Generator (1103A-33TG1)
| Manufacturer: | Guangdong Salpower Equipment CO,.LTD |
| Genset Model/Power | SALP-30 / 30KW |
| Prime Power(engine): | 36KW / 45KVA |
| Standby Power(engine): | 40KW / 50KVA |
| Engine | Perkins (1103A-33TG1) |
| Frequency: | 50HZ/60HZ |
| Voltage: | 400/230V |
| Phase: | 3 Phase |
| P.F: | 0.8 |
| Fuel: | Diesel |
| Rated Current: | 54A |
| Start Method: | 24V DC Start Battery |
| Accessory: | Battery, wire, exhaust pipe, muffler, damper, breaker |
| Altitude: | ≤1000m |
| Engine Specifications |
| Manufacturer: | Perkins |
| Air Intake System: | Natural |
| Fuel System: | Direct Injection |
| Cylinder Arrangement: | 4 in line |
| Bore and Stroke: | 105×127 mm |
| Compression Ratio: | 17.25:1 |
| Rated RPM: | 1500rpm/1800rpm |
| Protection Grade: | IP23 |
| Exciter Type: | Brushless, self-exciting, with AVR |
| Insulation Class, Temperature Rise: | H/H |
| Alternator Warranty: | 1 Year No Time Limited |
| Voltage Regulation: | ≥±5% |
| Size and Weight |
| Open Type Overall Size: | 2030mm*730mm*1565mm |
| Weight: | 870 kg |
Alternator Features:
1.World famous brand AC alternator:Leroy Somer, Stamford, Marathon, Engga,
2.Brushless, 4 poles, rotation magnet
3.IP21-23(NEMA1) enclose is standard for all industrial alternators
4.H class insulation system
5.AVR self-regulated, voltage regulation rate:≤ ± 1%
6.Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7.Wide range of flange adaptors and single bearing disc coupling
8.Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9.Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Control System
* Standard matching brands:Smartgen,Deep sea and ComAp
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)
* Functions of remote control interface, remote control, remote test and remote signal(optional).
Product description:
Genset with engine equipped with Alternator Stanford/ ENGGA/ Marathon, the control panel is /Deep sea/ Smartgen /ComAp.The frequency is 50HZ, the rated speed is 1500rpm/min or 60HZ/1800rpm/min, the insulation class is IP23/H, self-exciting, brushless and the altitude is about 1000m, three-phase four wire.Open size/ Super silent DG set, the noise level never exceed 70db at a distance of 7m.
Additional Info.
Packing:Plywood Case, Customized
Origin:UK
HS Code:850211000
Production Capacity:300PCS/Month
Instruction and Quality warranty
Available in the following voltages:415/240,380/220
Prime Power (PRP):Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload, utility parallel or negotiated outage operation capability is available at this rating.
Quality warranty:Guangdong Salpower Equipment Co.,LTD provides a full line of brand new and high quality products.Each and every unit is strictly tested.
Warranty is according to our standard conditions:12 months, counted on the day sold to the first buyer;One year after installation;1000 running hours (accumulated);Subject to the earlier one.
