Power: 360kw Wandi electric generator
Delivery time: 1 month
Warranty: 1 year or 1000hours warranty

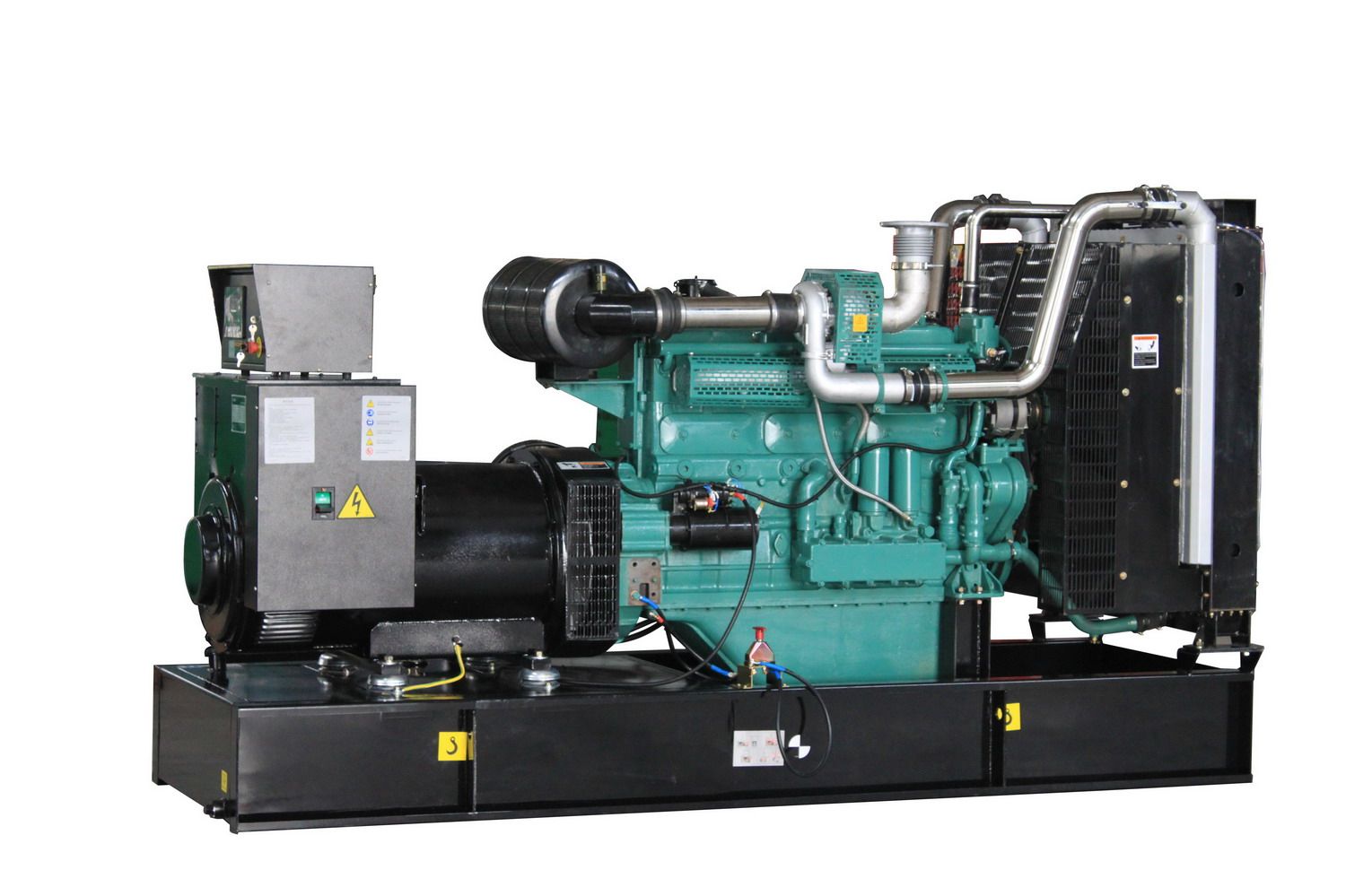

360kw Wandi Electric Generator with ISO and CE certificate
Generator Supply Scope:
1. Engine, alternator, radiator, auto control panel.
2. Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer.
3. Battery, battery charger, battery wires, internal cables, circuit breaker.
4. Manual books of engine, alternator, genset, control panel, wires diagram.
Engine:
1. Wandi: WD269TD38
2. Displacement: 26.9 L
3. Cylinder Arrangement: 12V (600 Vee form)
4. Fuel consumption: 217g/kw. H
5. Cooling Method: Water-cooled
6. Air intake way: Natural aspirated
7. Coolant capacity - engine only: 650L
8. Governor method: Electrical Governor
Alternator:
1. Bearing: Single
2. Insulation Class: H
3. Phase: 3 Phase 4 wires
4. Protection Degree: IP 23
5. Excitation way: Brushless Excitation
6. Type: Leroy-somer, Stamford, Marathon for your option
Other Accessories Optional:
Silent canopy, movable trailer, ATS, synchronization control system, etc.
| Manufacturer | WUXI POWER ENGINEERING CO., LTD |
| Model | WD269TAD38 |
| Rated speed | 1500 rpm |
| Rated Power | 382KW |
| Max. Standby Power | 420KW |
| Cylinder Arrangement | 12V ( 600 Vee form) |
| Displacement | 26.9 L |
| Air Intake System | Turbocharged, air-air cooled |
| Bore and Stroke | 138× 150 (mm) |
| Compression Ratio | 14.7: 1 |
| Specific fuel consumption at rating | 218 g/( kW· h) |
| Specific oil consumption at rating | ≤ 1.5 g/( kW· h) |
| Governor Type: | Electrical |
| Cooling method | Water cooling |
| Starting method | 24V electric |
| Rating average effective pressure | 1383 kPa |
| Exhaust temp. | ≤ 650 |
| Exhaust smoke FSU | ≤ 1.5 |
| Piston average speed | 7.5 m/s |
Direction of rotation of crankshaft
(viewed from flywheel end) | Counter clockwise |
| Firing order (counted from free end) | 1-12-5-8-3-10-6-7-2-11-4-9 |
| Injection timing (before T. D. C) | 22° ~24° |
| Flywheel/Flywheel Housing | SAE 0#, 14” |
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
