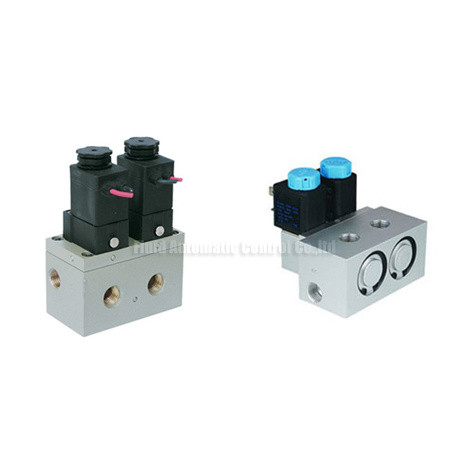

*DSV series low presure solenoid valve
*Aluminum alloy material Valve Body
*Two position four way,Diaphragm pilot motion
*Working at low pressure from 0.08Mpa~0.35Mpa
*Vertical mounting direction and Horizontal Direction for option
*Special Fomular Silicone ensure long serivce life
ORDERING CODE |
| DSV | 08 | V | DC24V | W |
| Type | Joint Port size | Mounting Direction | Voltage | Electricity Connect Form |
| DSV:DSV Series Two Postion Four Way Diaphragm Solenoid valve | 08:G1/4 | V:Vertical Type | DC24V:24VDC | S:Socket type |
|
| H:Horizontal Type | DC12V:12VDC | W:Out-leading Wire |
|
|
| SPECIFICATION |
| Model no | DSV-08-V | DSV-08-H |
| Working Medium | Compressed 40 Micron Filtered Air |
| Body Material | Aluminum Alloy |
| Position And Way Numbers | Two Position-Four Way |
| Port Size | G1/4 |
| Motion Pattern | Diaphram Pilot |
| Working Pressure | 0.08~0.35MPa |
| Operating Temperature | —5~80ºC |
| Voltage Tolerance | ±10% |
| Insulation&Protection Class | F Class IP65 |
