ENGINE: Cummins
ALTERNATOR: STAMFORD/LEROYSOMER/ MECC ALTE
ENGINE
Heavy duty industrial diesel engine manufactures in accordance with B. S. S. 5514, the engine is capable of providing 10% overload for a minimum of 1 hour in any twelve hour period.
ELECTRICAL SYSTEM
12V D. C electrical system, Low Oil pressure and High water temperature shut down
PROTECTION
Low oil pressure, high water temperature and over speed protections
COOLING SYSTEM
50 Degree Tropical Radiator

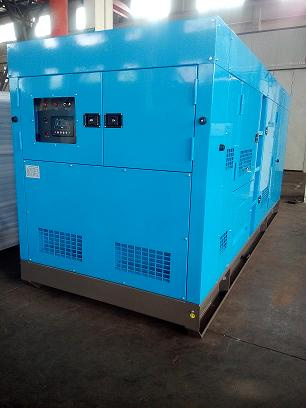

ENCLOSURE
Mounted within an enclosure and designed to reduce noise level to less than 75DBA at 1 meter in accordance with E. E. C. Regulations. The canopy is manufactured from mild steel with full length doors on either side for ease of maintenance. All components used are pre treated against corrosion and finished in polyester coating.
BATTERY
High capacity maintenance free battery & Battery Charger
ALTERNATOR
Construction in accordance with BS5000, VDE0530, NEMAMG1-22, IEC-34, CSA C22-100
REGULATION
Voltage regulation is maintained within the limits of + or - 5% from no load to full load including cold to hot variations at any power factor between 0.8 lagging and
INSULATION
Stator and rotor insulation is class H standard,
SUPPRESSION
Radio and television suppression is provided to comply with B. S. S. 800/1983
BASE FRAME
The complete generating set s mounted as a whole on a heavy duty steel base frame.
Anti-vibration Mounts
The engine and alternator assembly is isolated from the base frame using anti-vibration mounts.
FUEL TANK
8 hour integral fuel tank mounted within the base frame of the generating set complete with contents indicator, filler neck and drain fittings.
GUARDS
The fan, fan drive and battery charging alternator drive are fully guarded for personnel protection. A stone guard protects the radiator core from accidental damage.
CONTROL PANEL
DEEP SEA Control System
CIRCUIT BREAKER
Mounted case circuit breaker is mounted on the machine in a steel enclosure complete with removable gland plates.
|
Powered by ChongQing Cummins Engines |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gensets model |
Prime power |
standby Power |
engine |
Alternator |
Open Sets |
Soundproof Sets |
Fuel consumption(L/h) |
|
kva |
kw |
kva |
kw |
Model |
NO.Cylinder |
L*W*H(mm) |
Weight(kg) |
Tank(L) |
Sound level at 7m(dBA) |
L*W*H(mm) |
Weight(kg) |
Tank(L) |
Sound level at 7m(dBA) |
100% |
50% |
|
R-CC350-1 |
350 |
280 |
385 |
308 |
NTA855-G2A |
6.L |
HCI444E |
3050*1120*1655 |
3100 |
400 |
105 |
3900*1400*2000 |
3900 |
520 |
80 |
72.5 |
37.7 |
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd., established in 1982, is a manufacturer of a wide variety of diesel generator sets and portable power supplies. We are able to offer high quality diesel generator sets with imported engines, trailer-mounted power stations, mobile and container power stations, and even bunker power generator sets.
Our products are suitable for such industries as defense, telecommunications, transportation and natural resources. Additionally, buildings including hospitals, banks, and offices may use our power stations as either a mobile or stationary backup power supply. We accept special orders from clients and are able to meet all kinds of special technical requirements.
As a Sino-foreign joint-venture (Ruichang Gold Co., Ltd. Hong Kong and Wuxi Ruichang Electro Equipment Plant), we aim for the highest quality standards. We are ISO9001 certified and our products are manufactured according to strict internal quality control standards.
Our company principle is "Customers and credibility first" and always provide superior services and free consultation. Whether your inquiries are regarding product selection, systems integration, generator room designs or other technical details we will be happy to assist you with your needs.
We welcome both new and existing customers to come take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
