The advantages are low fuel consumption, low emission, low noise and good cold start performance. Divided to Normal generator and automation generator according to the control system.
SF-WEICHAI Series generator setsare widely used for trailer power plants, field work-based power plants and silent power plant etc.
The manufacturing and testing execute GB/T2820-1997 Standards.
|

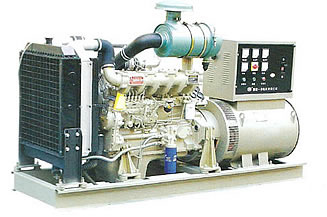

Model |
SF-W250GF |
Gen.
Set |
Rated Frequency (Hz) |
50 |
|
Rated Output Power (KW/KVA) |
250KW/313KVA |
|
Standby Output Power(KW/KVA) |
280KW/350KVA |
|
Rated Voltage (AC) (V) |
400 / 440 |
|
Rated Current (AC) (A) |
451 |
|
Power Factor (COSΦ ) |
0.8 (lag) |
|
Power Supply |
AC, 3-phase, 4-lines |
|
Dimension (L× W× H) (mm) open type |
2910 × 1000 × 1560 |
|
Net Weight (kg) |
2400 |
|
Engine |
Model |
WP12D395E21 |
|
Type |
In-line, 4-strokes, water cooled, |
|
direct injection, diesel engine |
|
Number Of Cylinders |
6 |
|
Fuel Consumption (g/kW× h) |
≤ 197 |
|
Rated Rotation Speed (r/min) |
1500 |
|
Starting Method |
Electric starting |
|
Cooling Method |
Closed cycle water-cooled |
|
Air Intake Type |
Natural |
|
Speed Regulation |
Mechanical |
|
Gen. |
Alternator Model |
MP-250-4 |
|
Rated Output Power (kW) |
250 |
|
Excitation Model |
Brushless, self-excitation |
|
Insulation Class |
H |
|
Voltage Regulation |
AVR |
Saffehanda Company is committed to diesel engines and power generating equipment research and development, production and sales. The leading products of our company are wind turbine(150W-1MW), gas generator set, R series and 495 series diesel engines, diesel generating sets, various complete sets of units and sparing parts etc. Which has a power scope of 2~2000KW, they are extensively used in generating equipments, agricultural machines, engineering machines, camion and boats or ships etc.
We are persisting in the principle of "benefits as the center, market as the direction, quality first and customers foremost". We will continue to innovate and reform in view of the trend of market and the requirement of clients. The company has a strict quality guarantee system and obtains ISO9001: 2000, ISO/TS16949: 2000 quality certificates, R series diesel engines are approved by Chinese CCS and ZY, EURO emission limits, Italian CE, American EPA and Indian CPCB certificates. There are 7 series products has been regarded as high-tech products in Shandong, 22 National patents have been applied, and be known as famous brand in Shandong. We have established the complete marketing network and sound service system. Our products are on sales throughout the whole country, moreover, have been exported to Asia, Africa, America, Europe etc, and have won universal praises from clients at home and abroad.
In recent years, we invested in the new 500-mu top-level casting and foundry center and assembly plant to combine the supply chain and upgrade production level from engine manufactory to the domestic leading diesel generators set supplier. The company developed steadily and was awarded as "high-tech enterprise", "Contract Abiding & Creditable Enterprise", "the 50 top industry enterprises" and the Grade A "Honest Taxpaying Company", "Shandong 100 Outstanding Machinery Industrial Enterprise", "Shandong Machinery Industry Civilization Enterprise", "Shandong 10 innovative Machinery Industrial Enterprise", "Technology-intensive and knowledge-intensive enterprises" etc.
