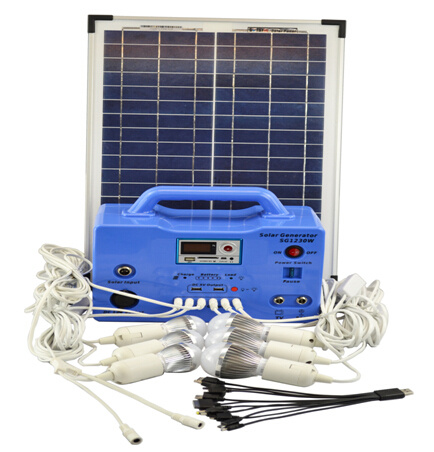

30W Solar DC System
Description:
This solar lighting system is ideal for places with no mains electricity such as outhouses, sheds, garages, farms, stables, as well as for camping, travel and any outdoor activities (e.g. a for a yurt). Six rooms lighting. DC TV , DC Fan.
The system is fully independent from the grid / AC power source and works purely based on sunlight energy. At daytime 10W solar panel charges a 12V battery inside the control unit, which then provides power to 3x 3W 12V LED lights & 3 X 5W 12V LED lights connected via front sockets on the control unit. In addition, there are two standard 5V USB socket for charging mobile phones and USB compatible devices (adapters for main USB-compatible mobile phones are included).
Model No.: | WS-1230W |
| Solar Panel: | 30 Watt Poly Crystalline (aluminum frame) |
| Battery: | 12V / 12Ah lead acid rechargeable battery |
| LED Lamp: | 3W LED X 3 PCS, 5W LED X 3 PCS with cable |
| Housing: | ABS plastic |
| Full Charge: | Max. 6 h per night |
| Protections: | Over Charge & Over discharge |
| Switch: | Manual Off-Auto |
| Solar Panel | 30W/18V |
| With 6m's cable |
| Battery | 12V-17Ah Lead Acid Battery |
| LED Bulb | 12V-3W x 3pc & 12V-5W x 3pc E27,4m's cable with Switch |
| & Socket,1 by 2 Extension Cable 5m*1pcs |
| USB | 10 in 1 mobile Charger |
| Rated Charging Current:2A |
| Rated Discharging Current: 2A for Each (total 6) |
| USB Charging Current 1A |
| Packing: color gift box,2ets/ctn, Solar Panel: 10pcs /ctn ; 630pc/20FCL,1600 sets/40HQ |
| Carton Size: 540*350*310mm/2pcs Solar Panel : 540*580*350mm/10pcs |
| Weight:17.5Kgs/ctn Solar panel: 37KG/CTN |
The easiest and the simplest form of energy that can be handled both in Micro and Macro levels is the solar energy. The other forms of energy can be made profitable only on a larger scale of working, unlike Solar. The greatest advantage of solar is the availability in abundance and the cost and risk of installation and maintenance of the products.
Solar energy refers primarily to the use of solar radiation for practical ends. Today, the energy from the sun is used for purposes like heating, cooling, lighting, transportation, and many more.
Solar technologies are broadly characterized as either passive solar or active solar; Depending on the way they capture and distribute solar energy or convert it into solar power.
Today, when we look at development, the first thing that pops into our minds is the presence of electricity. Our lights brighten at the flip of a switch; Our computers wake up with the touch of a button, our streets are powered by solar lights. Yet, over 1.5 billion people worldwide still lack electricity and nations still compete for limited energy resources.
Shenzhen Winsolar technology Co., Ltd, we choose to act.
We have the technical know-how, the scale of operations, the partnerships, and, most important, the vision to put renewable energy within reaches of everyone.
