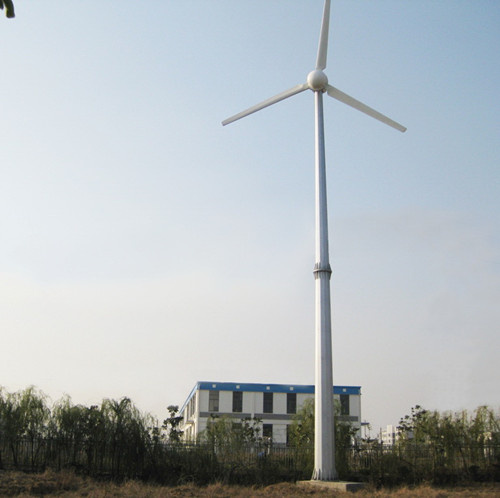

30kw Wind Turbine Generator for Utility Power

30kw Wind Turbine Generator for Utility Power
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Features of 30kW wind turbine generator system:

1) SCF technology
Hummer 30kW wind turbine generator set adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator's weight and size down to 25% to 30% of the traditional one, and the production efficiency is 25% to 30% higher. This ensures that the generator functions perfectly in small wind condition.

2) NSK bearings
Hummer 30KW Wind Turbine Generator set adopt the NSK bearings which are produced by the renowned bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. As well as enabling smooth and quiet rotation, they also perform an important function by taking on the motor's load.

3) PLC control
Hummer 30kW Wind Turbine Generator's controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.

4) Low noise
The design of the rotor blade of Hummer 30kW Wind Turbine Generator set absorb the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.

5) High reliability
Hummer 30KW Wind Turbine Generator set adopt triple braking protection system, which are the yawing mechanism, the electromagnetic braking system and the hydraulic braking system to regulate the rotation of the wind turbine. It is easy and convenient to shut down the whole system both manually and automatically.
Model No.H10.0-30KW
Configuration3 Blades, Horizontal axis, Upwind
Rotor Diameter10m
 Direction of RotationClockwise looking upwind
Blade MaterialFiberglass reinforced composite
Rated Power30 kW @ 11m/s
Charging Voltage360 Vdc
System Output Voltage380 Vac three phase
Start up Wind Speed2.5m/s
Rated rotating rate160 r/min
Survival Wind Speed50 m/s
AlternatorPermanent magnet alternator, SCF technology
Alternator Weight800kg
Generator Efficiency>0.92
Energy monitoring & User controlSiemens PLC controller with touch screen
GearboxNone, Direct drive with front generator design
Over Speed RegulationAuto Yawing
Shutting Down MethodManual & Automatic electromagnetism Braking
 Warranty 2 years

Prod Model: H10.0-30000W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power: 30000W
Maximum Output Power: 45000W
Generator Efficiency: >0.92
Certificate: CE, ISO, UL
Start-up Wind Speed: 2.5m/S
Working Wind Speed: 3m/S to 25m/S
Survival Wind Speed: 50m/S
Over Wind Speed Control: Electromagnetism Brake, Hydraulic Brake, Yawing
Shut Down Method: Auto or Manual
Blade Diameter: 10m
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Phase: Three Phase
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.

We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.

There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.

All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.

Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.

Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
