| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

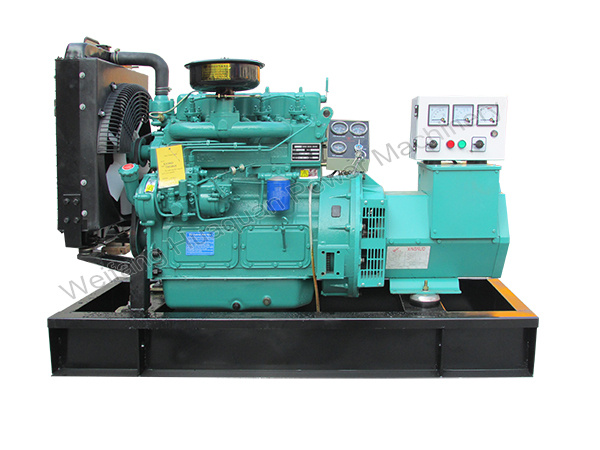

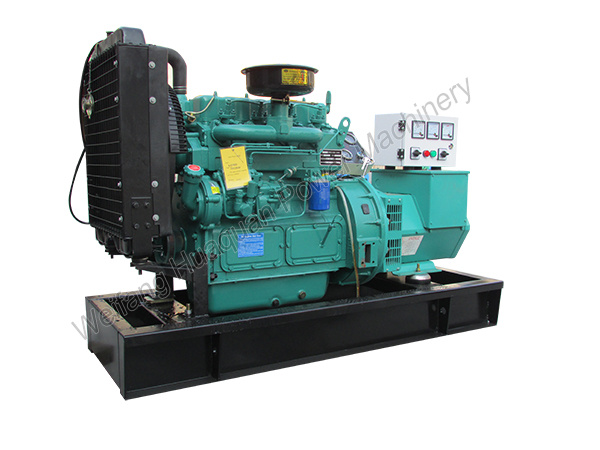

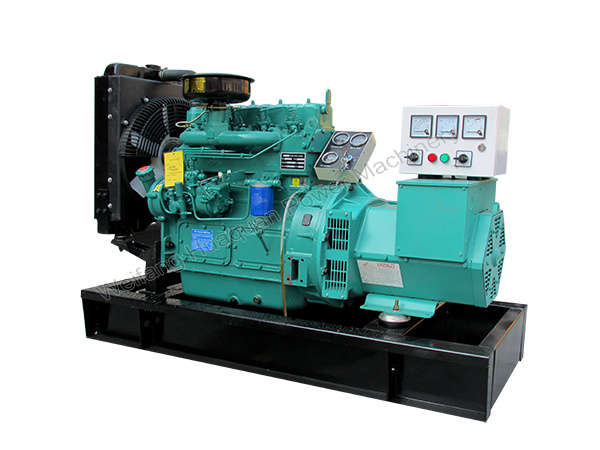

Description of 30KW cummins diesel generator:
1) Generator Power: Rated power 30KW, Standby power 33KW.
2) Generator Type: Open type, Soundproof type, Trailer type, Containerization type.
3) Engine Brand: WEICHAI.
4) Brushless Alternator: Stamford, Marathon, LEROY SOMER, etc.
5) Automatic Control Module: Deepsea, Harsen, Smartgen, etc.
6) Applies to: Mines, Buildings, Oil fields, Hospitals, Schools Hotels, etc.
Parameters of 30KW cummins diesel generator:
Cummins Diesel | Genset Model | HQ30GF |
| Rated Power | 30KW/37.5KVA | |
| Standby Power | 33KW/41.25KVA | |
| Rated Frequency | 50Hz | |
| Rated Voltage | 400/230V | |
| Rated Current | 54 A | |
| Rated Speed | 1500rpm | |
| Power Factor | 0.8 (LAG) | |
| Connection Type | 3P4W | |
| Cummins Engine | Model | K4100D |
| Type | In-line, 4-Stroke. | |
| Rated Power | 36kw | |
| Standby Power | 40kw | |
| Rated Speed | 1500 rpm | |
| Cylinder No. | 4 Cylinders | |
| Bore × Stroke | 102×120 mm | |
| Displacement | 3.9 L | |
| Start Method | Electric | |
| Rated Fuel Consumption | 7.6 L/h | |
| Aspiration Type | Turbocharged | |
| Speed Governor | Mechanical | |
| Cooling method | Water cooled | |
| Stamford Alternator | Rated Power | 30KW |
| Rated Voltage | 400/230 | |
| Rated Current | 54A | |
| Rated Speed | 1500rpm | |
| Connection Type | 3P4W | |
| Power Factor | 0.8 | |
| Excitation Type | Brushless | |
| Insulation Type | H | |
| Protection Type | IP22 | |
| Voltage Regulator | Automatic (AVR) |
| Prod Model: | HQ30GF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Out Power: | 37.5/30kVA/Kw |
| Fuel Tank: | According to Customer Request to Match |
| Model Of Generator: | Stanford |
| Start Method: | Electric Start |
| Regulator: | AVR |
| Warranty: | 18 Months |
| Certificate: | CE, ISO9001 |
| Net Weight: | 640kg |
| Stroke: | Four Stroke |
| Type: | Basic Diesel Generator |
| Cooling Method: | Water Cooling |
| Installation Method: | Fixed |
| Output Type: | AC Single Phase |
