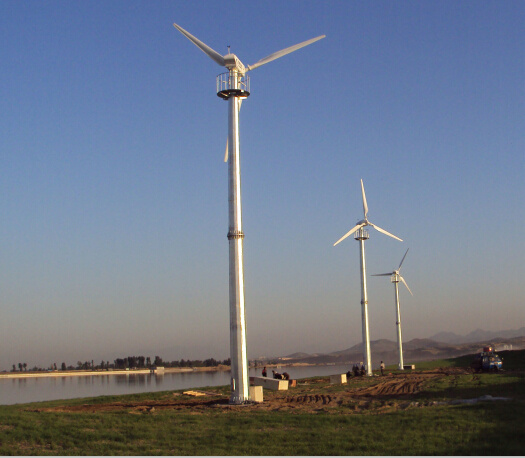

30KW Variable Pitch Blades Wind Turbine (JD-30KW)
1) these turbines are used the 24-poles Low speed permanent magnet generator, rated rotation speed is 185rpm
2) which are adopted to the traditional tail-vane tracking wind direction then adjusting turbine head running always toward down-wind
3) A mechnism brake system is installed in turbine housing for stopping generator at an exceed security wind speed
4) Adopted the aerodynamics blades which is made of high-intensity fiber-glass and carboform, to sure the turbin can bear more strong wind speed5) Equipped with the 15m galvanized tapered tower with a working station fence, the technicians can stand at the working station for installation and commissioning
6) It is up to you choose on-grid or off-grid application for these turbines, one off-grid system can be equipped with a dual powers inverter, it can use the utility grid power together with wind power to supply home, the wind power as main power and utility grid power as standby power, its voltage output can be designed against users requirements
7) The on-grid system is equipped with Sungrow controller and inverter, the on-grid voltage can be signle phase 240Vac or three phase 380-415Vac
8) Low noise (Under 60dB), never effect people working and rest.
System |
|
Type: Single Phase | On/Off-Grid System |
Configuration Diameter | Horizontal Axis |
Rotor Diameter: | 11m |
Location Relative To Tower | downwind |
Rated wind speed | 120rpm |
Yaw system | By Variable Pitch System, Free, Passive |
|
|
Performance Parameter |
|
Rated Electrical Power | 30KW@ 12m/s |
Cut-in wind speed | 3m/s |
Cut-out wind speed | 25m/s |
Shut-down (high wind) | 26m/s |
Security wind speed | 50m/s |
Annual Power Output | 74600khw(Minimum Output) |
| 116640kwh(Maximum Output) |
Blades Number of blades/Length | 3Pcs/ 5m |
Material/ Weight | Epoxy/Glass Fibre/ |
|
|
Generator |
|
Generator Type / Frequency | 3phase PMG/50Hz |
Voltage Output | 3phase@50Hz, 0-500Vac |
Rated Power output | 30KW@12m/s |
Maximum power output | 32KW@14-25m/s |
Insulation | Class F |
|
|
Charge Controller |
|
Input voltage from generator | 0-500Vac/50hz |
Charge voltage /Time | 500V0DC/ about 18 hours |
Battery Marching Quantity Warranty Time | 100Pcs x 12V-200AH Batteries 2 Years |
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
