Lutian Machinery Co., Ltd. Was founded in August, 2002, which covers an area of 120000.With the goal of becoming a respectable enterprise in its industry,Lutian has been dedicated to the researching and development,manufacturing of generators,water pumps and high pressure washers for more than 13 years.During the last decade,Lutian has gained good reputation for its advanced management,proven quality,reliabilty and respect for the environment,labour and safety.The rising of Lutian is witnessed by all.
Both domestically and internationally.Today the sales network of Lutian has reached more than 92 countries and regions all over the world,generating sales of a hundred million USD annually.Now Lutian has grown into one of the biggest generator and high pressure washer manufacturers and exporters in china.As a customer-oriented company,Lutianese cherish the philosophy of "Effort,moves customer "and the satisfaction of customer will always be at the heart of Lutian's new and future conquests.

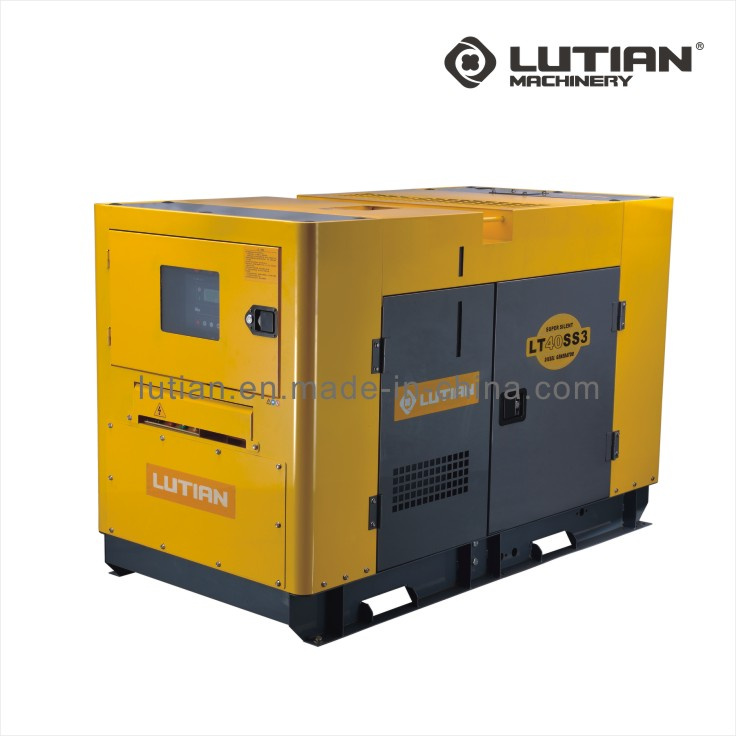

LT40SS LT40SS3Feature:.Long service life.Economic, low fuel consumption.Advanced direct fuel injection system.Large fuel tank ensuring hours of continuous output.Ideal for home emergency use or as standby power supply.Large silent muffler & air-cleaner, reducing exhaust and intake noise.A variety of specially-designed control panel available for different marketsSPECIFICATIONS:| Model | LT40SS | LT40SS3 |
| Rated Freqyency(Hz) | 50/60Hz | 50/60Hz |
| Rated Output(KW) | 30KW | 35KW |
| Rated Output(KVA) | 32KVA | 35KVA |
| Max.Output(KVA) | 35KVA | 39KVA |
| Rated Voltage(V) | 220V | 220/380V |
| Rated Current(A) | 40.4A | 48.6A |
| Revolution(r/min) | 1500r/min | 1800r/min |
| Generator | XN184H |
| Pole No | 4 |
| Phase | Single-phase/Three-phase |
| Excitation System | Brushless,self-excitation,Constant voltage(with AVR) |
| Power Factor | 1.0/0.8 |
| Insulation Grade | H |
| Engine Model | YD4102 |
| Type of Cylinder | Four-cylinder In-lined,Four-Stroke,Direct injection Water-cooled engine |
| BorexStroke(mm) | 102x113mm |
| Total Displacement(L) | 2.771L |
| Compression Ratio | 18.2:1 |
| Rated Output(KW) | 35/39KW |
| Cooling Water Capacity(L) | 3.9L |
| Radiator Tank Capacity(L) | 8L |
| Lubrication System | Pressure Splash Compound |
| Lube Oil Type(L) | CD Grade or SAE 10W-30,SAE15W-40 |
| Lube Oil Capacity(L) | 8.5L |
| Starting System | 12VElectric Start |
| Charging Generator Capacity | 14V20A |
| Genset Panel Model | Intellgent Panel |
| Terminal for Output | with |
| Noise Lever(7m)db(A) | 65/70 |
| Type | Super-silent Type |
| Fuel Tank Capacity(L) | 95L |
| Continuous Operating Time(h) | 9.5/7.5 |
| Dimension(LxWxH)(mm) | 1900x950x1200 |
| Net Weight(kg) | 885kg |
Lutian Machinery Co., Ltd. Was founded in August, 2002, specialized in researching, developing and
Manufacturing high pressure washers, generators and water pump. Our company is the Vice-chairman Unit of China Agricultural Machinery Industry Association and National Director Unit for
Plant Protection&High Pressure Washer Field. Our company insists on the scientific development
Concept. Depending on advanced business concept, lean management, leading technology, high
Quality products and services, our company grows stronger year by year. At present our company
Has the staff of almost 1000 people, factory building area of 100000 square meters and property of more than 280 million RMB. Our sales network covers more than 60 countries and regions in Europe, North and South America, Southeast Asia and Middle East, etc. The annual turnover is more
Than 600 million RMB and export value is more than 80 million us dollars, We are one of the biggest
High pressure washer manufactures and exporters in China.
