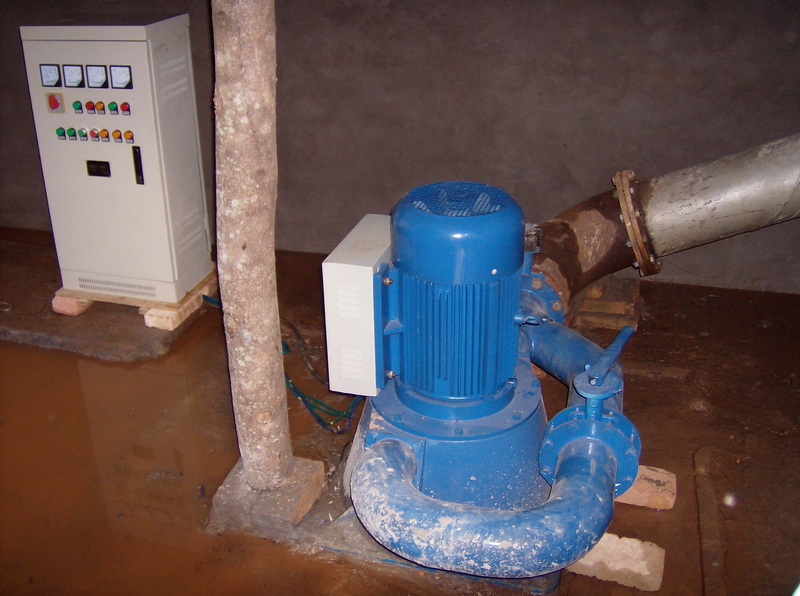

30KW Turgo Turbine Generator
T38-30SCTF4/6-Z is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed. That is, it is fed directly to the appliances. No need of battery and inverter, T38-30SCTF4/6-Z offers a complete water to wire system with integral turgo turbine, generator and valve flow control. Designed to deliver ready-to-use 400V AC /3 phase power, it employs a brushless, special rare-earth permanent magnet alternator and therefore has a higher efficiency than ordinary alternator. Output voltage and frequency are controlled by the electronic load controller(with ballast). As little as 90 to 120 liter per second (l/s) falling 45 meter through a pipe can supply enough power to comfortably run a household. This machine is compact, easy to install and requires little maintenance except lubricating the bearing every few months.
The turgo turbine was designed for families in remote areas to produce power for their households easily and inexpensively. These units have been incredibly successful and today thousands are installed throughout the world.
|
Item |
Parameters |
|
Model |
T38-30SCTF4/6-Z |
|
Water Head Range |
38 – 45 meter(125 – 148 feet) |
|
Water Pressure |
64 PSI |
|
Water Flow Range |
100 – 120 liter/second |
|
Rated Power Output |
30KW |
|
Intended voltage |
Three phase, AC380V~ |
|
Rotary Speed |
1500 rpm |
|
Turbine runner type |
Turgo |
|
Runner diameter |
340 mm |
|
Number of buckets |
14 |
|
Number of nozzles |
1 |
|
Jet diameter |
250-300 mm |
|
Generator |
Single phase permanent magnet alternator |
|
Power factor |
1.0 |
|
Insulation level |
B/B |
|
Protection level |
IP44 |
|
Temperature |
-25~+50C |
|
Humidity |
≤90% |
|
Safety protection |
Short circuit, over load, Islanding, Grounding fault |
|
Packing material |
Fiberboard |
|
Packing size |
120x90x115cm, 62x46x127cm, 60x55x50cm, |
|
Gross weight |
490 kg, 60kg, 60kg |
