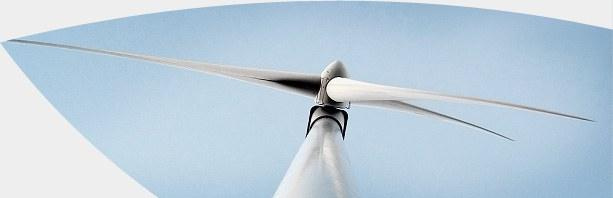

30kw Horizontal Axis Wind Turbine (UOK13-30KW)
| Price: |
US $ 38333-48333/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
. Model UOK13-300kw
Wind turbine data
Rated powerKW 30
Diameter of wind wheel m 13
Cut-in wind speed m/s 3
Rated wind speed m/s10
Cut out wind speed averageof10 minutes)m/s25
Survive wind speed(max 3 seconds) m/s50
|
No. |
Item |
unit |
parameters |
|
|
Manufacturer |
Qingdao Saffehanda Power Machinery Co.,Ltd |
|
|
Model |
|
UOK13-300kw |
|
1 |
Wind turbine data |
|
|
|
1.1 |
Rated power |
KW |
30 |
|
1.2 |
Diameter of wind wheel |
m |
13 |
|
1.3 |
Cut-in wind speed |
m/s |
3 |
|
1.4 |
Rated wind speed |
m/s |
10 |
|
1.5 |
Cut out wind speed averageof10 minutes) |
m/s |
25 |
|
1.6 |
Survive wind speed(max 3 seconds) |
m/s |
50 |
|
1.7 |
Survive environment temperature |
|
-30~+50 degree centigrade |
|
1.8 |
Working environment temperature |
|
-20~+40degree centigrade |
|
1.9 |
Design Lifespan |
year |
≥20 |
|
1.10 |
Estimate lifespan |
year |
20 |
|
2 |
Wind wheel /model |
|
|
|
2.1 |
Blade materials |
|
Glass fiber reinforced resin |
|
2.2 |
No. Of blades |
piece |
3 |
|
2.3 |
Axle inclination of wind wheel |
° |
3.4 |
|
2.4 |
Wind wheel angle |
° |
0 |
|
2.5 |
Max chord length of blade |
m |
0 |
|
2.6 |
Swept area |
m2 |
|
|
2.7 |
Rotation direction(see from upwind direction) |
|
Clockwise |
|
2.8 |
Location of wind wheel |
|
Upwind direction |
|
3 |
Gearbox/direct drive |
|
|
|
3.1 |
Drive type |
|
Direct drive |
|
4 |
Generator/model |
|
|
|
4.1 |
Type |
|
Permanent magnet direct-drive generator |
|
4.2 |
Manufacturer |
|
Saffehanda |
|
4.3 |
Rated power |
kW |
30 |
|
4.4 |
Max power |
kW |
45 |
|
4.5 |
Rated rotor speed |
rpm |
65 |
|
4.6 |
Insulation degree |
|
F |
|
4.7 |
Protection class |
|
IP54 |
|
5 |
Bearing |
|
|
|
5.1 |
Manufacturer |
|
SKF Group |
|
6 |
Brake system |
|
|
|
6.1 |
Main system |
|
Yaw+electromagnetic speed/hydraulic brake |
|
7 |
Variable pitch system/model |
|
|
|
7.1 |
type |
|
Auto centrifugal pitch |
|
7.2 |
Power control |
|
Auto trace |
|
8 |
Yaw system/model |
|
|
|
8.1 |
Model/design |
|
auto,2 electric geared motors |
|
8.2 |
Control |
|
Activate feedback |
|
8.3 |
Bearing |
|
Slewing bearing |
|
8.4 |
Yaw control speed |
°/min |
0.4 |
|
8.5 |
Anemometer model |
|
Wind cup, wing |
|
9 |
Control system/model |
|
|
|
9.1 |
model/design |
|
Controller |
|
9.2 |
Rated power factor |
|
0.9 |
|
9.3 |
Remote control |
|
PLC start\stop etc |
|
9.4 |
Inverter |
output |
On-grid &off-grid inverter |
|
10 |
Anti-thunder protection/model |
|
|
|
10.1 |
Anti-thunder design standard |
|
IEC 61024-IGL 2003 certificate |
|
10.2 |
Grounding resistance |
Ohm |
<4 |
|
11 |
Tower/model |
|
|
|
11.1 |
Type |
|
Cone |
|
11.2 |
Diameter of up flange |
m |
18 |
|
11.3 |
Diameter of down flange |
|
Anticorrosion paint |
|
11.4 |
Height (down flange to hub center) |
|
White |
|
12 |
Main components |
|
|
|
12.1 |
Shell |
|
generator\yaw structure\brake system |
|
12.2 |
Control system |
|
controller\inverter(turn direction\turn speed\self-protection\untwist\brake\test\data presentation\alarm etc) |
|
12.3 |
Wind wheel |
|
Hub\centrifugal pitch structure and blades |
|
12.4 |
Tower |
|
Cone |
| Prod Model: |
UOK13-30KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rotating Shaft: |
Horizontal |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Lift Force |
Saffehanda Company is committed to diesel engines and power generating equipment research and development, production and sales. The leading products of our company are wind turbine(150W-1MW), gas generator set, R series and 495 series diesel engines, diesel generating sets, various complete sets of units and sparing parts etc. Which has a power scope of 2~2000KW, they are extensively used in generating equipments, agricultural machines, engineering machines, camion and boats or ships etc.
We are persisting in the principle of "benefits as the center, market as the direction, quality first and customers foremost". We will continue to innovate and reform in view of the trend of market and the requirement of clients. The company has a strict quality guarantee system and obtains ISO9001: 2000, ISO/TS16949: 2000 quality certificates, R series diesel engines are approved by Chinese CCS and ZY, EURO emission limits, Italian CE, American EPA and Indian CPCB certificates. There are 7 series products has been regarded as high-tech products in Shandong, 22 National patents have been applied, and be known as famous brand in Shandong. We have established the complete marketing network and sound service system. Our products are on sales throughout the whole country, moreover, have been exported to Asia, Africa, America, Europe etc, and have won universal praises from clients at home and abroad.
In recent years, we invested in the new 500-mu top-level casting and foundry center and assembly plant to combine the supply chain and upgrade production level from engine manufactory to the domestic leading diesel generators set supplier. The company developed steadily and was awarded as "high-tech enterprise", "Contract Abiding & Creditable Enterprise", "the 50 top industry enterprises" and the Grade A "Honest Taxpaying Company", "Shandong 100 Outstanding Machinery Industrial Enterprise", "Shandong Machinery Industry Civilization Enterprise", "Shandong 10 innovative Machinery Industrial Enterprise", "Technology-intensive and knowledge-intensive enterprises" etc.
