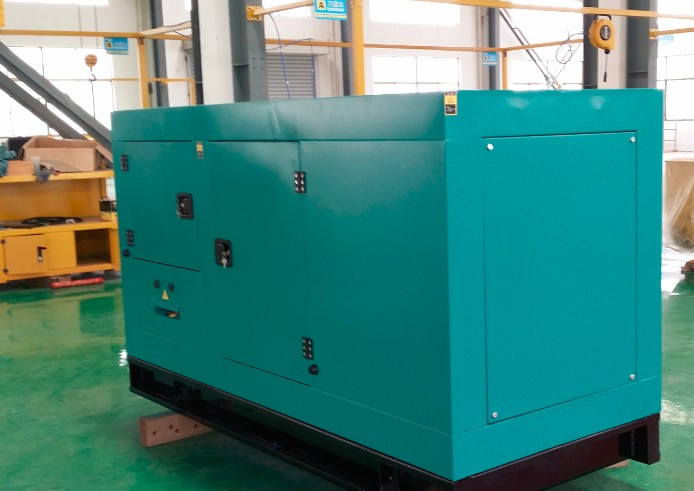

30kw Diesel Silent Generator with Cummins Engine (4BT3.9-G2)
Silent type generators adopt multiple excellent silent decreasing constructions and decrease noise level to 15-35dB. The running doesn't have negative impact on normal life.
The generators apply to generating at night and places where there has strict noise
Standard requirement such as residence areas, hospitals, offices and so on.
Perrect engine and low omission make the silent type generators efficient and green, They won't contaminant the environment even when used in the open.
Silent Type Generator's Characteristics:
1. Base fuel tank for 8 continuous running hours
2. Manual start or start automatically
3. Mechanical speed regulation or electronic speed regulation
4. All the advantage of other generators contained in one.
Muffler with amazing performance:
1. High quality noise reduction material and design
Muffler for residence use and noise decreasing pipes decrease noise enormously and make the generators run with a little noise which has negative impact on normal life.
2. Fully sealed noise decreasing system
50mm new type noise absorbing cotton on the inwall of the enclosure and special sealed rubber used around the enclosure's door can absorb noise and prevent the heat spread perfectly. Not only special noise decreasing rubber is used around the door, noise decreasing concept is also adopted in design which can also help with decreasing noise perfectly.
Silent serial generators set: We design product basic on advanced technology of ACOUSTICS, it's noise level on 68db-78db(7m away) which suitable for working on hospital, uptown,
Office building and so on anywhere requesting low noise. In this serial two model products thereare silentcanopy and silent mobile.
|
Product No. |
C30GF |
|
Prime power |
30KW |
|
Max power |
33KW |
|
Frequency |
50Hz |
|
Voltage |
380/220V |
|
Engine |
CUMMINS 4BT3.9-G2 |
|
Engine governor |
electric |
|
Fuel consumption |
9.3L/H |
|
Alternator |
Stamford PI144J |
|
Controller |
DEEP SEA DSE6020 |
|
Cooling method |
water cooled |
|
size |
1700X750X1150mm(OPEN)
2400X1000X1350mm(SILENT) |
|
weight |
840kgs(OPEN)
1160kgs(SILENT) |
|
Canopy |
powder coated, cold-roll steel sheet, optional |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
