Working Principle:

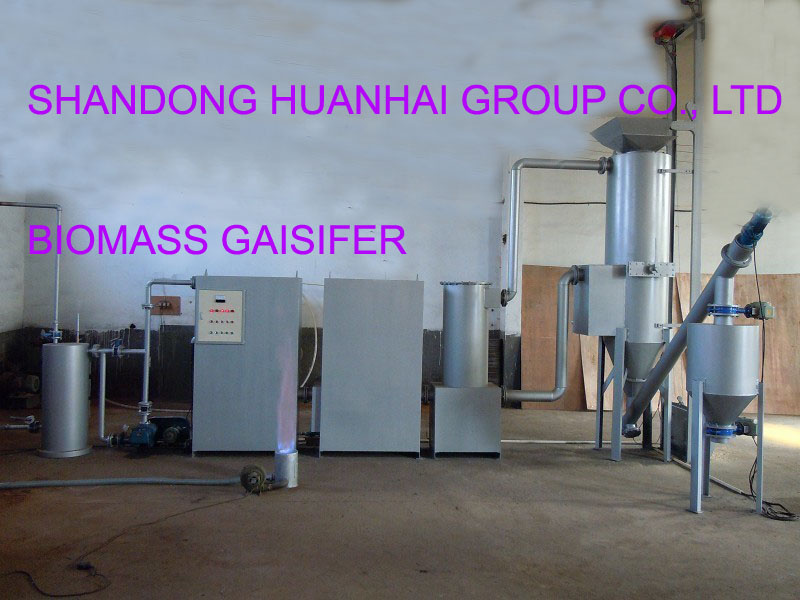

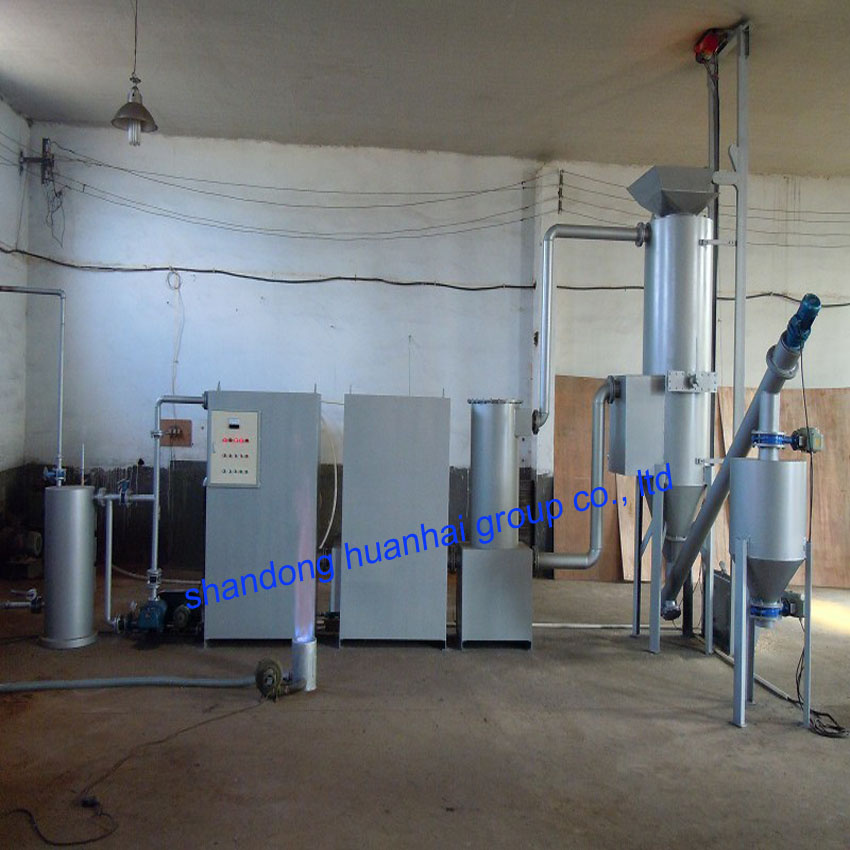

The principle of gasifying process: biological materials enter reactor, and undergo heat drying. As the temperature increases, the volatile is separated out and split. After splitting, the gas and carbon meet supplied air in the oxidation area and combustion takes place. The combustion results in CO and vapor. The heat from combustion is utilized to maintain dryness, splitting reaction and endothermic reaction of the underneath reversion area. The gas resulted from the combustion goes through the reversion area and reacts with carbon layer (C+CO2 =2CO, C+HO2 =H2 +CO), which produces burnable gas consisting of CO, H2, CH4, CmHn.
Raw Material:
Any type of Agro-Forestry waste can be used with moisture below 18%.

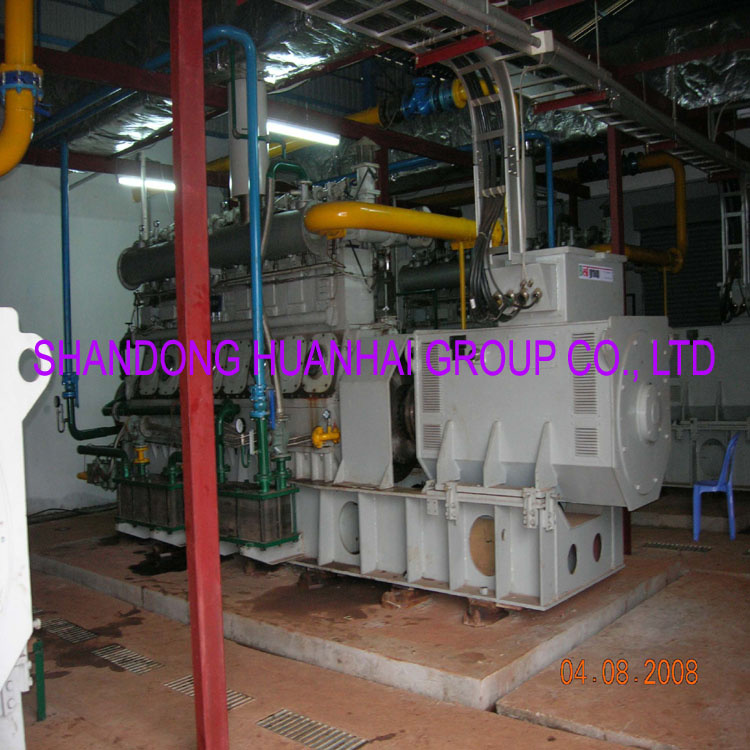

Biomass gasifier can match generator 20Kw up to 800Kw.Groundnut-shell, Sugarcane residue, Caster Shells/Stalk, Saw dust, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco waste, Mustard Stalk, Jute waste, Bamboo Dust, Tea waste, Wheat Straw, Palm husk, Soybeans husk, Rice Husks, Forestry wastes, Waste paper, Cardboard, Wood Chips and many other Agro wastes.
MODEL | Gas output | Generator power | Material consumption |
KX-50B | 50M3/hour | 20Kw | 25 - 30kg/Hour |
KX-100B | 100M3/hour | 30Kw | 50 - 60Kg/Hour |
KX-150B | 150M3/hour | 50Kw | 70 - 90Kg/Hour |
KX-200B | 200M3/hour | 70Kw | 100 - 120Kg/Hour |
KX-300B | 300M3/hour | 100Kw | 150 - 160Kg/Hour |
KX-400B | 400M3/hour | 120Kw | 200 - 220Kg/Hour |
KX-600B | 600M3/hour | 200Kw | 300 - 320Kg/Hour |
KX-800B | 800M3/hour | 260Kw | 400 - 420Kg/Hour |
KX-1000B | 1000M3/hour | 350Kw | 500 - 520Kg/Hour |
KX-1200B | 1200M3/hour | 400Kw | 600 - 620Kg/Hour |
KX-1500B | 1500M3/hour | 500Kw | 750 - 800Kg/Hour |
KX-2000B | 2000M3/hour | 700Kw | 1000 - 1200Kg/Hour |
KX-2400B | 2400M3/hour | 800Kw | 1200 - 1400Kg/Hour |
KX-2600B | 2600M3/hour | 880Kw | 1400 - 1500Kg/Hour |
KX-3000B | 3000M3/hour | 1MW | 1600 - 1800Kg/Hour |
Shandong huanhai machinery group Co., Ltd is one of largest machineries manufacture in China. It consisted of 3 factories, with more than 800 workers and engineers.
We speclized in manufacturing and exporting of all kinds agricultural machineries, construction machineries and plastics machineries. Our factories have more than 20 years manufacturing experience and can supply all kinds of high quality machinery and equipment. Many of our products have passed CE approval and are exported to European and American market.
We pay much attention to innovation of products, also we adopt all usuful suggestions from customers to improve our products, we can desigh and arrange production according to your reasonable suggestions.
Our main products is as below:
(1 ) agricultrual machineries:
15tpd /20tpd/30tpd/50tpd/70tpd/100tpd/150tpd rice milling plant
TF40 TF50 TF70 series maize mill
Sh41 sh81 sh101 sh121 sh151 sh181 gn12 gn15 power tiller
15HP 20HP 25HP 30HP 35HP 45HP 55HP 72HP 82HP 100HP 120HP four wheel tractors
Yl95A yl100 yl125 yl130 yl150 yl160 oil press
2t to 100t oil pre--pressing plant, solvent extraction plant, refinery plant.
1000ton per year charcoal briequette plant
(2) plastics machineries:
PE/PVC double wall corrugated pipe extrusion line 75-500mm
PP/pet strap band extrusion line 8-20mm
XPS board extrusion machine
WPC profiles extrusion line
PP-r cold and hot water pipe extrusion line
...
With our continued efforts now our all kinds of machineries and equipments have been exported to Turkey, Mexico, Russia, Ukraine, Iran, u. A. E, Saudi arab, Australia, India, Peru, Chile, sri-lanka, South Africa, Benin, Madagascar, Tanzania, Syria, Egypt etc more than 40 countries.
