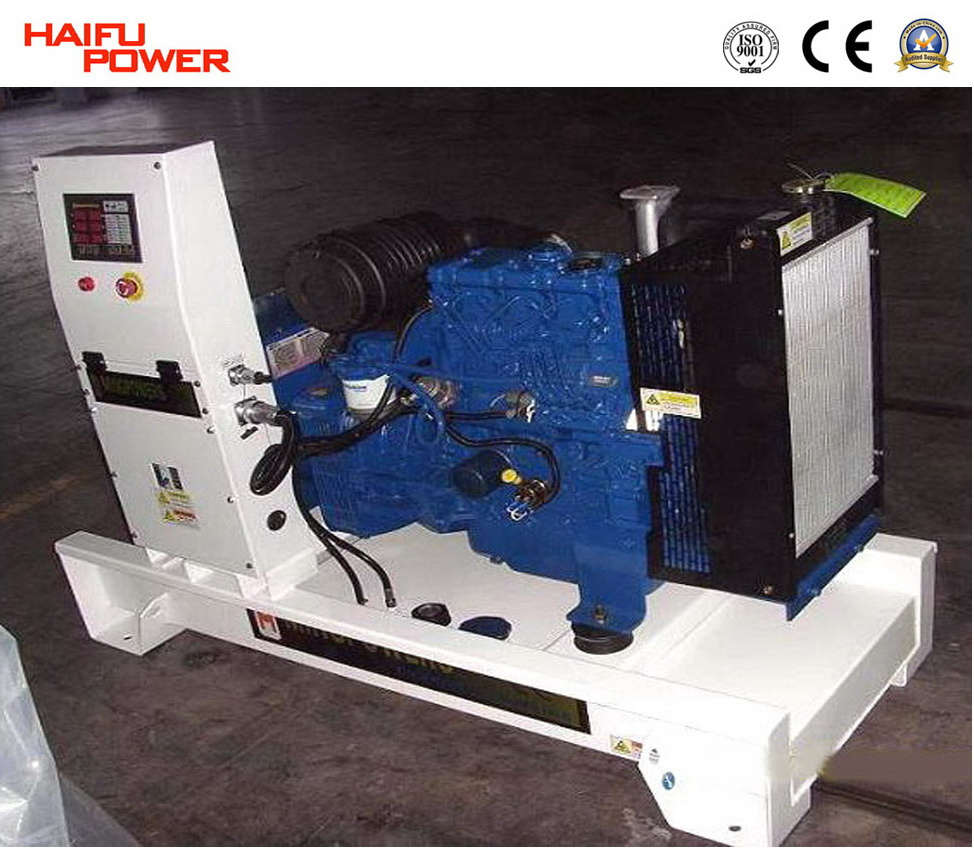

30kVA EPA Approved Perkins Diesel Generator Set/ EPA Generator/ Generator Set (HF24P1)

1.30kVA EPA Approved Perkins Diesel Generator Set/ EPA Generator/ Generator Set
2. Powered by Perkins Engine
3. With Stamford / Leroy Somer / Marathon Alternators
4. With CHINT / ABB MCCB & Electronic Components
5. Electric Start with Battery
6. Base Integrated Fuel Tank
7. ATS, Deepsea / ComAp / Smartgen Controller
8. Comply with ISO8528/GB2820
9. After-sale Services

UK Origin Perkins Series Diesel Generators Power From 10KW up to 1500KW, with compacted structure and best configuration.

Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
World most famous brand diesel engine. UK origin Perkins series engine.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
ATS, Base Fuel Tank as Options.

Control Systems

Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.

LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.

LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.

ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and
Frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.

Engine

Heavy duty diesel engine
Four stroke, water cooled
12V and 24V stater and charge alternator
Cooling radiator and fan
Maintenance free battery including ract and cable
Flexible fuel connection hoses and manual oil sump drain valve
Exhaust silencer

Alternator

Brushless, single bearing, flexible disc
Insulation class: H
Protection class: IP23
Self-exciting and Self-regulation

Canopy

All canopy designed with modular principles
All metal canopy parts painted by electrostatic polyester power paint
Soundproof design ensure that the noise level be controlled in small scope
Convenient to lift and move
Easy to maintenance and operate

Base Frame

Base frame including position for forklift and crane
Integral fuel tank
Daily fuel tank continuously supply for 8-24 hours
Fuel tank easy to maintain and clean
Anti-vibration pads are flexed between engine and alternator.

Control System
Control, monitor and protect the Generator Set including:

High water temperature
Low oil pressure
Over and under speed
Over current
Under/Over generator voltage
Start and stop failure
Low and high battery voltage
Charge fail
Emergency stop

General Data Sheet

Genset Model	Prime / Standby Power		Engine Model	Alternator Model	No. of Cylinder	Fuel Consumption (L/H)	Genset Size (mm)			Weight    (KG)
	KVA	KW	Perkins	Stamford			L	W	H
HF07P	9 / 10	7.2 / 8	403D-11G	BCI164B	3	2.4	1320	552	1258	400
HF10P	13.5 / 15	10.8 /  12	403D-15G	BCI164C	3	3.48	1320	552	1258	450
HF16P	20 / 22	16 / 17.7	404D-22G	BCI184E	4	5.4	1320	552	1258	470
HF24P	30 / 33	24 / 26.4	1103A-33G	BCI184G	3	7.1	1470	620	1280	520
HF30P	37 / 41	30 / 33	1103A-33TG1	BCI184H	3	10.7	1470	620	1280	580
HF36P	45 / 50	36 / 40	1103A-33TG1	BCI184J	3	10.7	1470	620	1280	620
HF48P	60 / 65	48 / 52	1103A-33TG2	UCI224E	3	14.1	1470	620	1280	650
HF52P	65 / 73	52 / 58	1104A-44TG1	UCI224F	4	14.8	1590	710	1300	780
HF64P	80 / 88	64 / 70	1104A-44TG2	UCI224G	4	18.7	1590	710	1300	850
HF72P	90 / 100	72 / 80	1104C-44TAG2	UCI224G	4	21	1800	790	1350	980
HF80P	100 / 110	80 / 88	1104C-44TAG3	UCI274C	4	24	1800	790	1350	1050
HF100P	125 / 140	100 / 112	1006TAG	UCI274E	6	29	2300	820	1380	1200
HF120P	150 / 165	120 / 132	1006TAG2	UCI274F	6	41	2450	880	1500	1350
HF144P	180 / 200	144 / 160	1106C-E66TAG4	UCI274G	6	48.5	2600	910	1680	1550
HF160P	200 / 220	160 / 176	1306C-E87TAG3	UCI274H	6	45.2	2980	980	1840	2050
HF180P	225 / 245	180 / 196	1306C-E87TAG4	UCI274J	6	48.5	2980	980	1840	2150
HF200P	250 / 275	200 / 220	1306C-E87TAG6	HCI444C	6	45	2980	980	1840	2550
HF280P	350 / 400	280 / 320	2206C-E13TAG2	HCI444E	6	70.6	3100	1050	1980	2950
HF320P	400 / 450	320 / 360	2206C-E13TAG3	HCI444F	6	81.1	3100	1050	1980	3000
HF360P	450 / 500	360 / 400	2506C-E15TAG1	HCI544C	6	99	3300	1150	2195	3300
HF400P	500 / 550	400 / 440	2506C-E15TAG2	HCI544D	6	106	3300	1150	2195	3950
HF480P	600 / 660	480 / 528	2806A-E18TAG1A	HCI544E	6	95	3500	1150	2195	4550
HF520P	650 / 712	520 / 570	2806A-E18TAG2	HCI544F	6	104.9	3500	1150	2195	4700
HF580P	725 / 800	580 / 638	4006-23TAG2A	LVI634B	6	157	3900	1470	2195	5000
HF640P	800 / 900	640 / 720	4006-23TAG3A	LVI634C	6	172	4400	1470	2195	5250
HF728P	910 / 1000	728 / 800	4008TAG1A	LVI634D	8	206	4800	2050	2445	7400
HF800P	1000 / 1100	800 / 880	4008TAG2A	LVI634E	8	214	4800	2050	2445	7650
HF1000P	1250 / 1375	1000 / 1100	4012-46TWG2A	LVI634G	12	205	5000	2300	2875	8150
HF1090P	1363 / 1500	1090 / 1200	4012-46TWG3A	PI734B	12	205	5000	2300	2875	8950
HF1200P	1500 / 1650	1200 / 1320	4012-46TAG2A	PI734C	12	201	5000	2300	2875	9150
HF1360P	1700 / 1875	1360 / 1500	4012-46TAG3A	PI734D	12	212	5000	2300	2875	11200
HF1400P	1750 / 1925	1400 / 1540	4016TAG	PI734E	16	205	5400	2650	2650	13250
HF1460P	1825 / 2000	1460 / 1600	4016TAG1A	PI734E	16	206	5400	2650	2650	15500
HF1640P	2050 / 2250	1640 / 1800	4016TAG2A	PI734F	16	209	5400	2650	2650	18000
