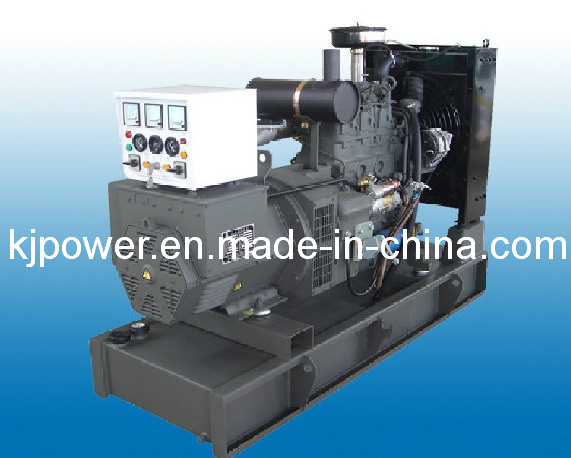

30kVA Deutz Diesel Generator with Silent Canpoy

Name: 30kVA Deutz Diesel Generator with Silent Canpoy
Brand: aboutgenerator.com
SKU: 714162765
Availability: InStock
Rating: 4.3 (105 reviews)

Price:	US $ 6000-7000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Anhui Kaijie Power Technology Co., Ltd.

Showroom Product Company Profile

Diesel Generator Specifications: Diesel generator set, , generator set, diesel generator, generator, silent generator, soundproof / weatherproof canopy, genset, diesel genset

50Hz Deutz generator
1) Deutz Top Brand Quality
2) ATS, AMF, Synchronization Optional
3) ISO approved supplier
4) Competitive Price with High Quality
5) Coupled to Stanford/Leroy Somer/Kaijie alternator

Supply Scope of Kaijie Deutz generator:
1. Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Kaijie sales.
2. Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga, Kaijie and Marathon for Option)
3. With 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4. With Chint Breaker
5. Complete Operation/Maintenance Manuals for Genset/Engine/Alternator, Genset testing report
6. Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.

Genset
Model

Prime
Power

Standby
Power

Engine Model

Type

Cylinder

Bore×Stroke

Aspiration

Disp.

Alternator

Dimension

Weight

KVA/KW

KaiJie

Stamford

L×W×H(mm)

KJD18

15/12

16.5/13

F2L912

In line,
4-stroke,
Air cooled

100×120

Natural

1.88

K-TFW12

PI044G

1350×750×1100

490

KJ-D28

25/20

27.5/22

F3L912

100×120

Natural

2.828

K-TFW20

PI144E

1650×750×1100

560

KJ-D33

30/24

33/26.4

D226B-3D

In line,
direct injection,
4-stroke,
water cooled

105×120

Natural

3.12

K-TFW24

PI144G

1650×700×1200

700

KJ-D55

50/40

55/44

TD226B-3D

105×120

Turbocharged

3.12

K-TFW40

UCI224D

1650×700×1200

750

KJ-D66

60/48

66/52.8

TD226B-4D

105×120

Turbocharged

4.16

K-TFW50

UCI224E

1900×700×1550

925

KJ-D110

100/80

110/88

TD226B-6D

105×120

Turbocharged

6.23

K-TFW80

UCI274C

2300×900×1600

1400

KJ-D140

125/100

138/110

TBD226B-6D

105×120

Turbocharged

6.23

K-TFW100

UCI274D

2470×900×1650

1550

KJ-D160

150/120

165/132

TBD226B-6D5

105×120

Turbocharged

6.23

KTFW120

UCI274E

2500×900×1650

1600

Prod Model:	TD226B-3D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50Hz, 60Hz for Option
Rated Voltage:	400/230V, Various Voltage Available
Controller:	Smartgen 6110 (Deepsea for Option)
Function Option:	ATS, AMS, Synchronization, High Voltage, etc
Generator Type:	Open Type/Silent Type /Container Type/Trailer Type
Quality Standard:	ISO9001
Alternator:	Kaijie (Leroy Somer, Stamford for Option)
Export Market:	Globally
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Anhui Kaijie PowerTechnology Co., Ltd. is a professional manufacturer, specializing in production, design, sales, installation, maintenance and service of generator sets with CUMMINS, PERKINS, DEUTZ, Volvo, MTU, DOOSAN, Quanchai, Shangcai, Weichai, Yuchai, etc. Series world famous diesel engine and STAMFORD, LEROY SOMER, MARATHON, KAIJIE series AC alternators. Kaijie series generator set power range is from 10kVA-2500kVA. We believe that it is our assurance of quality and exceptional communication skills in generation set field as well as our competitive prices and professional service that will always mean your best choice. Comply strictly with ISO9001: 2008 Quality System, We always maintain the high quality of transmission and the standard of reliability, safety, durability as well as economy and environment-friendliness. And has formed a completed pre-sale, sale and after-sale service system. Win customers with quality; Stand in the market with credit; Redound upon society with value; Call on innovation and humanism, try our best to serve customers base on novel design and integrated service! Customers' satisfication, our traget!
