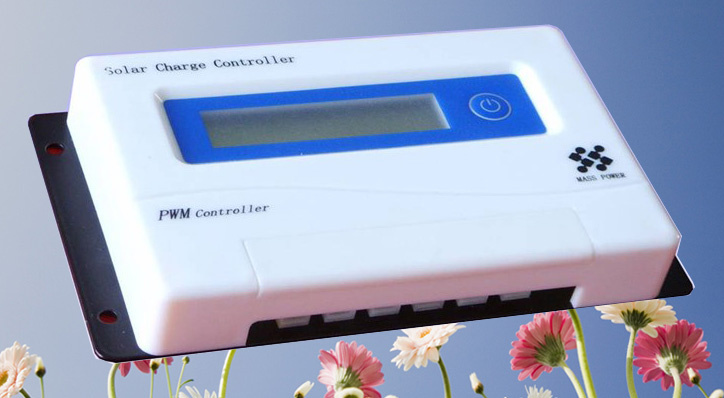

Home Generator Products 30A LCD Display Solar Power Charge Controller Regulator

30A LCD Display Solar Power Charge Controller Regulator

30A LCD Display Solar Power Charge Controller Regulator
Price: US $ 30.00/Piece
Trade Terms: FOB Shanghai
Min Order: 10/Piece
Solar Charge Controller is battery charger that can charge batteries by the power from the solar panels. The charge controller is intelligent for charging batteries, using MCU and professional software to control the step of charging, can prolong the batteries' life.

It has full self protection, protection of overload, short circuit, reverse connection, over charging and over discharging etc.

This model controller is 12V/24 Battery Auto-Sensing. When the Battery is connected to the Charge controller, the controller will detect the voltage of the battery first, then it will decide how to charge the battery connected.

Control Method: Charge for the PWM pulse width modulation, the control point voltage for different discharge rates of intelligent compensation amendment.
Technical Data
Rated  Cable    Charging  Current 30A
Rated Load Current 30A
System Voltage 12V 24V
Overload, Short Circuit Protection Yes
No load current ≤ 20 mA
Charging Circuit Voltage Drop Not more than 0.26V
Discharging Circuit Voltage Drop Not more than 0.15V
DC Charge Voltage 14.4V 28.8V
Float Charging 13.7V 27.4V
Temperature Compensation -5mv/ /2V
Automatic Disconnection Output Voltage 10.5V 21V
Inverter Weight 1.1 lb
Dimensions (W x H x D) 7.8 x 3.9 x 1.6 in.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
We offer 75w 150w 300w 500w 600w 800w 1000w 1200w 1500w 2000w 2500w 3000w 4000w 5000w 6000w pure sine wave power inverters, modified sine wave power inverters, charge controller, grid tie power inverter for solar power and wind power.
