BNG 0.3kW - 1.5kW
High Frequency Integrated Off-Grid Solar Controller Inverter

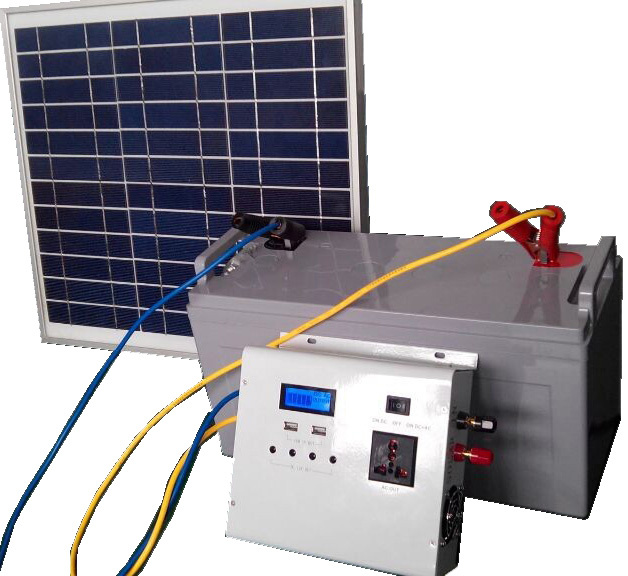

BNG series solar inverter/controller is a classic modified sine wave solar generator which is consists of solar controller and solar inverter.
Solar controller is an important part of solar power system. It could intelligently control and protect system charge, discharge and loading status. Its quality and performance directly affects the reliability of the solar power system, especially the lifespan of the battery. Overcharge and over discharge could cause damage to the battery or even cause fire.
Solar off-grid inverter converts DC power from solar panels into AC. BNG adopts high frequency topology with unique SMT and modularized artwork design. Utilization of maximum power from solar panels by BNG reduces end-user cost and pay-back period of the investment.
Salient Features
Modified sine wave output
Intelligent inbuilt solar charge controller and battery management system
Advanced microprocessor control with user friendly operation interface
Real short circuit protection with absolute long time use
Dual USB output with max. 1.2A charging current, support mobile phone charging of iPhone, iPad, and other mobile phones
Max. 92-97% high efficiency with strong loading capability
Unique SMT + modular design with better system reliability
Full protections, such as input low voltage, overload, over current, high voltage, short circuit, and TVS thunder protections, etc
|
MODEL |
BNG 300 |
BNG 500 |
BNG 1000 |
BNG 1200 |
BNG 1500 |
|
Power rating |
300W |
500W |
1000W |
1200W |
1500W |
|
Battery voltage |
12/24Vdc |
12/24/48Vdc |
|
Working mode |
PV prior or AC prior optional |
|
PV INPUT |
|
Input max. voltage |
21V |
|
Rated power |
250Wp |
500Wp |
|
Max. charge current |
20A |
|
Max. transfer efficiency |
90 - 96% (DC to AC transfer efficiency) |
|
MPPT function |
User option |
|
AC INPUT |
|
Input voltage range |
165-275Vac |
|
Input frequency range |
50/60Hz |
|
Charge current |
20A |
40A |
|
BATTERY |
|
Over charge protective voltage |
14.2Vdc |
|
Over charge recovery voltage |
13.8Vdc |
|
Constant charge voltage |
13.5Vdc |
|
Over discharge alarm voltage |
10.2Vdc |
|
Battery charge mode |
PWM, 8A direct charge, turns into float charge when battery capacity reaches 90% |
|
AC OUTPUT |
|
Output voltage range |
100/110/120/220Vac ±3% |
|
Output frequency |
50/60Hz ±0.5Hz |
|
Output waveform |
Pure sine wave |
|
Overload capacity |
overload 120% or short circuit automatically shut off the inverter, 1 seconds after automatic restart the inverter |
|
Efficiency |
92% - 97% at linear load |
|
No load current |
<8W |
|
Power factor (cosØ) |
1 |
|
No load off (optional) |
Load < 5% after 1 minute, transfer to bypass mode |
|
Short circuit |
System shut down automatically |
|
Total harmonic current distortion (THD) |
< 3% for linear load, < 5% for nonlinear load, all of them in full load condition |
|
Dynamic response time |
5ms typical value, max. 8ms |
|
SYSTEM FEATURES |
|
Type of cooling |
Temperature control forced ventilation |
|
Start speed of cooling fan |
65°C |
|
Voltage drop between solar module and battery |
≤0.15V |
|
LED indicator |
solar panel (green), battery normal (yellow), battery failure(red), power start (green/yellow), inverter normal (yellow), line normal (green) |
|
Protection function |
output overload and short circuit, battery low voltage and over charging protection, solar panel Polarity reverse connect protection, overheating protection, lightning protection |
|
Alarm |
sounding every 25 seconds at battery low voltage |
|
ENVIRONMENTAL |
|
Electric net control |
according to UL1741, According to IEEE-2000 standard |
|
Electromagnetism |
according to EN61000-3-2 |
|
Utility grid test |
according to DIN VDE 126 |
|
Operating temperature |
-10°C to +60°C |
|
Storage temperature |
-30°C to +70°C |
|
Humidity |
0-95% (non-condensing) |
|
Altitude |
2000m (Every 100m increase de-rates 1%) |
|
Noise level |
< 10dBA |
|
Enclosure protection rating |
IP55 |
|
Communication port (optional) |
RS232/RS485/USB/SNMP |
|
PHYSICAL |
|
Dimensions (HxWxD) (mm) |
200x100x50 |
240x160x70 |
320x160x70 |
450x250x113 |
|
Weight (kg) |
0.6 |
1 |
2.8 |
4.5 |
4.9 |
