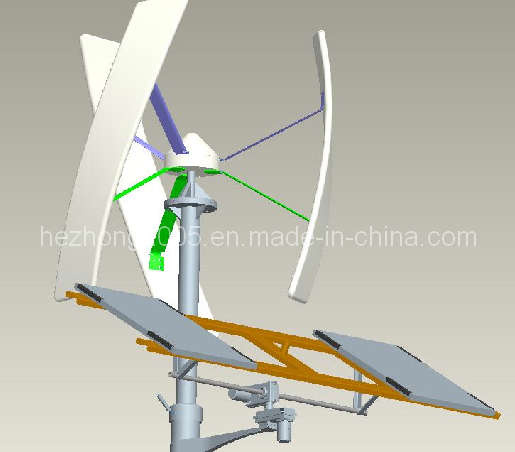

The HFGD02-300W/C, HFGD04-500W/C, HFGD06-1000W/C, vertical axis wind solar hybrid generator set could be used for:
1. Lighting for town street, coast, riverfront and lakefront.
2. Lighting for port, station, airport and public square.
3. Lighting and domestic consumption for island, pasture, desert, grassland, mountain area, barracks and remote village.
4. Nighttime lighting for bridge, railway and public road.
5. Uninterrupted power supply for small communication relay station, mountain.
|
Blade number |
3 |
|
Blade Material |
Glass fiber |
|
Generator type |
Permanent Magnet Generator |
|
Wind round of direct |
1.3m |
|
Wind coefficient(CP) |
0.43 |
|
Rated voltage |
28DC |
|
Rated power |
300W |
|
Maximum power |
450W |
|
Start wind speed |
2.5 m/s |
|
Cut speed |
3m-3.5/s |
|
Rated wind speed |
8m/s |
|
Wind speed automatic brake |
m/s,Average wind speed 30.6 |
|
Rated speed |
300rpm |
|
Speed ratio |
0.39 |
|
Brake Protection System |
Mechanical Automatic constant speed device / Manual |
|
Product life |
15 years |
|
Shelf Life |
2 years |
|
Net weight |
11kg |
|
Packing |
Carton and foam. |
|
Package Size |
Blade:1400mm*350*mm*350mm,Generator:300mm*300mm*280mm |
|
Ambient air temperature |
-30~+40C |
|
Country of Origin |
China |
|
Annex |
Wind light complementary inverter |
|
Usage |
Configured to use Wind light complementary inverter
Output Voltage 111/120/220/230/240VAC |
|
Solar tracking system specifications |
Rated voltage:12V~38V |
|
Tracker motor drive specifications |
Rated voltage:24V Rated Current:1.5A |
|
Solar cells specifications |
Rated voltage:24V Rated power:50W |
