Model Number: LFS-MSP300W solar home power system
Product Characteristic:
300W solar power system is suitable for the families located in powerless area. It is Portable character and good choice power system for home/outdoor.
It is able to converter the solar power into DC12V electric power, which will then be stored into the storage battery. The DC 12V electric power can also be converted to AC 220 or 110V electric power when needed. Then to power the electric equipments in your house, such as illuminating lights, TV, Audio, digital products, fax machine and computer, etc.
The energy storage of MSP300 solar power system is about 540Wh, that means it can basically ensure home illuminating and TV working for about 2 days after the battery had been full charged.
When 300W solar power system is being charged, it can prevent overcharge, provide voltage and temperature compensation when it stop charging, and DC output low voltage cutting down functions, etc. When solar power system is inverting, it can provide overload protection, short-circuit protection, and temperature protection, etc.
Protecting Functions:
Short-circuit protection
Overload protection
Overheating protection
Prevent overcharge
Prevent over-discharge
Prevent reverse charge
Protect function of revised connect between storage battery and solar panel

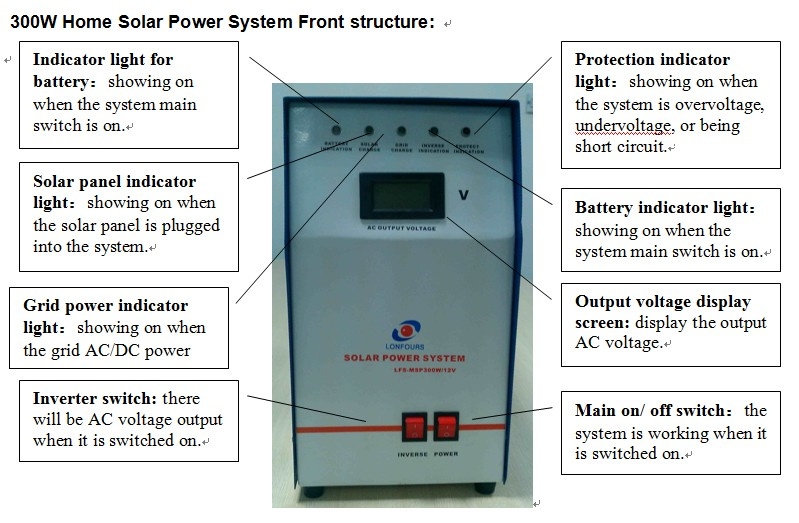

Indicator light for LED lamp's charging and discharging
Temperature auto-compensation
Warnings:
The AC output ports of this system could endanger people's life, DO NOT touch the output terminal when thesystem is turned on. Meanwhile, non-professionals are not allowed to open the system case.
Before replacing fuse, please make sure both the product main power switch and the inverter switch of front panel are all turned off, and pull out / cut off grid AC power charging cable.
Specification:
|
components |
Specifications |
Remarks |
|
Solar panel |
Type |
Monocrystalline |
|
|
Polycrystalline |
|
Power |
100Wp/18V |
Can Supply Maximum solar panel is 12V/180Wp |
|
Controller |
Lonfours Self-made |
10A |
|
|
Inverter |
AC110/220V/50~60Hz |
300W/500W |
Power frequency inverter with extremely high reliability. |
|
Battery |
Type |
Rechargeable Lead acid battery |
Maximum built-in storage battery is 100AH |
|
capacity/Voltage |
100Ah /12V |
|
Input/output Port |
Solar panel input |
Positive/negative terminal |
|
|
grid power input |
DC12V/5A |
Optional |
|
DC12V output |
Standard 5.5/2.1 socket |
|
|
DC output fuse |
2A |
Unrecoverable melting cut fuse |
|
AC output socket |
110V / 220V |
|
|
AC output fuse |
2A |
Unrecoverable melting cut fuse |
|
