Home Generator Products (300W-8kw) Incline Jet Permanent Magnet Water Turbine Generator

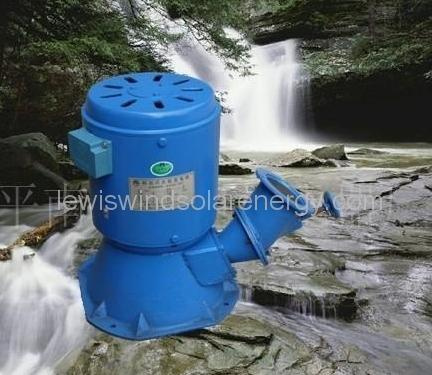

(300W-8kw) Incline Jet Permanent Magnet Water Turbine Generator

(300W-8kw) Incline Jet Permanent Magnet Water Turbine Generator
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Main specifications and technical parameters:
Model type: Incline jet permanent magnet water turbine generator
Power: 300KW_8KW Voltage: 110V\220V\380V
Rquency: 50Hz 60Hz
Water head: 6_60 meters
Flow: 0.006_0.045m³ /sec
Rotating speed: Four poles 1, 500 rpm; Six poles 1, 000 rpm; Eight poles 750 rpm

Structure and working principle of the unit: Incline jet water turbine power generator is comprised of the water turbine and the generator sharing the same coaxial line. The water turbine is comprised of propeller, main shaft, frame, guiding pipe, needle valve, bearing, water seal and cover plate etc. During operation, water flows through the jet nozzle via the guiding pipe under action of water head and forms high pressure jet flow hitting the propeller, which will then rotate and thus drive the generator via the main shaft.

Characteristics of the generator: The electric machine adopts efficient permanent magnet, thus it is provided with small volume and high efficiency. There are no wearing parts such as carbon brushes, silicon diodes and capacitors etc., thus it is provided with characteristics of few failures, easy and convenient maintenance. Working together with a regulator, the generator supplies stable voltage and is very suitable to be used by farmers in remote mountain areas.
Parameter table:
Modelpower(K W)fall head(M)flow(M 3 /s)speed(r/m)driveway
Incline jet permanent magnet water turbine generator0.36-120.0061000/1500in/direct
0.56-150.0071000/1500in/direct
0.68-200.0081000/1500in/direct
1.010-200.0121000/1500in/direct
1.515-200.0151000/1500in/direct
2.015-250.0201000/1500in/direct
3.015-300.0251000/1500in/direct
5.020-500.0351000/1500in/direct
8.025-600.0451000/1500in/direct
Prod Model: XJ-L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Turbine Type: Inclined Jet Hydro Turbine
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
