Specifications:
*power: 300W-2000W
* AC input: 140-275V
*built in controller
*solar panel charging

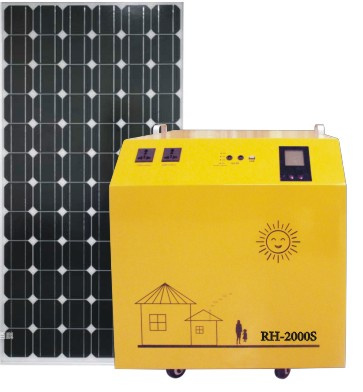

* solar generator solar power generator
*Pure sinewave generator
*CPU control technology
*with battery charger
*Wide input voltage range
1. Features
1. Pure sinewave output, can be used withdifferent domestic appliance like TV, refrogerator, fan, air conditioner. Cooker, mirco-wave oven, etc.
2. Superior performance from CPU control technology.
3. Wide range of input voltage, accruate output, AVR function.
4. Inner-equipped protection for over-load, short-circuit, over-voltage, low-voltage, over-heating, etc
5. Easy to check with inverter with LED indication that can be up grade to LCD.
6. Intelligent battery management with protection against over-charged and over-discharged etc.
7. Battery connect inside
Model RH-500S RH-1000 RH-1500S RH-2000 RH-3000S
Rate power 300W 700W 1000W 1500W 1800W
AC Input voltage (140-275)VAC
AC Input frequency 45~65HZ
Solar input voltage 18VDC 18VDC 36VDC 36VDC 54VDC/72VDC
Solar input current 10A 20A 20A 30A 20A
Output voltage 220(± 3%)VAC (battery mode)
Frequency 50(± 0.2)HZ (battery mode)
Output wave form pure sine wave
Battery form ARLA
Out connect battery voltage 12VDC 24VDC 36VDC/48VDC
Transform time <8ms
Over load capacity 110%~130% maintain after 30s cut off output
Operation environment temperature 0~40° C
Humidity 0%~95%
Shenzhen San Denon Photoelectric Technology Co., Ltd is a new comprehensive company, which fully gthers R&D, production and sale.
We are a professional manufacturer of making high-low frequency transformer, Power inverter (include vehicle inverter, solar energy inverter, illuminating inverter etc...), charger, UPS power supply, solar power system and solar panel etc. Our makets are promising, as far as Middle East, East Asia, Southeast Asia, Africa and the domestic greatly parts of regions. Looking forward to cooperate with you.
