| Price: | US $ 320/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
As we known, get the power from government grid, it need to construct the cables, it costs very high, so it will increase the difficulty to setting monitoring.And wind solar monitoring system can solve this problem, we can supply different system for different power requirement, individually supply power to monitoring system.

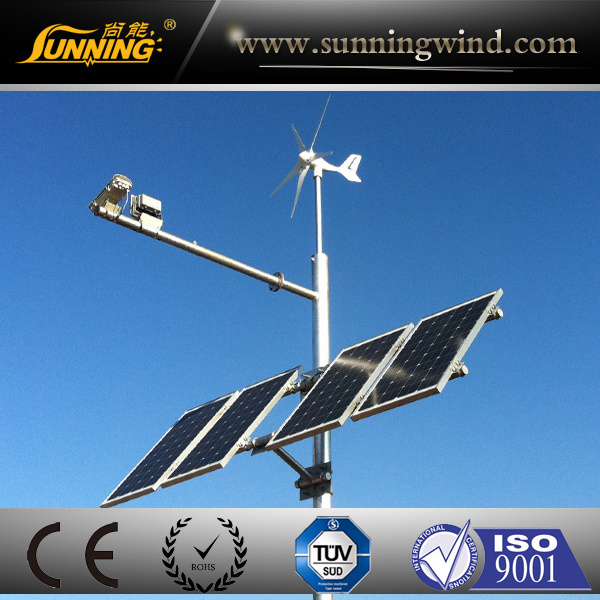

Wind solar monitoring system is combined with wind turbine, solar panel, controller, cables and some other components. In dark or rainy, the wind turbine could generate the power, and the solar panel could generate in sunny, when there is wind and sunshine, both of them could generate power, it will much better than use one of them only.
Wind solar hybrid for monitoring characteristic:
Total use the wind and solar panel to generate power, do not need the government power.
Saved the cost of building the base station , connecting the cables.
With the advantage of generating power day and night, the system is more stable.
Reducing the maintenance fee
Supplying power alone, when there is nature hazard, will not influence the power supply.
Low voltage power supply, safety and easy maintenance.
| Wind Turbine Technical Specifications | |||
| Rated Capacity | 300 watts at 28 mph (12.5 m/s) | ||
| Max Capacity | 350watts | ||
| Rotor Diameter | 1.21 m | ||
| Weight | 6.2 kg | ||
| Shipping Dimensions | 770x 410x 200 mm (8.3 kg) | ||
| Mount | 1.5 in schedule 40 1.9 in (48 mm) OD pipe | ||
| Start-Up Wind Speed | 2.0 ( m/s) | ||
| Cut-In Wind Speed | 2.5(m/s) | ||
| Voltage | 12, 24 VDC | ||
| Turbine Controller | Microprocessor-based smart internal regulator with Maximum Power Point Tracking | ||
| Body | Cast aluminum | ||
| Blades | 5 PC Nylon Fiber | ||
| Overspeed Protection | Electronic torque control | ||
| Kilowatt Hours per Month | 30KWh/mo at 3.2 m/s | ||
| Survival Wind Speed | 35m/s | ||
| Warranty | 3 year limited warranty | ||
Sunning Factory:
I am Grace Any information you need, please contact with me.
Your satisfaction is my biggest motivation.
Phone: 0086 13925182280
Wap Website:www.sunningwind.com
| Prod Model: | MINI |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Outpower: | 300W |
| Max Outpower: | 350W |
| Rotor Diameter: | 1.21m |
| Start-up Wind Speed: | 2.0 ( M/S) |
| Cut-in Wind Speed: | 2.5(M/S) |
| Voltage: | 12, 24 VDC |
| Kilowatt Hours Per Month: | 30 Kwh/Mo at 3.2 M/S |
| Weight: | 7.1 Kg |
| Certificate: | CE RoHS ISO |
| Number Of Blade: | Multiple-Blade |
| Rotating Shaft: | Horizontal |
| Stress Way Of Blade: | Resistance |
