Home Generator Products 300kw Gas Generator Set (10-500kw) with CHP

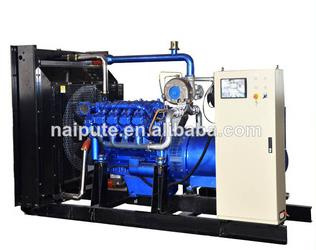

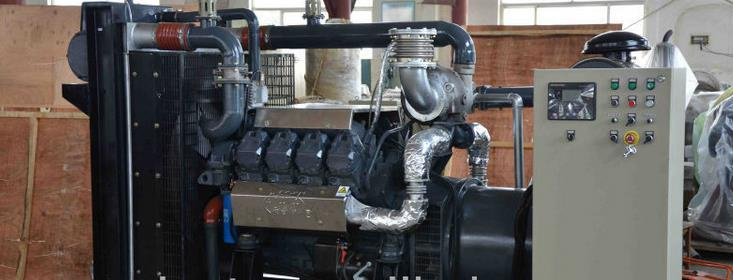

300kw Gas Generator Set (10-500kw) with CHP

300kw Gas Generator Set (10-500kw) with CHP
Price: US $ 50000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
    Function :

1. Adopt Genset controller with LCD display, taking microprocessor as the core.
2. Adopt ATS( automatic transfer switch) to achieve the automatic transfer from the generated electricity to grid electricity
3. The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated electricity /grid electricity
4. The monitor and display on the genset's water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts
5. Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc.

Optional devices :
CHP device, Soundproof cabinet, automatic grid parallel connection device, emergency cooling system etc

Application area:

Natural gas generator : Pipeline natural gas, liquid natural gas (LNG),coal mine industry, crude oil industry
Biogas generator : dairy and poultry farm, food processing ( starch, alcohol, palm oil ),industrial waste, Bio garbage processing, landfill etc.
LPG generator : Crude oil industry
Biomass generator: agriculture straw, wood chips etc

Generating set general Model 300GFT
Structure integral
Exciting method AVR Brushless
Rated Power (kW) 300
Rated Current(A) 540
Rated Voltage(V) 400/230, 3 phase
Rated Frequency(Hz) 50
Rated Power Factor 0.8 LAG
Overall dimension (L x W x H)(mm) 3050X1550X1950
Net weight (kg) 2850
Gas Engine Model ND159D32TL
Type V type,4-stroke, electric control ignition, pre-mixed lean burn,
turbocharged after cooled
Cylinder number 8
Bore x Stroke (mm) 132X145
Total displacement (L) 15.87
Rated Power (kW) 320
Rated Speed (r/min) 1500
Fuel type Natural gas
Control panel NPT Brand 300 KZY LCD display
Circuit Breaker type ATS/SKT1-630
Control module Smartgen HGM6320
Operation language English
Alternator Model XN4FS
Brand MBH( Germany)
Shaft Single bearing
Rated Power (kW) 300
Rating(kVA) 375
Enclosure protection IP23
Efficiency(%) 93

Prod Model: 300GFT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
2600X1250X1750: Water Cooled
Gas Source: Gas
Shandong Weituo Group Co., Ltd. Were established in the early 1950' s and have more than 60 years of machinery production experience. Our product ranges from diesel engines, gas engine, generator sets, tractors from 17HP-120HP, farming implements and so on. We are also is the sole agent of large power tractor from 350--600HP of Germany DTU brand in Asia area.

We have 7 scientific research centers where our products are designed. In our production centers we use specialized casting, machining, pressing and assembly machines, 12 production lines and more than 1, 000 other units of equipment. This collection helps us to achieve a capacity of 200000 engines, 150000 generator sets and 200, 000 tractors annually.

Our tractors include TS series from 17HP to 28HP, TY series from 18HP to 30HP, greenhouse and gardon series compact tractor from 18HP to 30HP, AOYE series from 35HP to 60HP, SWT series from 70HP to 120HP and all kinds of farm implements. We have more than 60 years of tractor manufacturing history and have rich experiences in manufacturing and exporting. Our tractors are famous for its low price and steady propety and long life.

Our engines include three series which feature more than 300 varieties with power ratings varying from 20 to 660kW. You can select from diesel, gas or other fuel-powered options. We have turbo-charged models, with or without a cooler, altiplano models and models that use European technology. The latter reaches new standards in terms of dynamics, durability, low emissions and economical savings. These engines are used in agricultural equipemnt, generator set, ship, pump, air compressor and construction machinery and so on.

Our generator sets series include internal combustion engines and dynamotors that range from 5 to 1, 000KW. We offer automated units, mobile power stations, gas generator sets and more. The noise level for low-noise gensets can reach 60dB at 1M. Our generators are used in industry, standby power in hospital, malls and hotels, telecom

To fasten the company's development, SWT is building "Tractor Industrial Garden"(which occupies 100, 000 square meters in Weifang Economy and Technical Exploiting District) and "Power Industrial Garden"(which occupies 140, 000 square meters in Weifang Fangzi District). Of which Power Industrial Garden will get moving qualification at the middle of 2009. Tractor Industrial Garden mainly produces big and middle series tractors, TY series tractors and various implements. And Power Industrial Garden mainly produces diesel engine, gas engine, generator sets and power equipment parts, etc.

When the two Industrial Gardens are putting into production, SWT will develop into one of the largest enterprise, integrated with products such as tractors, engines, generator sets, various types of machinery parts and components casting process.
