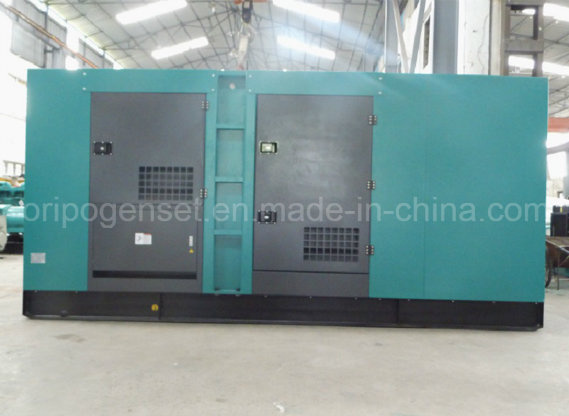

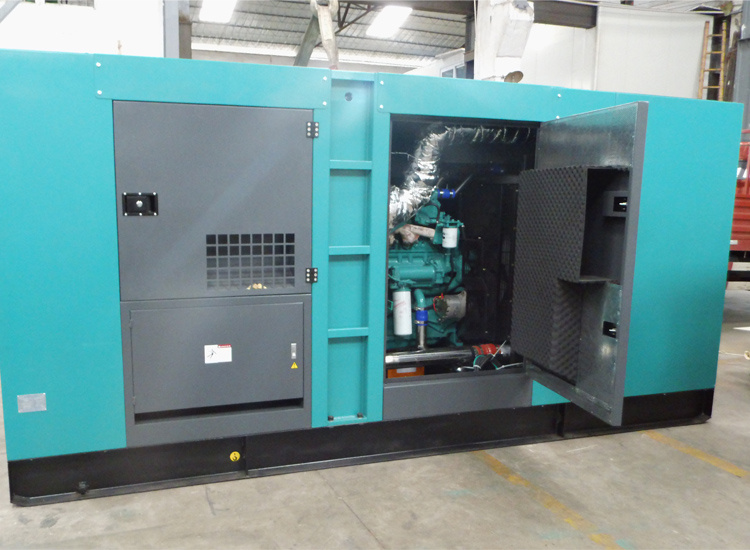

Product Description1. Cummins Power Diesel Generator
2. Prime power: 375kva/300kw
3. Frequency: 50Hz or 60Hz
4. Market: Nigeria, Ghana, Uganda, Kenya, Sudan, South Africa.
5. Cummins Engine
6. Leateck alternator.
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
| KVA | KW | KVA | KW |
| OCL-412 | 412 | 330 | 375 | 300 | NTAA855-G7 | LTG314G1 | 6110 |
230/400VAC,50Hz,0.8PF (lag),Three phase four wire
Generator set specifications| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 207(79.43) |
| Starting Battery Capacity ,A/hrhhr | 200*2 |
| Total Coolant Capacity ,L | 63.9 |
| Fuel Capacity (base tank),L | N/A |
Engine Data| Model | NTAA855-G7 |
| Type | In-line 6 Cylinder,4 Cycle |
| Displacement ,L | 14 |
| Compression Ration | 14.0:1 |
| Aspiration | Turbo, Air / Air Cooling |
| Fuel System | PT type Fuel Pump,EFC Electronic Governor |
| Bore*Stroke(mm) | 140*152 |
| Rated Speed ,rpm | 1500 |
| Governor Type | Electronic |
| Starting Voltage | 24V ,Negative ground |
| Battery Charging System | 24V 35A |
| Lubricant Capacity ,L | 38.6 |
| Coolant Capacity, L | 63.9 |
Alternator Data| Protection Class | IP21 |
| Insulation Class | Class H |
| Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
| Excitation Type | Brushless & Self-excited |
| Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
| Telephone Interference(TIF) | <50 |
| Telephone Interference(THF) | <2% |
Exhaust System| Exhaust air flow | 1150 L/S |
| Exhaust Temperature | 451ºC |
| Max Back Pressure | 10kPa |
Air Intake System
| Max Intake Restriction | 6.22kPa |
| Burning Capacity | 510 L/S |
| Air Flow | 8180 L/S |
Lubricant System| Total Lubricant Capacity | 38.6L |
| Lubricant Consumption | ≤0.24L/h |
| Engine Oil Tank Capacity | 36L |
| Oil Pressure at Rated Speed | 241-345kPa |
Warranty: 12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance: 1)Before-sale Service: we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply: We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service
WHY CHOOSE USReason 1:Reliable Manufacturer:As a specialized Cummins Silent diesel generator manufacturer, its high quality diesel generators have been working well in many fields including railways, oil fields, Schools, hospitals, industries, tall buildings, sea ports and military bases etc. Meanwhile we attach importance to environment protection persistently, and also is one of the few companies which strictly follow ISO14001 Environmental Management System in diesel generators manufacturing industry. Nowadays, with great enthusiasm and persistence efforts, all of us are working toward the goal of being one leading enterprise in the international linesReason 2:High quality:As a specialized diesel generator manufacturer, we have a quality control and inspection system to monitor the whole process from raw materials to delivery, only raw materials that passed our sophisticated tests can be put into production.Before products departure, each diesel generator must be tested with no load, with load, overload.Our quality system is even stricter than both domestic and abroad standards:GB/T2820, GB1105, YD/T502, ISO8525-3, ISO3046, ISO8525.Reason 3:Low cost:As a specialized diesel generator manufacturer, we have good long-term relationship with our reliable Engine & Alternator partner.Meanwhile, most parts of diesel generator are manufactured by ourselves, we design and manufacture control system, soundproof canopy, trailer etc according to our clients' needs.Reason 4:After-sell service:1.We are available for a 24-hour Tel or Email service, you can leave us a message whenever you want.2.We provide one-year or 1000 hours running Guarantee for all the products we supplied.3.We would like to send our technicians abroad for installing the generator sets if required.Adhering to the motto of "24hrs Power Supply", we will always stay with your needs.
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
