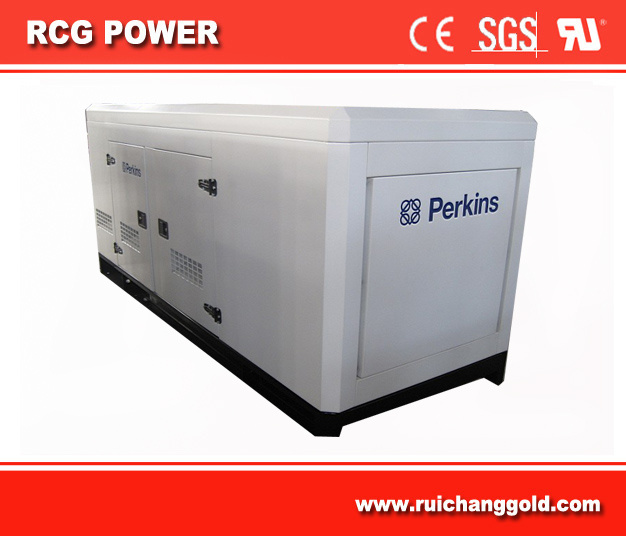

300kVA/240kw soundproof type Generator Set powered by Perkings
Specification for diesel generator set
Power from 7.2KW to 1600KW
Engine: Perkins imported from UK
Frequency: 50Hz( 60Hz is also available)
Speed: 1500rpm/ 1800rpm
Voltage: 400V/230V
Alternator: Stamford or Marathon and others
Certificate: CE and ISO
Silent canopy is optional for Perkins diesel generator set.
1). Engine
Perkins series diesel generator adopt the UK origin Perkins engine with wide power range, excellent reliability and service life, low operation cost and fast speed return cycle. The Perkins series generators are used widely in the communication, industry, Outdoor project, mining and ministry fields. The 400, 100, 1300 and 4000 series diesel engines always gain the high reputation from users around world
2). Alternator
Original Stamford & Marathon Alternator with brushless self-excited, AVR, H Class Insulation, IP23 Protection.
3). Control System
Adopt the top brand Deepsea controller( DSE510, DSE5210, DSE5320, DSE5220 etc) and ComAP Controllers( MRS-10, MRS-16. MRS-15 etc) with manual, automatic & remotely operation for the users.
4). Test & Commissioning
Each generator has been got through 2 hous load test for running 0%, 25%, 50%, 75%, 100% and one hours overload testing
5). Standard Accessories:
Standard radiator mounted on skid, common steel frame, circuit breaker, damper, exhaust pipe, battery, shock pad, operation manual, silencer, test report and certificate
6). Warranty
All equipment is warranted for a period of 1000 hours or 12 months fro mthe date of commissioning.
7). Certificate: ISO9001: 2000, BS4999, BS5000, BS5514, CE, EPA, ISO4001: 2004
8). Package: Standard exporting Plywood Case
| MODEL | R-P300 |
| PRIME POWER (KVA/KW) | 300/240 |
| STANDBY POWER(KVA/KW) | 110/240 |
| Rated voltage(V) | 400/230 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase 4 wires |
| ENGINE MANUFACTURER | PERKINS |
| Model | 1104C-44TAG2 |
| Rated Power(kW) | 99.5 |
| No. of cylinders & configuration | 4 vertical in-Line |
| Method of operation | 4-stroke |
| Speed regulation | Mechanically governor |
| Starting system | DC 12V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 4.41 |
| Compression ratio | 18.2:1 |
| Bore×Stroke(mm) | 105×127 |
| 100% Load fuel consumption(L/h) | ≤22.6 |
| ALTERNATOR MANUFACTURER | STAMFORD |
| Number of Phase | 3 |
| Connection Type | 3Phase and 4Wires |
| Number of Bearing | 1 |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Terminal | 12 |
| Winding/ Pitch | 100% Copper 2/3 Pitch |
| Cooling Fan | Cast alloy aluminum |
| Exciter Type | Brushless, Self-Exciting |
| Insulation Class, Temperature Rise | H/H |
| Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
| Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
| Voltage Regulation, Steady State | ≤±1% |
| Sustained Short-Circuit Current | 300%(3 in):10s |
| CONTROL SYSTEM | DSE SERIES
|
