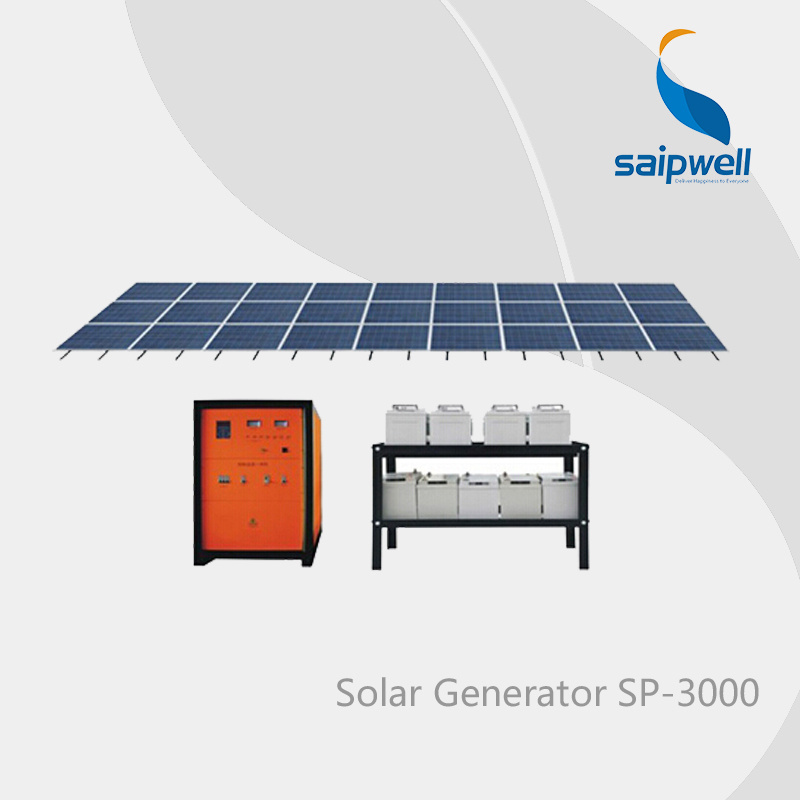

Saipwell 3000VA High Power Solar System (SP-3000H)
Specifications
Powerful Home Solar Power Dynamotor SP-3000H
1. CE & RoSH
2. Simple structure
3. Energy saving
4. Multi-protection settings
Introduction:
This system equips with solar panel and battery. Under the condition of fully charged, it can fully supply power for home power system or offiec use.
Features:
1. Simple structure, easy maintenance
2. Output for pure sine wave
3. Micro-computer chip controller, PWM regulator, automatic temperature compensation
4. Electronic insurance tube is replaced of fuse, surge and over-current protection
5. Protection is wide, over-voltage, under-voltage, overload, short-circuit protection, etc
6. High performance, especially used at home
7. Double Charge fuction: Solar and city power
8. Emergency power for home or Office, remote areas, communications, etc
FAQ
Question: What can be included for this system?
Answer:
This system includes: Solar panels, inverter, controller, battery, solar pv cable, bracket, and disconnectors.
Question: What's the advantage for this solar system?
Answer:
1. Steady operating
2. The most advantage: On grid energy backup(not means sell electricity, just backup)
3. CE Certified
4. Easy installation according to our instructions
5. Professional parts supply
Question: How to place and install them before we use?
Answer:
The system can be put on ground outside house, but must be kept away from water or spray. And the solar panels must be placed away from shadow, the less dust the better in the air. And the solar panel must be placed to a certain angle(20-45 angle) which will be faced directly to the sun
Question: How about the lifetime?
Answer:
The life time for solar panel is 25years, another parts is for 6-15years.
Package data:
PartSize (L*W*H mm) Weight(kg)
Power box 500*640*930 65
Solar panel 1200*850*1190 180
Solar panel bracket 2270*85*675 111
Battery 985*540*870 375
Battery bracket 2270*85*150 35
Solar on grid system: Solar panel+grid tie inverter
Solar off grid system: Solar panel+hybird inverter(controller, inverter)+battery
(other parts as PV array combiner, rack, cable can optional)
Contact Us
Tel: 0086-021-56026033-8052
Mobile: +86 15026900836
http://www.saipgroup.com/
We're Professonal, as always~
|
Technical data: |
|
|
|
|
|
Item No. |
SP-3000H |
|
Capacity |
3000VA |
|
System voltage |
110VDC |
|
Best output power everyday |
10134WH |
|
Inverter |
Output wave |
Pure sine wave |
|
Output voltage |
AC110/220V |
|
Output frequency |
50HZ/60HZ |
|
Output current |
10.9A(220V) / 21.8A(110V) |
|
Precision of output voltage |
± 3% |
|
Precision of output frequency |
± 0.1% |
|
False output wave of AC |
< 3% |
|
Overload ability |
120%, 30 seconds |
|
Invert efficiency |
> 85% |
|
Solar panel |
Pmax |
2700W |
|
Vmp |
157.5V |
|
Imp |
17.1A |
|
Battery |
Capacity |
108V300AH |
|
Package data: |
|
Part |
Size (L*W*H mm) |
Weight(kg) |
20' (pcs) |
40' (pcs) |
|
Power box |
500*640*930 |
65 |
10 |
26 |
|
Solar panel |
1200*850*1190 |
304 |
|
Solar panel bracket |
2270*85*675 |
169 |
|
Battery |
985*540*870 |
750 |
|
Battery bracket |
2270*85*150 |
65 |
