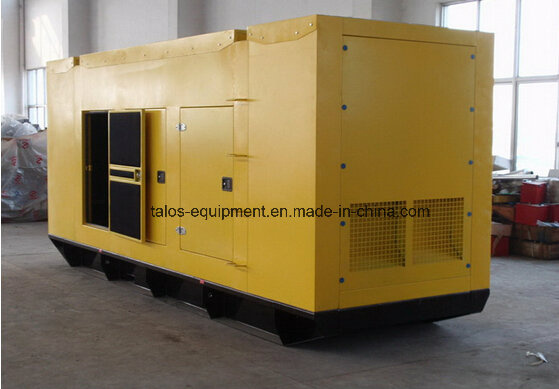

Home Generator Products 300 kVA Silent Cummins Diesel Generator (TD-300C)

300 kVA Silent Cummins Diesel Generator (TD-300C)

300 kVA Silent Cummins Diesel Generator (TD-300C)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T
Power Equipment Solutions
Call: 0086-515-8822 4365, 0086-139 6198 4528(David Bai)
http://www.TalosGenerators.com

Product Description

300 kva diesel silent generator, which is powered by Cummins engine. This generator is soundproof and waterproof. Good quality is feature of our generator.

We can produce voltage and frequency according to your demand.

ENGINE SPECIFICATIONS

Engine brand: Cummins.
Engine model: NTA855-G1A.
Type: Water-cooled, 4-stroke, turbocharged diesel engine.
Number of cylinder: 6
Bore x stroke: 125x147mm
Engine power: 291 kw
Compression ratio: 16.5 : 1
Fuel consumption: ≤ 208g/kw. h
Displacement: 10.8 L
Speed: 1500 rpm

ALTERNATOR SPECIFICATIONS
Brand: Stamford
Model: HCI444D
Available options for alternator: Leroy Somer, Marthon Alternator.

WARRANTY
One year.

CONTROL SYSTEMS

You can choose following control systems.

Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.

LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.

LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.

ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and
frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.

GenSet modelTD-300C
Continuous output240KW / 300KVA
Engine brand & modelCummins NTA855-G1A
TypeWater-cooled, 4-stroke, Turbocharged Engine
No. of cylinder6
Bore x Stroke                                         125x147mm
Engine power                                           291kw
Compression ratio16.5: 1
Fuel consumption≤ 208g/kw. h
Displacement                                           10.8L
Engine speed                                           1500rpm
Steady speed drop≤ 1%
Lubricant capacity34L
Coolant capacity9.4L Engine Only
Starting systemD. C. 24V electric start
Cooling wayPositive Water Cooling Cycle
Alternator brand & modelStamford HCI444D
Frequency                                                     50HZ
Voltage                                                             380/220V
No. of phases3
Excitationbrushless
Insulation classH
Power factor0.8
Protection gradeIP23
Altitude≤ 1000m
Voltage Regulation, Steady State≤ ± 1%
Control Panel - Standard equipped or LCD digital control module
Options: ATS, Base Fuel Tank

Prod Model: TD-300C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Td-300c
Rated Power: 240 Kw / 300 kVA
Engine Brand & Model: Cummins Nta855-G1a
Voltage: 380 / 220 V
Frequency: 50 Hz
Starting System: Electric Start
Certificate: CE
Type: Micro-Computer Control Automatic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Yancheng Talos Engine Equipment Co., Ltd., which does business of engine equipment. The products including products related to engine, such as generator, water pump, lawn mower, chain saw, snow blower, construction equipment, spare parts and etc.

From year of 2008 to 2015, our products have been servered millions of people European, Northern America, South America. Our team have many years' working experience in factory, thus we are professional of products.

The feature of our products: Durable, good quality, reasonable price.

Our products make you work easy!

Our products make you low cost of maintance!
